Neware CE-5008Q-20V30A Battery Testing System, ENCE5008Q20V30A

SKU: ENCE5008Q20V30A

Neware CE-5008Q-20V30A Battery Testing System, ENCE5008Q20V30A — Eight-channel Neware CE-5008Q tester rated at 20 V / 30 A and 600 W per channel, with four current ranges and ±0.02% F.S. specified accuracy.

Need help selecting a configuration? Request a competitive quote today!

Neware CE-5008Q-20V30A Battery Testing System, ENCE5008Q20V30A

Product Type: Multi-Range Battery Testing System
Brand: Neware
Part Number: ENCE5008Q20V30A

Product Introduction

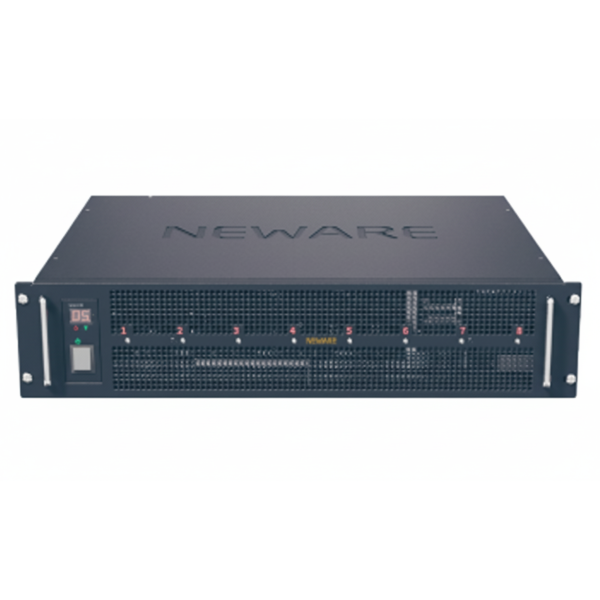

The Neware CE-5008Q-20V30A is an eight-channel, multi-range test platform positioned for high-capacity cells, small modules, and supercapacitors. Its 20 V / 30 A channels provide a bridge between cell-level cyclers and larger module-testing systems.

Key Features

• Eight channels — parallel testing for improved laboratory throughput
• 20 V / 30 A configuration — 600 W specified output per channel
• Four current ranges — supports measurements from 30 mA to 30 A
• ±0.02% F.S. accuracy — specified voltage and current accuracy
• Programmable test modes — CCC/CCD, CVC/CVD, CPC/CPD, CCCV, DCIR, and pulse simulation

Specification

ParameterSpecification
Part Number
  • ENCE5008Q20V30A
Power
  • AC380V±10%, three phase, 50/60Hz, 7000 W
Channel Numbers
  • 8 channels

Voltage Features

  • 2.5 V ~ 20V
  • Minimal discharge voltage: 2.5 V
  • Accuracy: ± 0.02% of F.S.
  • Stability: 0.02% of F.S.
Current Features
  • Range 1: 0.03 A, Range 2: 0.3 A, Range 3: 3A, Range 4: 30 A
  • Accuracy: ± 0.02% of F.S.
  • Stability: 0.02% of F.S.
  • Minimum Output Current: 3 mA
Output Power
  • 600 W/Channel
  • Stability: 0.05% of F.S.
Time
  • Current Response Time: ≤30 ms
  • Working Step Time: 1 ~ 65535 min/step
    Time format-00: 00: 00.000 (h、m、s、ms)
  • Frequency: 100 Hz
  • Data Record: Time Δt: (0.01s ~ 300s)
    Voltage ΔU: (20mV ~ 20V)
    Current ΔI: (30mA ~ 30A)
  • Data Export Format: Excel, Txt, Graph, PDF, CSV
Main Test Functions
  • Constant current charging/discharging (CCC/CCD)
  • Constant voltage charging/discharging (CVC/CVD)
  • Constant power charging/discharging (CPC/CPD)
  • Constant current constant voltage charging/discharging (CCCVC/CCCVD)
  • DCIR
  • Pulse Simulation Test
  • GITT
Clip Types
  • (1) Crocodile (Alligator) fixture



  • (2) Polymer fixture



    Applications

    High-capacity pouch-cell testing, small-module cycling, supercapacitor evaluation, DCIR measurement, and power characterization.

    References:

    S. Chen, et al., Critical Parameters for Evaluating Coin Cells and Pouch Cells of Rechargeable Li-Metal Batteries, Joule, 2019, 3, 1094-1105

    Y. Son, et al., Analysis of Differences in Electrochemical Performance Between Coin and Pouch Cells for Lithium-Ion Battery Applications, Energy Environmental Materials, 2024, 7, e12615.
