Neware CT-4008Q 5V50mA Battery Testing System, ENCT4008Q5V50mA

SKU: ENCT4008Q5V50mA

Neware CT-4008Q 5V50mA Battery Testing System, ENCT4008Q5V50mA — Neware CT-4008Q multi-range battery tester with a 5 V / 50 mA configuration, ±0.05% F.S. specified accuracy, and approximately 500 μs current response for precision laboratory cell testing.

Need help selecting a configuration? Request a competitive quote today!

Neware CT-4008Q 5V50mA Battery Testing System, ENCT4008Q5V50mA

Product Type: High-Precision Battery Testing System
Brand: Neware
Part Number: ENCT4008Q5V50mA

Product Introduction

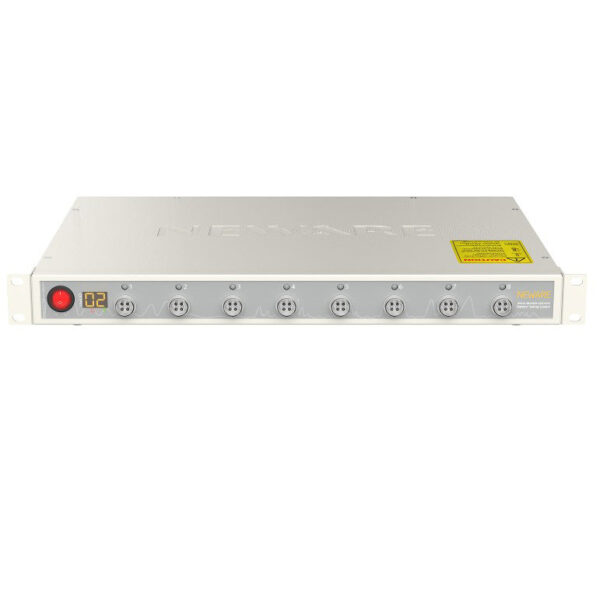

The Neware CT-4008Q is a multi-range battery cycler configured for 5 V / 50 mA operation. It supports precision charge/discharge testing for coin cells, pouch cells, cylindrical cells, and other laboratory-scale batteries.

Key Features

• 5 V / 50 mA configuration — rated voltage and current for this part number
• Three current ranges — automatic range selection supports measurements across different C-rates
• ±0.05% F.S. accuracy — specified voltage/current measurement accuracy
• approximately 500 μs current response — supports pulse and dynamic test sequences
• Flexible test programming — CCC/CCD, CVC/CVD, CPC/CPD, CCCV, DCIR, and pulse simulation functions

Specification

Parameter	Specification
Part Number	ENCT4008Q5V50mA
Power	AC110V or 220V±10%, single phase, 50/60Hz, 40 W
Voltage Features	25 mV ~ 5V (the minimal discharge voltage could be 0) Accuracy: ± 0.05% of F.S.
Current Features	There are three current ranges: Range 1: (5 uA – 1 mA) Range 2: (1 mA – 25 mA) Range 3: (25 mA – 50 mA) Accuracy: ± 0.05% of F.S. The cut off current at the constant voltage: 2 uA (range 1); 0.05 mA (range 2); 0.1 mA (range 3)
Time	Current Response Time: ~500 us Working Step Time: ≤(365*24) h/step Time format-00: 00: 00.000 (h、m、s、ms)
Data Logging	Minimum time interval: 100 ms Record frequency: 10 Hz
Main Test Functions	Constant current charging/discharging (CCC/CCD) Constant voltage charging/discharging (CVC/CVD) Constant power charging/discharging (CPC/CPD) Constant current constant voltage charging/discharging (CCCVC/CCCVD) DCIR Pulse Simulation Test
Control Unit	The control unit is included for communication between laptop and battery analyzer.

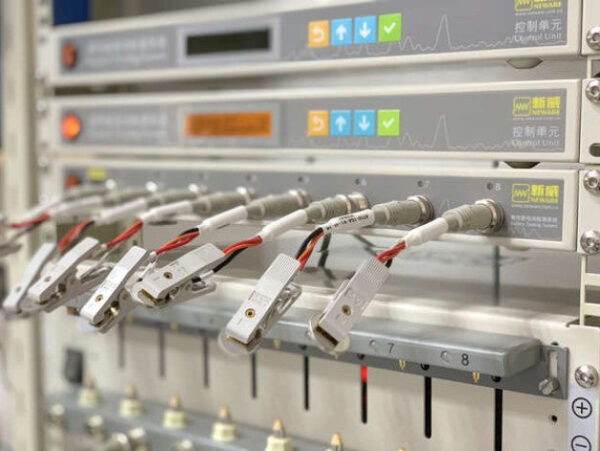

Clip Types	(1) Crocodile fixture (2) Polymer fixture (3) PCB buckle fixture
Integration Options (Optional)	Multiple testing units can be integrated with upper controller on a rack (ENPDCJR1TJ96DNVT).
Dimension	L443 * W310 * H43 mm
Weight	~10 kg
