SKU: ENCT90025V6AF

Neware CT-9002-5V6A-F-204n Battery Testing System with High Speed Sampling (≤100 us), ENCT90025V6AF — Two-channel Neware CT-9002-5V6A-F tester with -5 V to 5 V operation, four current ranges up to 6 A, and ≤100 μs current response for high-speed battery analysis.

Need help selecting a configuration? Request a competitive quote today!

Neware CT-9002-5V6A-F-204n Battery Testing System with High Speed Sampling (≤100 us), ENCT90025V6AF

Product Type: High-Speed Battery Testing System
Brand: Neware
Part Number: ENCT90025V6AF

Product Introduction

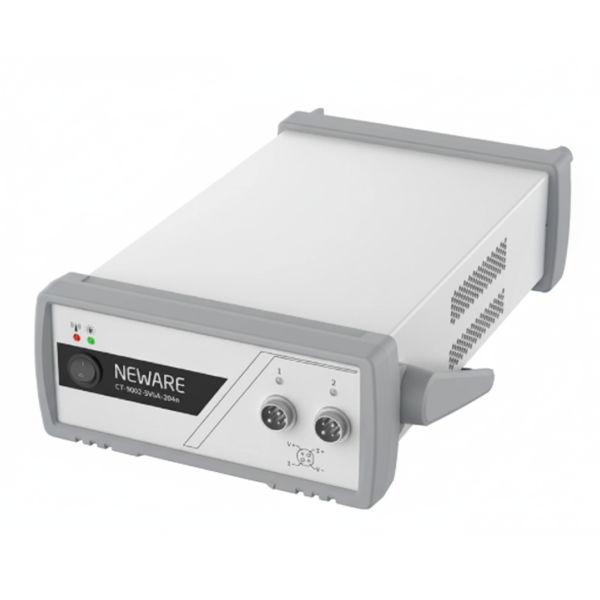

The Neware CT-9002-5V6A-F is a two-channel high-speed battery testing system for dynamic cell characterization and battery/BMS communication studies. Its four-range current architecture covers microamp-level measurements through 6 A output, while the fast response supports transient test profiles.

Key Features

• Two independent channels — compact high-speed test configuration
• -5 V to 5 V discharge range — supports lithium-cell and supercapacitor research scenarios
• 0.1 μA to 6 A current range — four selectable measurement ranges
• ≤100 μs current response — captures rapid load changes and pulse behavior
• SMBus/I²C capability — supports communication with compatible battery management electronics

Specification

ParameterSpecification
Part Number
  • ENCT90025V6AF
Power
  • AC110 V or AC220V±10%, single phase, 50/60Hz, 500 W
Channel Numbers
  • 2 channels

Voltage Features

  • Charge Voltage: 0-5 V
  • Discharge Voltage: -5V ~ 5 V
  • Minimal discharge voltage: -5 V
  • Accuracy: ± 0.02% of F.S.
  • Stability: ±0.01% of F.S.
Current Features
  • Current Range:

           Range 1: 0.1 uA – 180 uA

           Range 2: 180 uA – 6 mA

           Range 3: 6 mA – 180 mA,

            Range 4: 180 mA – 6000 mA

  • Accuracy: ± 0.02% of F.S.
  • Stability: ±0.01% of F.S.
Output Power
  • 30 W/Channel
  • Stability: ± 0.02% of F.S.
Time
  • Current Response Time: ≤100 us (10% to 90% or 90% to 10%)
  • Time Range of Work Step: ≥10ms
Main Test Functions
  • Constant current charging/discharging (CCC/CCD)
  • Constant voltage charging/discharging (CVC/CVD)
  • Constant power charging/discharging (CPC/CPD)
  • Constant current constant voltage charging/discharging (CCCVC/CCCVD)
  • DCIR
  • Pulse Simulation Test
  • GITT

Applications

Dynamic power testing, pulse characterization, consumer-battery validation, BMS communication studies, and high-speed cell R&D.

References:

S. Chen, et al., Critical Parameters for Evaluating Coin Cells and Pouch Cells of Rechargeable Li-Metal Batteries, Joule, 2019, 3, 1094-1105

Y. Son, et al., Analysis of Differences in Electrochemical Performance Between Coin and Pouch Cells for Lithium-Ion Battery Applications, Energy Environmental Materials, 2024, 7, e12615.
