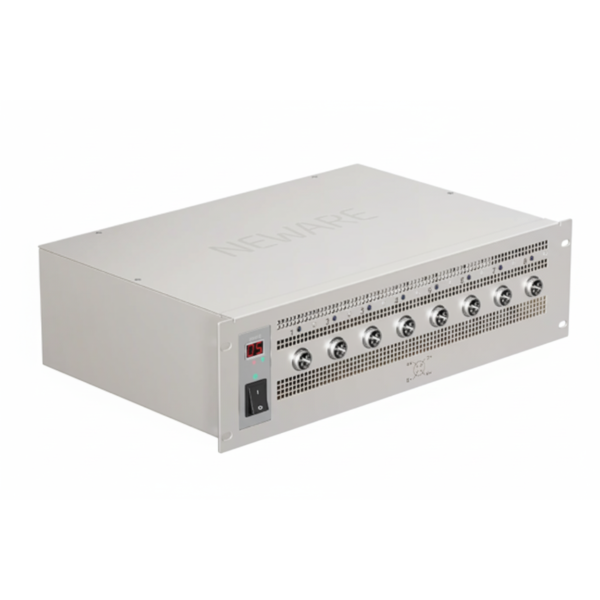

Neware CE-4008 20V10A Battery Testing System, ENCE400820V10A

Neware CE-4008 20V10A Battery Testing System, ENCE400820V10A

SKU: ENCE400820V10A

Neware CE-4008 20V10A Battery Testing System, ENCE400820V10A — Neware CE-4008 battery tester with a 20 V / 10 A, 200 W/channel configuration, ±0.02% F.S. voltage/current accuracy, and programmable cycling modes.

Need help selecting a configuration? Request a competitive quote today!

Neware CE-4008 20V10A Battery Testing System, ENCE400820V10A

Product Type: Battery Testing System
Brand: Neware
Part Number: ENCE400820V10A

Product Introduction

The Neware CE-4008 is a 20 V / 10 A battery testing system for programmable charge/discharge evaluation of cells and small battery assemblies. It provides precision control, multiple operating modes, and flexible reporting for laboratory workflows.

Key Features

• 20 V / 10 A configuration — rated voltage and current for this model
• ±0.02% F.S. voltage/current accuracy — specified measurement accuracy
• 200 W per channel — supports higher-voltage laboratory tests
• ≤1 ms current response — suitable for programmed transient steps
• Multiple export formats — Excel, TXT, Graph, PDF, and CSV output

Specification

ParameterSpecification
Part Number
  • ENCE400820V10A
Power
  • AC110V or 220V±10%, single phase, 50/60Hz, 2300 W

Voltage Features

  • 0.1 V ~ 20V
  • Minimal discharge voltage: 2.0 V for 2m cable
  • Accuracy: ± 0.02% of F.S.
  • Stability: 0.1% of F.S.
Current Features
  • Output Current: 10 A
  • Accuracy: ± 0.02% of F.S.
  • Stability: 0.04% of F.S.
  • Minimum Output Current: 0.5% of F.S.
  • CV Cut-Off Current: 0.2% of F.S.
Output Power
  • 200 W/Channel
  • Accuracy: ± 0.07% of F.S.
  • Stability: 0.14% of F.S.
Time
  • Current Response Time: ≤1.0 ms (10%-90% F.S.)
  • Current Conversion Time: ≤10 ms (-90%-90% F.S.)
  • Establishment Time: ≤10 ms (0-100% F.S.)
  • Working Step Time: ≤(365*24) h/step
    Time format-00: 00: 00.000 (h、m、s、ms)
Cycle
  • Max. Cycles: 1-65535
  • Max. Steps: ≤255
  • Cycle Test: <10
Main Test Functions
  • Constant current charging/discharging (CCC/CCD)
  • Constant voltage charging/discharging (CVC/CVD)
  • Constant power charging/discharging (CPC/CPD)
  • Constant current constant voltage charging/discharging (CCCVC/CCCVD)
  • DCIR
  • Pulse Simulation Test
  • GITT
Data Export Format
  • Excel, Txt, Graph, PDF, CSV
Clip Types
  • (1) Crocodile (Alligator) fixture



  • (2) Polymer fixture



    Dimension
    • L483 * W438 * H130 mm
    Weight
    • ~15 kg

    Applications

    Cycle-life testing, DCIR measurement, power characterization, small-module evaluation, and laboratory quality control.

    References:

    S. Chen, et al., Critical Parameters for Evaluating Coin Cells and Pouch Cells of Rechargeable Li-Metal Batteries, Joule, 2019, 3, 1094-1105

    Y. Son, et al., Analysis of Differences in Electrochemical Performance Between Coin and Pouch Cells for Lithium-Ion Battery Applications, Energy Environmental Materials, 2024, 7, e12615.
