Neware CE-4008Q 5V15A Battery Testing System, ENCE4008Q5V15A

SKU: ENCE4008Q5V15A

Neware CE-4008Q 5V15A Battery Testing System, ENCE4008Q5V15A — Neware CE-4008Q battery tester configured for 5 V / 15 A, with four current ranges, ±0.05% F.S. specified current accuracy, and 75 W/channel output.

Need help selecting a configuration? Request a competitive quote today!

Neware CE-4008Q 5V15A Battery Testing System, ENCE4008Q5V15A

Product Type: High-Current Battery Testing System
Brand: Neware
Part Number: ENCE4008Q5V15A

Product Introduction

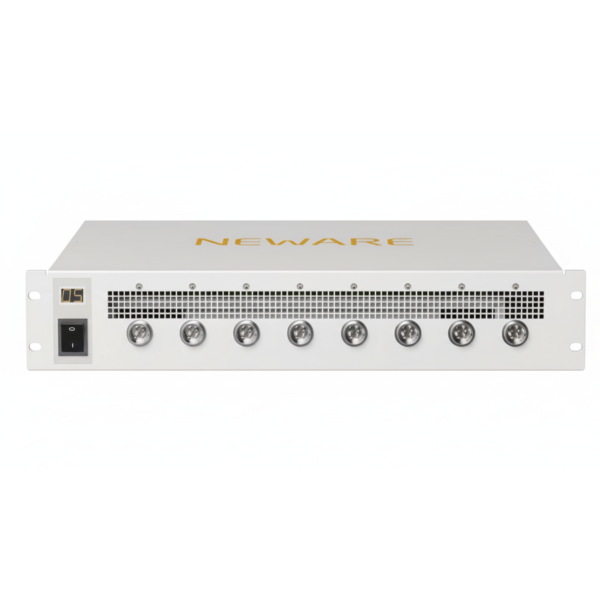

The Neware CE-4008Q is a multi-range battery cycler designed for controlled testing at up to 5 V / 15 A. This configuration combines high-current output with programmable battery test steps for laboratory R&D and quality evaluation.

Key Features

• 5 V / 15 A configuration — rated output for this product
• Four current ranges — supports measurement across low- and high-current conditions
• ±0.05% F.S. current accuracy — specified full-scale current accuracy
• 75 W/channel — specified output power per channel
• Programmable cycling — supports CCC/CCD, CVC/CVD, CPC/CPD, CCCV, DCIR, and pulse simulation

Specification

ParameterSpecification
Part Number
  • ENCE4008Q5V15A
Power
  • AC110V or 220V±10%, single phase, 50/60Hz, 680 W

Voltage Features

  • 25 mV ~ 5V
  • Minimal discharge voltage: 1.5V for 2m cable
  • Accuracy: ± 0.05% of F.S.
  • Stability: ± 0.1% of F.S.
Current Features
  • There are four current ranges:

           Range 1: (5 mA – 300 mA)

           Range 2: (30 mA – 3 A)

           Range 3: (60 mA – 6 A)

           Range 4: (150 mA – 15 A)

  • Accuracy: ± 0.05% of F.S.
  • Stability: ± 0.1% of F.S.
Output Power
  • 75 W
  • Accuracy: ± 0.1% of F.S.
  • Stability: ± 0.2% of F.S.
Time
  • Current Response Time: ≤1.0 ms
  • Working Step Time: ≤(365*24) h/step
    Time format-00: 00: 00.000 (h、m、s、ms)
Data Logging
  • Minimum sampling time: 100 ms
  • Record frequency: 10 Hz
Main Test Functions
  • Constant current charging/discharging (CCC/CCD)
  • Constant voltage charging/discharging (CVC/CVD)
  • Constant power charging/discharging (CPC/CPD)
  • Constant current constant voltage charging/discharging (CCCVC/CCCVD)
  • DCIR
  • Pulse Simulation Test
  • GITT
Clip Types
  • (1) Crocodile fixture



  • (2) Polymer fixture



    Integration Options (Optional)
    • Multiple testing units can be integrated with upper controller on a rack shelf.



    Dimension
    • L483 * W563 * H89 mm
    Weight
    • ~12 kg

    Applications

    High-current cell cycling, power characterization, DCIR measurement, cycle-life testing, and laboratory battery validation.

    References:

    S. Chen, et al., Critical Parameters for Evaluating Coin Cells and Pouch Cells of Rechargeable Li-Metal Batteries, Joule, 2019, 3, 1094-1105

    Y. Son, et al., Analysis of Differences in Electrochemical Performance Between Coin and Pouch Cells for Lithium-Ion Battery Applications, Energy Environmental Materials, 2024, 7, e12615.
