Neware CT-9000-5V15A Battery Testing System with High Speed Sampling (150 us), ENCT90005V15A

SKU: ENCT90005V15A

Neware CT-9000-5V15A Battery Testing System with High Speed Sampling (150 us), ENCT90005V15A — Eight-channel Neware CT-9000 tester rated at 5 V / 15 A per channel, with four current ranges, 75 W/channel output, and 150 μs response for dynamic testing.

Need help selecting a configuration? Request a competitive quote today!

Neware CT-9000-5V15A Battery Testing System with High Speed Sampling (150 us), ENCT90005V15A

Product Type: High-Speed Battery Testing System
Brand: Neware
Part Number: ENCT90005V15A

Product Introduction

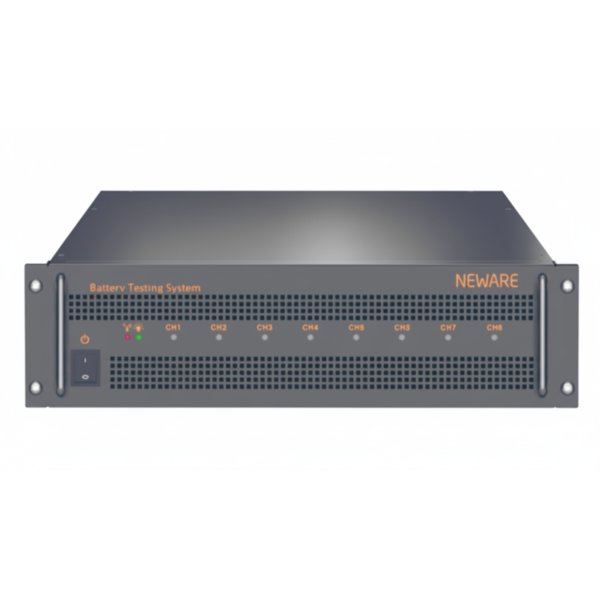

The Neware CT-9000-5V15A is an eight-channel high-speed cell tester built for dynamic current profiles and rapid transient measurement. Its 5 V / 15 A configuration combines four current ranges with 150 μs response for demanding power and pulse tests.

Key Features

• Eight test channels — parallel testing for laboratory throughput
• 5 V / 15 A per-channel configuration — 75 W specified output power per channel
• 150 μs current response — supports rapid current transitions
• 0 V minimum discharge — suitable for supercapacitor and full-discharge studies
• Dynamic test programming — supports pulse simulation, DCIR, and programmable charge/discharge modes

Specification

ParameterSpecification
Part Number
  • ENCT90005V15A
Power
  • AC220V±10%, single phase, 50/60Hz, 1500 W
Channel Numbers
  • 8 channels

Voltage Features

  • Charge/Discharge Voltage: 0 ~ 5 V
  • Minimal discharge voltage: 0 V (suitable for supercapacitor research)
  • Accuracy: ± 0.02% of F.S.
  • Stability: 0.01% of F.S.
Current Features
  • Current Range:

           Range 1: 0.015 mA – 15 mA

           Range 2: 15 mA – 150 mA

           Range 3: 150 mA – 1500 mA,

            Range 4: 1500 mA – 15 A

  • Accuracy: ± 0.02% of F.S.
  • Stability: 0.01% of F.S.
Output Power
  • 75 W/Channel
  • Stability: ± 0.01% of F.S.
Time
  • Current Response Time: ≤150 us
  • Working Step Time: ≤(365*24) h/step
    Time format-00: 00: 00.000 (h、m、s、ms)
Main Test Functions
  • Constant current charging/discharging (CCC/CCD)
  • Constant voltage charging/discharging (CVC/CVD)
  • Constant power charging/discharging (CPC/CPD)
  • Constant current constant voltage charging/discharging (CCCVC/CCCVD)
  • DCIR
  • Pulse Simulation Test
  • GITT

Applications

EV drive-cycle simulation, power-tool load profiles, fast DCIR testing, pulse characterization, and high-throughput cell validation.

References:

S. Chen, et al., Critical Parameters for Evaluating Coin Cells and Pouch Cells of Rechargeable Li-Metal Batteries, Joule, 2019, 3, 1094-1105

Y. Son, et al., Analysis of Differences in Electrochemical Performance Between Coin and Pouch Cells for Lithium-Ion Battery Applications, Energy Environmental Materials, 2024, 7, e12615.

Note: Browse related products in the Battery Testing Equipment category.
