Pneumatic Edge Trimming Machine XN-TRIM-200

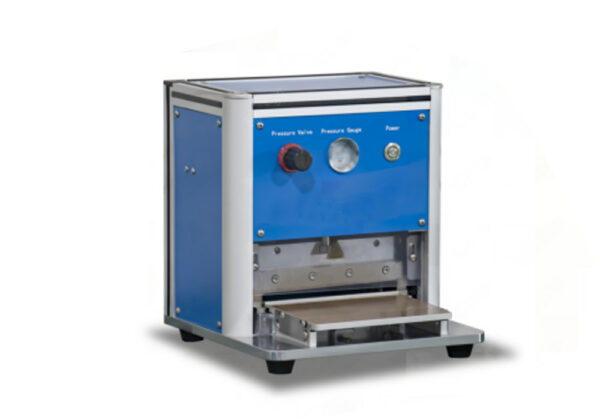

XN-TRIM-200 pneumatic edge trimming machine for pouch lithium battery aluminum-plastic film edges. Precision linear guide rails, high-speed steel upper/lower blades, cylinder-driven trimming, adjustable air pressure and speed, built-in pressure gauge, foot pedal operation, positioning tray included.
Need a bulk order? Request a competitive quote today!
I. Product Introduction
This equipment is mainly suitable for trimming and forming the aluminum-plastic film edges of pouch lithium batteries. It can also be used for cutting other soft materials, making it suitable for laboratory research, pilot production, and small-scale manufacturing applications.
II. Main Features
• High-precision cutting structure
Uses precision linear guide rails for guidance, ensuring extremely high accuracy, zero clearance between the upper and lower cutting blades, and long service life.
• Durable cutting blades
The upper and lower cutting blades are made of high-speed steel with sharp cutting edges.
• Adjustable trimming pressure
Built-in pressure gauge allows observation and precise control of the trimming pressure.
• Cylinder-driven trimming system
The cylinder controls the cutting blades to trim the battery sealing edges, enabling easy automation and adjustable trimming width.
• Adjustable air pressure and speed
Trimming air pressure and cutting speed can both be adjusted.
• Convenient product positioning
Equipped with a positioning tray for convenient battery placement and positioning.
• Easy operation
Foot pedal operation switch for reliable, convenient, and fast operation.
• Compact and elegant design
The machine frame is assembled with profile structures and baked-paint panels, providing a simple, compact structure and an elegant appearance.
III. Technical Parameters
| Parameter | Specification |
|---|---|
| Cutting blade length | 200 mm |
| Trimming width | 3–10 mm, edge distance adjustable |
| Blade service life | 10 million cycles per sharpening |
| Speed | Compressed air operation up to 600 cycles per hour |
| Power supply | AC 110V/220V ±10% 50 Hz |
| Compressed air source | 0.5 MPa – 0.7 MPa |
| Power | 0.1 kW |
| Overall dimensions | L320 × W180 × H340 mm |
| Equipment weight | 28.5 kg |
IV. Main Electrical and Standard Component Brands
| Component | Brand |
|---|---|
| Cylinder | Airtac |
| Pressure gauge | Airtac |
| Pneumatic fittings | Airtac |
| Linear guide rail | HIWIN / Airtac |
V. Maintenance Method
Frequently wipe the equipment with a soft cloth soaked in alcohol to keep it clean.
Lubricate the moving parts with oil regularly to ensure smooth operation.
If the equipment is not used for a long time, clean the surface of the moving components and apply anti-rust oil for protection.
Regularly inspect the screws, nuts, pins, and other fasteners of the machine to prevent loosening and avoid equipment failure or personal injury.
VI. Precautions
During operation, it is strictly prohibited to place hands or any part of the body into the moving parts or hazardous working areas to avoid personal injury. Only one operator is allowed during operation to prevent accidental injury.
Non-technical personnel and unauthorized personnel are not allowed to disassemble the equipment.
