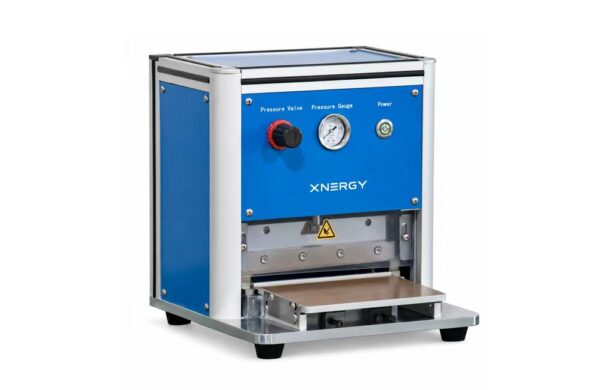

Pneumatic Pouch Cell Edge Trimming Machine XN-TRIM-200
SKU: XN-TRIM-200
Pneumatic Pouch Cell Edge Trimming Machine XN-TRIM-200 pneumatically trims aluminum-laminated pouch-cell edges with an adjustable 3–10 mm cutting margin and precision linear guidance.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Pneumatic Pouch Cell Edge Trimming Machine XN-TRIM-200
Equipment Type: Pneumatic Pouch Cell Edge Trimming Machine
Product Code: XN-TRIM-200
Brand: Xnergy
Product Introduction:
The XN-TRIM-200 is designed for trimming and forming the aluminum-laminated film edges of soft-pack lithium battery cells. A pneumatic cylinder drives sharp upper and lower high-speed-steel blades, while precision linear guides maintain alignment and a clean cut. The adjustable positioning tray supports repeatable pouch placement.
Key Features:
Precision linear-guide alignment for long service life
High-speed-steel upper and lower cutting blades
Adjustable 3–10 mm trimming margin
Embedded pressure gauge for process monitoring
Adjustable pneumatic pressure and operating speed
Positioning tray for repeatable pouch-cell placement
Convenient foot-pedal operation
Technical Specifications:
| Parameter | Specification |
|---|---|
| Product Type | Pneumatic edge trimming machine for aluminum-laminated pouch cells |
| Cutting-Blade Length | 200 mm |
| Adjustable Edge Width | 3–10 mm |
| Blade Service Life | 10 million cycles before regrinding |
| Production Speed | Up to 600 cycles/hour with compressed air |
| Compressed-Air Supply | 0.5–0.7 MPa |
| Cutting-Blade Material | High-speed steel |
| Guidance | Precision linear guide assembly |
| Operation | Foot-pedal actuation |
| Rated Power | 0.1 kW |
| Electrical Standard | Configured to local electrical standards |
| Dimensions | 320 × 180 × 340 mm |
| Weight | 28.5 kg |
Application Areas:
Pouch-cell aluminum-laminated film edge trimming
Soft-pack lithium-battery cell finishing
Laboratory and pilot-line pouch-cell assembly
Cutting other compatible soft materials
Note: Cutting fixtures and positioning arrangements can be configured for the customer’s pouch-cell dimensions and process requirements. Explore related pouch-cell assembly equipment, slitting and die-cutting equipment, and cell assembly systems.
