Cylindrical Cell Negative Electrode Spot Welder XN-PSW-10
SKU: XN-PSW-10
Cylindrical Cell Negative Electrode Spot Welder XN-PSW-10 is an AC pulse spot-welding machine for joining the negative cylindrical cell can to its electrode tab by single-needle welding. Microcomputer control supports single, double and multiple welding pulses. Documented specifications include 15 kW welding power, 0–99% adjustment and compatibility with 0.03–0.25 mm welding tabs.
Need a bulk order? Request a competitive quote today!

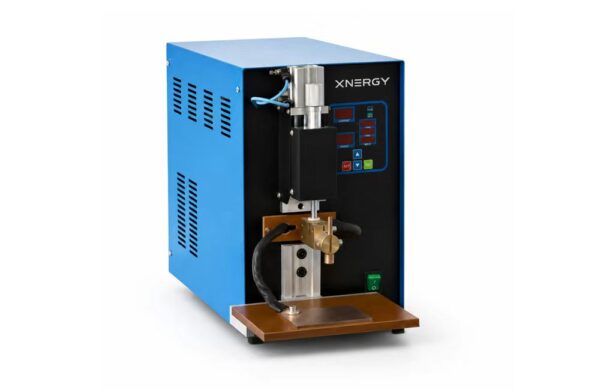

Cylindrical Cell Negative Electrode Spot Welder XN-PSW-10
Equipment Type: Cylindrical Cell Negative Electrode Spot Welder
Product Code: XN-PSW-10
Brand: Xnergy
Product Introduction
The XN-PSW-10 is an AC pulse spot welder designed to join the negative cylindrical cell can to its electrode tab using a single welding needle. It is intended for cylindrical nickel-cadmium, nickel-metal hydride and lithium battery production and research. A microcomputer controller provides digital parameter setting and supports single-pulse, double-pulse and multi-pulse welding.
Core Features
- Stable welding current for consistent weld-spot size
- Small spark generation with minimal weld discoloration
- Single, double and multiple pulse modes
- Digital settings for direct and accurate parameter adjustment
- Independently adjustable welding-needle pressure
- Accurate positioning suitable for small-cap cylindrical cells
- Compact and lightweight machine structure
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Code | XN-PSW-10 |
| Machine Type | AC pulse cylindrical cell negative electrode spot welder |
| Welding Configuration | Single-needle welding |
| Documented Applications | Cylindrical Ni-Cd, Ni-MH and lithium cells |
| Control | Microcomputer microcontroller |
| Pulse Modes | Single-pulse, double-pulse and multi-pulse welding |
| Welding Power | 15 kW |
| Power Adjustment | 0–99%, adjustable |
| Compatible Welding-Tab Thickness | 0.03–0.25 mm |
| Welding-Needle Diameter | Ø2.5 mm |
| Compressed Air | 0.5–0.8 MPa |
| Electrical Standard | Configured to local electrical standards |
| Total Power | 3 kW |
| Dimensions | 300 × 460 × 400 mm |
| Machine Weight | 30 kg |
Applications
- Cylindrical cell negative can-to-tab welding
- Nickel-cadmium cylindrical battery assembly
- Nickel-metal hydride cylindrical battery assembly
- Lithium cylindrical battery assembly
- Laboratory and pilot-scale cylindrical cell production
Note: The documented compatible welding-tab thickness is 0.03–0.25 mm, and the welding-needle diameter is Ø2.5 mm. Confirm the cell format, tab material and welding requirements when requesting a quotation.
For cylindrical can preparation, see the XN-GMCL-18 Vertical Cylindrical Cell Grooving Machine. Browse Cylindrical Cell Assembly and Cylindrical Cell Lab Equipment for related equipment.
