Ronbay SC92Y Single-Crystal Ni91 NCM Cathode Material 1kg

Name: Ronbay SC92Y Single-Crystal Ni91 NCM Cathode

Material Type: Single-Crystal High-Energy-Density Lithium Nickel Cobalt Manganese Oxide (NCM)

Product Code: SC92Y

Brand: Ronbay

Product Introduction:

The Ronbay SC92Y is a single-crystal high-energy-density lithium nickel cobalt manganese oxide (NCM) cathode material with Ni / Co / Mn molar ratio of 91.35 / 6.45 / 2.20. The material is supplied as a black powder with D50 4.10 μm, tap density 1.80 g/cm³, and specific surface area 0.80 m²/g. SEM confirms single-crystal microstructure with spherical-type particle morphology, and XRD shows no impurity phase peaks. The SC92Y is broadly applicable to a wide range of cylindrical lithium-ion battery products.

Key Features:

Single-crystal high-nickel NCM chemistry — Ni 91.35 / Co 6.45 / Mn 2.20 mol%
0.2C specific capacity 211.5 mAh/g at 4.25–2.50 V, 25°C (half cell)
First-cycle efficiency 88.4%
Particle size distribution — D10 2.10 μm / D50 4.10 μm / D90 7.50 μm
Tap density 1.80 g/cm³, S.S.A 0.80 m²/g
Low surface lithium residues — LiOH 2500 ppm, Li₂CO₃ 2600 ppm
Low moisture content 230 ppm
Low impurity content — Fe 0 ppm, Cu 0 ppm, Na 110 ppm, Ca 20 ppm
Low magnetic impurities (Fe + Cr + Zn) 8 ppb
XRD confirms phase purity with no impurity phase peaks
RoHS compliant (EU standards)

Chemical Composition:

Impurities & Surface Lithium Residues:

Particle Size Distribution (PSD):

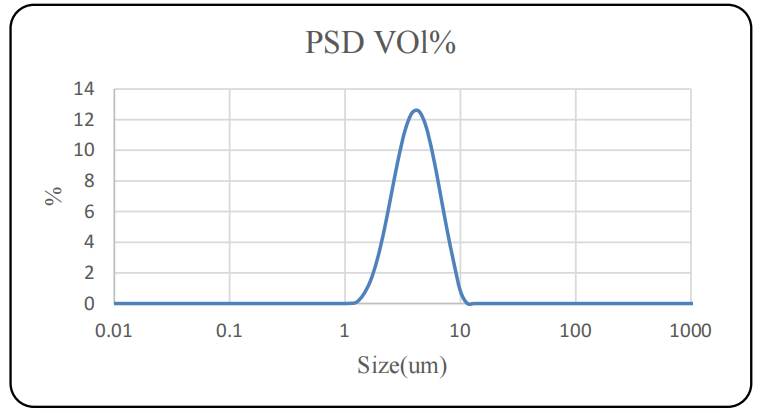

Particle size distribution curve:

Physical Properties:

SEM Morphology:

SEM imaging confirms well-developed single-crystal particle morphology with spherical-type / quasi-spherical particle shapes and a relatively uniform particle size distribution.

SEM at low magnification (10 μm scale bar):

SEM at high magnification (5 μm scale bar):

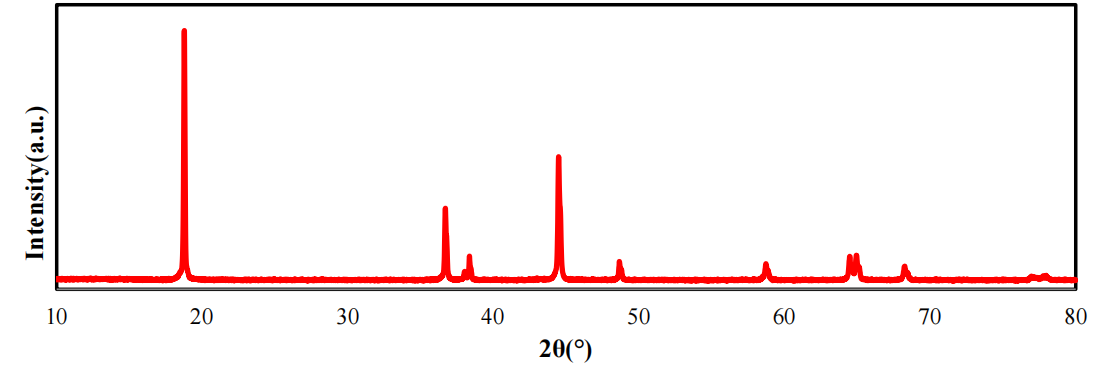

XRD Pattern:

Electrochemical Performance (Half-Cell, 0.2C Charge/Discharge, 4.25–2.50 V, 25°C):

Values measured by Xnergy. Typical values for reference; not guaranteed unless otherwise specified.

Application Areas:

The Ronbay SC92Y is broadly applicable to a wide range of cylindrical lithium-ion battery products.

Packaging:

Vacuum-sealed in aluminum-laminated film bag, placed in plastic drums or cardboard boxes. Each drum contains 12.50 kg ± 0.02 kg net weight of material.

Shelf Life:

Under vacuum-sealed packaging, store in a cool, dry place. Shelf life: 1 year.

Handling, Storage & Protection:

Avoid impact and inversion during handling. Store in a clean environment at room temperature, cool and dry. Avoid sunlight, heat, and rain during transportation. Use the material immediately after opening the packaging bag; if not used immediately, reseal and store to prevent moisture absorption.
