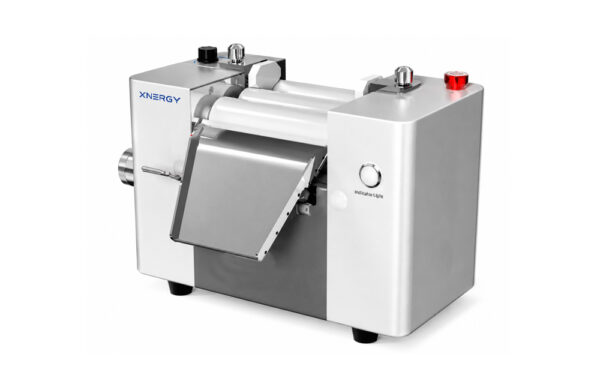

Ceramic Three Roll Mill XN-50B
SKU: XN-50B
Ceramic Three Roll Mill XN-50B is a desktop laboratory mill with 50 × 150 mm zirconia ceramic rollers for grinding and dispersing viscous slurries and pastes.
It provides 0–500 rpm stepless speed control, a 1:2:4 roller-speed ratio, a 1–140 μm adjustable gap, and a stated throughput of 0.02–5 L/h.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Ceramic Three Roll Mill
Equipment Type: Desktop Laboratory Ceramic Three Roll Mill
Product Code: XN-50B
Brand: Xnergy
Product Introduction:
The XN-50B Ceramic Three Roll Mill is designed for laboratory grinding, refining, and dispersion of viscous materials. Material is fed between three horizontal rollers. The rollers operate with different rotational directions and speed differentials, generating squeezing and shear forces that break down agglomerates and improve material dispersion.
The roller-gap adjustment mechanism is designed for precise and stable control. By setting the inlet and outlet gaps, the machine can process materials with different viscosities and produce a narrower, more uniform particle distribution.
Key Features:
Three horizontal ceramic rollers for grinding and dispersion
Differential roller speeds generate strong shear forces
Adjustable inlet and outlet roller gaps
Precise and stable gap-control mechanism
Suitable for materials with different viscosities
Supports refining, deagglomeration, mixing, and dispersion
Compact laboratory configuration
Technical Specifications:
| Parameter | Specification |
|---|---|
| Model | XN-50B |
| Configuration | Desktop type with knob speed adjustment |
| Maximum Throughput | 0.02–5 L/h |
| Roller Dimensions | 50 × 150 mm |
| Roller Material | Zirconia ceramic |
| Roller Speed Ratio | 1:2:4 |
| Speed Range | 0–500 rpm; stepless adjustment by external knob |
| Gap Range | 1–140 μm |
| Gap Adjustment Increment | 1 μm |
| Motor Power | 400 W |
| Power Supply | Configured according to destination-country electrical standards |
| Safety Protection | Emergency-stop protection |
| Net Weight | Approximately 19 kg |
| Overall Dimensions | 385 × 284 × 260 mm |
Standard Accessories:
2 POM feeding plates
2 PVC scraper blades
1 receiving tray
1 splash guard
1 cleaning knob
1 discharge-blade holder
1 instruction manual
1 operating-process guide
Optional Accessories:
2 alloy stainless-steel scraper blades
2 resin scraper blades
Working Principle:
Material enters through the inlet gap between the first and second rollers. Squeezing and shear forces created by the rotating rollers reduce agglomerates and distribute the material. The processed material then passes through the outlet gap between the second and third rollers, where further shearing and refining take place before discharge.
Typical Applications:
Battery slurry and electrode-material research
Ceramic pastes and functional materials
Conductive pastes and electronic materials
Pigments, inks, and coatings
Adhesives and polymer formulations
Other viscous materials requiring grinding and dispersion
Note: Actual grinding and dispersion results depend on feed-material properties, viscosity, initial particle size, roller-gap settings, roller-speed relationships, and the number of passes. Confirm material compatibility and process requirements before ordering. Related equipment includes the XN-VSM Ultrafine Vertical Sand Mill, XN-MS Nano Sand Mill, XN-MT-120 Agate Mortar Grinder, XN-PM-200 Disc Crusher, and XN-MDG10 Double Roller Crusher.
