Powder Tablet Press Mold XN-MD
SKU: XN-MD
Powder Tablet Press Mold XN-MD is a stainless steel die set used with a tablet press to compact powder samples into tablets or pellets; available in round, square, split, ring, special-shaped, and size-custom configurations, including open-mold variants (round open and square open) for easier demolding; compatible with XN-MC Manual and XN-MZD Automatic Powder Tablet Presses; custom shapes and sizes made to order.
Name: Powder Tablet Press Mold XN-MD
Equipment Type: Powder Tablet Press Mold (Die)
Product Code: XN-MD
Brand: Xnergy
Product Introduction:
Powder tablet press molds (dies) are used with a tablet press to form powder samples into tablets or pellets. During pressing, the sample is loaded into the mold and compacted; the mold is then opened to demold the finished tablet. Xnergy offers molds in several shapes and configurations in stainless steel, so the right die can be matched to the required sample shape and size and to the press in use.

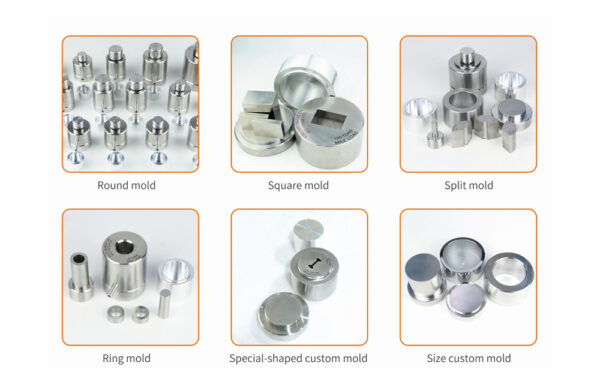

Mold Types Available:
| No. | Mold Type |
|---|---|
| 1 | Round mold |
| 2 | Square mold |
| 3 | Split mold |
| 4 | Ring mold |
| 5 | Special-shaped custom mold |
| 6 | Size-custom mold |
| 7 | Round open mold (easier demolding) |
| 8 | Square open mold (easier demolding) |
Key Features:
- Available mold shapes: round, square, split, ring, special-shaped custom, size-custom
- Open-mold variants (round open and square open) for easier demolding
- Stainless steel construction
- Two-step workflow: sample-making step (load and compact powder) then demolding step (release finished tablet)
- Compatible with XN-MC Manual Powder Tablet Press and XN-MZD Automatic Powder Tablet Press
- Custom shapes and sizes made to order
Sample-Making and Demolding Process:

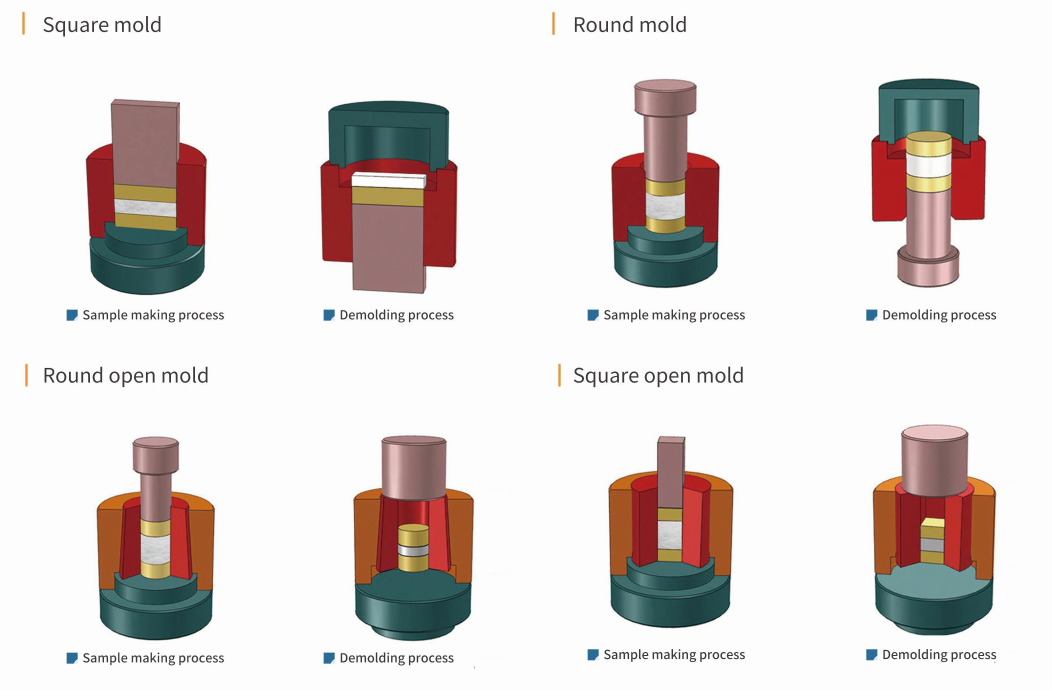

Each mold supports a two-step workflow: a sample-making step, in which the powder is loaded and pressed into shape, and a demolding step, in which the formed tablet is released from the die. The illustration below shows the sample-making and demolding process for square, round, and open-mold types.
Application Areas:
Forming powder samples into tablets or pellets with a tablet press
Round, square, ring, and custom-shaped sample preparation
Sample preparation for XRD, XRF, IR, and other analyses
Battery R&D — pressing electrode discs and solid-electrolyte pellets
Custom shapes and sizes made to order
Maintenance:
Clean the mold thoroughly after each use to prevent cross-contamination
Lightly oil and store in a dry place to prevent rust
Inspect the faces and bore for scratches, wear, or damage before use
Handle carefully to protect the precision surfaces
Safety Notes:
Use a mold rated for the press and the intended pressing force
Ensure the mold is correctly assembled and seated before pressing
Keep hands clear of the ram and mold during pressing
Demold according to the mold type after the pressure is released
Specifications are provided for reference and may be adjusted to suit specific process requirements. Mold shape, size, and configuration are specified at order time.
Note: Specifications listed above are typical and for reference only. Xnergy’s XN-MD Powder Tablet Press Molds are the dies that shape powder samples during pressing, available as round, square, split, ring, special-shaped, and size-custom types, including open-mold variants for easier demolding. They are used with Xnergy’s tablet presses — the manual XN-MC Manual Powder Tablet Press and the automatic XN-MZD Automatic Powder Tablet Press — to form electrode discs, solid-electrolyte pellets, and analysis samples from materials such as Cathode Materials and Anode Materials. Custom shapes and sizes can be made to order.
