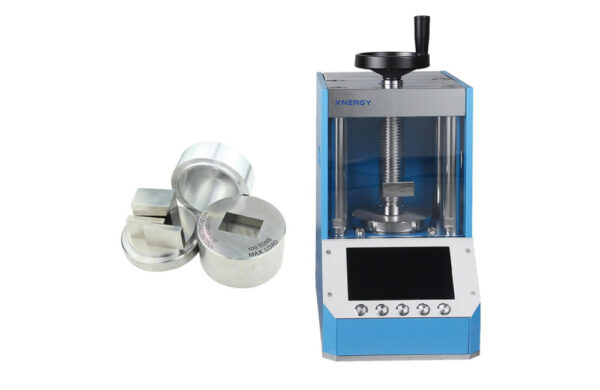

Automatic Powder Tablet Press XN-MZD Series
SKU: XN-MZD
Automatic Powder Tablet Press XN-MZD Series presses powder samples into tablets or pellets with fully automatic operation. Its mechanical lever principle is matched with molds of various sizes, and a 4.3-inch LCD with automatic pressure replenishment and a programmable holding time gives repeatable results.
The main machine is made of 304 stainless steel with an environmentally friendly spray-coated housing, with models spanning 20 T to 60 T of pressing force.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Automatic Powder Tablet Press XN-MZD Series
Equipment Type: Automatic Powder Tablet Press (Hydraulic)
Product Code: XN-MZD
Brand: Xnergy
Product Introduction:
The XN-MZD Automatic Powder Tablet Press is used to press powder samples into tablets or pellets within a diameter of about 3–100 mm. Its mechanical lever principle is matched with molds of various sizes, making it practical and convenient. The main machine is made of 304 stainless steel and the housing is finished with an environmentally friendly spray coating, with the pressing pressure shown on the gauge. It is essential equipment for powder preparation in scientific research and small-scale production. The series spans pressing forces from 20 T to 60 T, with fully automatic operation, automatic pressure replenishment, an LCD display, and a programmable holding time.
Key Features:
Fully automatic pressing with automatic pressure replenishment
4.3-inch LCD display
Programmable pressure holding time, 0–999 s
304 stainless steel main machine with environmentally friendly spray-coated housing

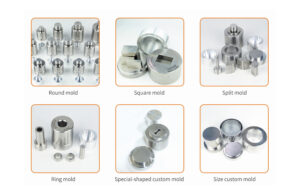

Matched with molds of various sizes for different tablet and pellet diameters
Pressing force from 20 T to 60 T across the series
Technical Specifications:
| Parameter | XN-MZD-20 | XN-MZD-30 | XN-MZD-40 | XN-MZD-60 |
|---|---|---|---|---|
| Pressure Range (T) | 1–20 | 1–30 | 1–40 | 1–60 |
| Space Dimensions | 140 × 160 mm | 140 × 160 mm | 175 × 180 mm | 185 × 220 mm |
| Cylinder Stroke | 30 mm | 30 mm | 50 mm | 50 mm |
| LCD Display | 4.3-inch | |||
| Pressure Method | Fully automatic | |||
| Pressure Replenishment | Automatic pressure replenishment | |||
| Pressure Holding Time | 0–999 s | |||
| Dimensions | 230 × 390 × 420 mm | 230 × 390 × 420 mm | 280 × 460 × 550 mm | 300 × 520 × 580 mm |
| Weight | 90 kg | 95 kg | 150 kg | 180 kg |
| Voltage | Configurable according to local electrical standards. | |||
Application Areas:
Automatic pressing of powder samples into tablets or pellets
Sample preparation for XRD, XRF, IR, and other analyses
Battery R&D — pressing electrode discs and solid-electrolyte pellets
Scientific research and small-scale production
Repeatable, programmable compaction with held pressure
Maintenance:
Keep the molds and ram clean and lightly lubricated
Check the hydraulic oil level and top up as needed
Inspect the gauge, control panel, and release valve before use
Store molds clean and dry to prevent rust
Safety Notes:
Do not exceed the rated pressure range for the model and mold
Keep hands clear of the ram and mold during pressing
Allow the automatic cycle to release pressure before opening
Use the correct mold for the sample diameter and force
Specifications are provided for reference and may be adjusted to suit specific process requirements. Model and mold size are specified at order time.
Note: Specifications listed above are typical and for reference only. Actual performance depends on the sample and mold. The XN-MZD Automatic Powder Tablet Press compacts powder samples into tablets or pellets with fully automatic operation, automatic pressure replenishment, a programmable holding time, and an LCD display — giving repeatable results from 20 T to 60 T. For manual, lever-operated pressing at a lower cost, the XN-MC Manual Powder Tablet Press is the alternative. In battery R&D it is used to press electrode discs and solid-electrolyte pellets from Cathode Materials and Anode Materials, with samples typically ground first on equipment such as the XN-MT-120 Agate Mortar Grinder.
