12T Pellet Press & Single-Channel Battery Pressure Test System XN-PTS-12
SKU: XN-PTS-12
12T Pellet Press & Single-Channel Battery Pressure Test System XN-PTS-12 combines the compact XNT-12 hydraulic pellet press with a single-channel battery pressure sensing system for sample compaction and pressure-monitored electrochemical research. Compatible battery molds can be selected and quoted separately.
Need a configured research package or compatible mold? Request a competitive quote today!
Name: 12T Pellet Press & Single-Channel Battery Pressure Test System XN-PTS-12
Equipment Type: Integrated Pellet Press and Battery Pressure Monitoring Package
Product Code: XN-PTS-12
Brand: Xnergy
Product Introduction:

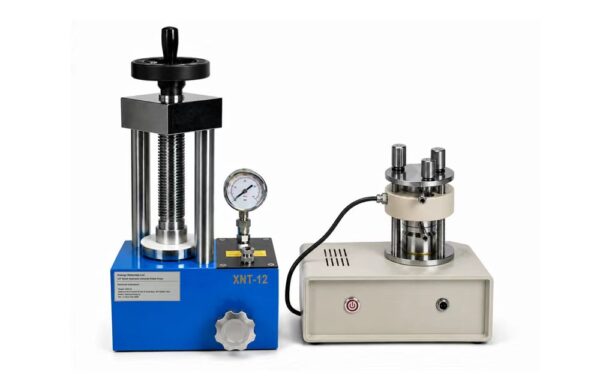

XN-PTS-12 is an integrated laboratory package combining a compact 12-ton hydraulic pellet press with a single-channel pressure sensing system. It supports controlled powder compaction and real-time pressure observation in battery, electrochemical, flow-cell, and other pressure-sensitive research workflows. The pressure sensor range and data-acquisition format can be configured for the intended experiment.
Key Features:
Integrated press-and-monitoring package for coordinated laboratory use
XNT-12 press rated at 12 ton / 120 kN with 15 ton maximum capacity
Compact manual hydraulic operation with adjustable working-space height
High-precision pressure sensing with customizable load range
Digital Display and Software Edition options
Real-time monitoring and Excel-based recording with the Software Edition
Compatible battery molds can be selected and quoted separately
Technical Specifications:
| Parameter | Specification |
|---|---|
| Package Configuration | 12T hydraulic pellet press + single-channel battery pressure sensing system |
| Pellet Press Model | XNT-12 |
| Rated Pressing Force | 12 ton / 120 kN (36 MPa) |
| Maximum Pressing Force | 15 ton / 150 kN (45 MPa) |
| Hydraulic Cylinder Effective Area | 0.332 dm² |
| Pressure Conversion | Working pressure (ton) = 0.332 × gauge reading (MPa) |
| Piston Stroke | 20 mm |
| Working Space Height | 90 mm; adjustable to 120 / 135 / 160 mm |
| Working Platform Space | 95 × 95 × 75 mm |
| Pellet Press Dimensions | 160 × 130 × 300 mm |
| Pellet Press Net Weight | 12 kg |
| Pressure Sensing Format | Single-channel battery pressure monitoring |
| Load Range | Customizable; Ø25 sensor examples include 500 kg or 1 ton |
| Data Options | Digital Display or Software Edition; real-time monitoring and Excel recording |
| Continuous Logging | Up to one week with the Software Edition |
| Compatible Molds | Battery molds selected separately according to the research cell or sample |
Application Areas:
Battery-material pellet preparation
Pressure-monitored electrochemical testing
Flow-cell and pressure-sensitive cell research
Powder compaction and solid-state sample preparation
Laboratory method development requiring synchronized pressing and pressure data
Note: This page describes the combined package. For individual component details, see the XNT-12 hydraulic pellet press and YLCS pressure sensing system. Compatible molds may be selected from the Battery Mold category and quoted according to the required cell format, sample geometry, and test method. Mold specifications are not included in this package description.
