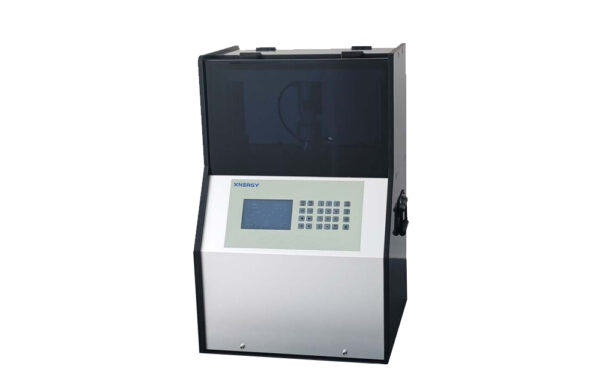

Automatic Powder Resistivity Tester XN-ST2742C
SKU: XN-ST2742C
The XN-ST2742C Automatic Powder Resistivity Tester uses four-probe and four-terminal methods to measure powder resistivity and pressure characteristics.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Automatic Powder Resistivity Tester
Equipment Type: Automatic Powder Resistivity Tester
Product Code: XN-ST2742C
Brand: Xnergy
Product Introduction:
The XN-ST2742C is an integrated intelligent instrument for measuring powder resistivity, conductivity, and compaction-density characteristics under pressure. It supports four-probe and four-terminal methods for lithium-battery cathode and anode powders, graphite carbon powder, and other conductive or semiconductor powders.
Key Features:
Four-probe and four-terminal measurement
Automatic synchronous pressure and resistivity measurement
Continuous multi-point stepped-pressure testing with curve fitting
Automatic height and pressure self-calibration
Color-screen display and PC measurement-control software
Test reports with resistivity-pressure curves
Applicable Standards:
GB/T 24521-2018; YS/T 587.6-2006; GB/T 1551-2021; GB/T 30835-2014; GB/T 40007-2021
Technical Parameters:
| Parameter | Specification |
|---|---|
| Resistivity Range | 15.0 × 10⁻⁶ to 200.0 × 10³ Ω·cm |
| Resolution | 1.5 × 10⁻⁶ to 0.1 × 10³ Ω·cm |
| Current Sources | 0.1 μA, 1 μA, 10 μA, 100 μA, 1 mA, 10 mA, 100 mA, 1 A |
| Voltmeter | 20 mV–2.0 V autorange |
| Pressure | 0–100 MPa; rated force 10,000 N (1,000 kg) |
| Particle Size | Recommended below 40 mesh; maximum 10 mesh |
| Dimensions | 350 × 380 × 580 mm |
| Weight | 45 kg |
| Power | 220 V ±10%, 50 Hz ±5 Hz, below 200 W |
| Operating Conditions | 0–40 °C; relative humidity ≤60% |
Note: Select the test method and pressure conditions according to the powder sample. Related equipment: XN-ST2722 Powder Resistivity Tester, XN-ST2253 Digital Four-Probe Tester, XN-ST2921B Fuel Cell Resistance Tester, and CS350M Potentiostat/Galvanostat. Explore more in Testing & Characterization.
