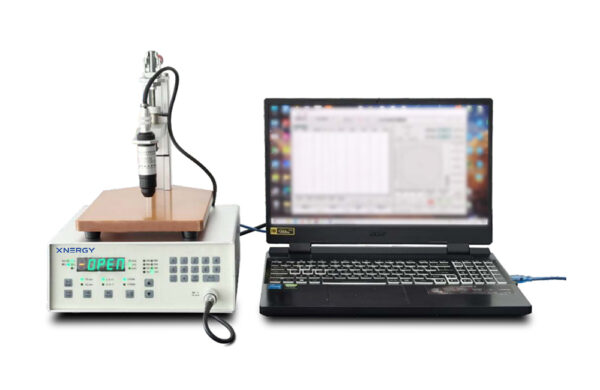

Digital Four-Probe Tester XN-ST2253
SKU: XN-ST2253
The XN-ST2253 Digital Four-Probe Tester is an intelligent multi-purpose instrument for measuring material resistivity and sheet resistance. It supports eight current ranges, USB computer communication, data storage, statistical analysis, and report printing.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Digital Four-Probe Tester
Equipment Type: Digital Four-Probe Tester for Resistivity and Sheet Resistance Measurement
Product Code: XN-ST2253
Brand: Xnergy
Product Introduction:
The XN-ST2253 Digital Four-Probe Tester is a multi-purpose and intelligent measuring instrument based on the four-probe measurement method. It is designed to measure material resistivity and sheet resistance.
With dedicated computer software, test data can be saved, queried, statistically analyzed, and printed as reports. The system consists of a main host, a test stand, and a four-probe assembly. The test stand and probe should be selected according to the material and application requirements.
The instrument is suitable for testing semiconductors, silicon materials, metals, conductive plastics, carbon paper, conductive coatings, ITO films, ceramic coatings, glass coatings, and other conductive materials.
Key Features:
8-range ultra-wide measurement coverage
Resistivity and sheet-resistance measurement
Computer software for data storage, query, statistical analysis, and report printing
USB communication interface
Manual and computer-assisted operation
Compact instrument design
Supports different test stands and probe configurations
Suitable for semiconductor, metal, plastic, film, and coating materials
Measurement System:
Main host: XN-ST2253
Test stands: XN-SZT-C, XN-SZT-F, XN-SZT-K, XN-SZT-G, XN-SZT-L, and XN-SZT-H
Probe assemblies: selected according to the tested material and application
Technical Parameters:
| Parameter | Specification |
|---|---|
| Measurement Quantities | Resistance; resistivity; sheet resistance |
| Test Current Ranges | 1 A; 100 mA; 10 mA; 1.0 mA; 100 μA; 10 μA; 1 μA; 0.1 μA |
| Measurement Units | mΩ; Ω; kΩ |
| Resistance Range | 10.0 × 10⁻⁶ Ω to 200.0 × 10³ Ω |
| Resistivity Range | 10.0 × 10⁻⁶ Ω·cm to 200.0 × 10³ Ω·cm |
| Sheet-Resistance Range | 50 × 10⁻⁶ Ω/□ to 1.0 × 10³ Ω/□ |
| Power Supply | AC 220 V or 110 V, ±10%; 50 Hz |
| Power Consumption | Less than 20 W |
| Host Dimensions | 220 × 245 × 100 mm |
| Net Weight | Less than 2.5 kg |
| Computer Interface | USB |
Typical Applications:
Semiconductor resistivity measurement
Silicon and silicon-carbide material testing
Metal and conductive-plastic testing
Carbon-paper and conductive-film testing
ITO-film measurement
Conductive-coating measurement
Ceramic and glass coating testing
Thin-film and sheet-resistance measurement
Note: The XN-ST2253 Digital Four-Probe Tester should be configured with the appropriate test stand and probe according to the material type, sample shape, conductivity range, and measurement method. Specifications are provided for reference only and may be adjusted according to the selected configuration. For complementary electrochemical and materials characterization, see the CS350M Single-Channel Potentiostat/Galvanostat with EIS, GT14 Sealed Electrochemical Battery Test Bottle, XN-YT08 Swagelok-Type Battery Test Cell, and XN-GT04 Three-Electrode Solid-State Battery Assembly Mold. Explore more equipment in the Testing & Characterization category.
