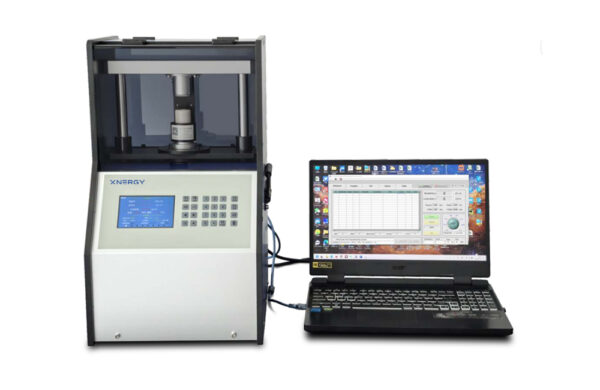

Electric Powder Resistivity Tester XN-ST2742B
SKU: XN-ST2742B
The XN-ST2742B Electric Powder Resistivity Tester uses four-probe and four-terminal methods to measure powder resistivity under pressure.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Electric Powder Resistivity Tester
Equipment Type: Electric Powder Resistivity Tester
Product Code: XN-ST2742B
Brand: Xnergy
Product Introduction:
The XN-ST2742B is an integrated powder resistivity tester for lithium-battery cathode and anode powders, graphite carbon powder, and other conductive or semiconductor powders. It uses four-probe and four-terminal methods with synchronous pressure-resistivity measurement, automatic stepped pressure testing, height and pressure self-calibration, and PC software.
Key Features:
Four-probe and four-terminal measurement
Continuous multi-point pressure-resistivity curve testing
Automatic pressure and height control
Color-screen display and PC reporting
Can also be used as a tablet press or compaction-density tester
Applicable Standards:
GB/T 24521-2018; YS/T 587.6-2006; GB/T 1551-2021; GB/T 30835-2014; GB/T 40007-2021
Technical Parameters:
| Parameter | Specification |
|---|---|
| Resistivity Range | 15.0 × 10⁻⁶ to 200.0 × 10³ Ω·cm |
| Resolution | 1.5 × 10⁻⁶ to 0.1 × 10³ Ω·cm |
| Current Sources | 0.1 μA, 1 μA, 10 μA, 100 μA, 1 mA, 10 mA, 100 mA, 1 A |
| Voltmeter | 20 mV–2.0 V autorange |
| Rated Force | 3,000 N (300 kg) |
| Pressure Range | 0–30 MPa |
| Particle Size | Recommended below 40 mesh; maximum 10 mesh |
| Dimensions | 300 × 330 × 520 mm |
| Weight | 25 kg |
| Power | 220 V ±10%, 50 Hz ±5 Hz, below 200 W |
| Operating Conditions | 0–40 °C; relative humidity ≤60% |
Note: Select the test method and pressure conditions according to the powder sample. Related equipment: XN-ST2742C Automatic Powder Resistivity Tester, XN-ST2722 Powder Resistivity Tester, XN-ST2253 Digital Four-Probe Tester, and XN-ST2921B Fuel Cell Resistance Tester. Explore more in Testing & Characterization.
