Three-Electrode Solid-State Battery Assembly Mold XN-GT04
SKU: XN-GT04
$338.00

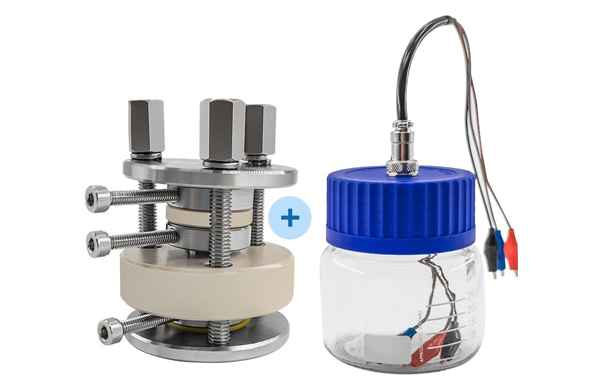

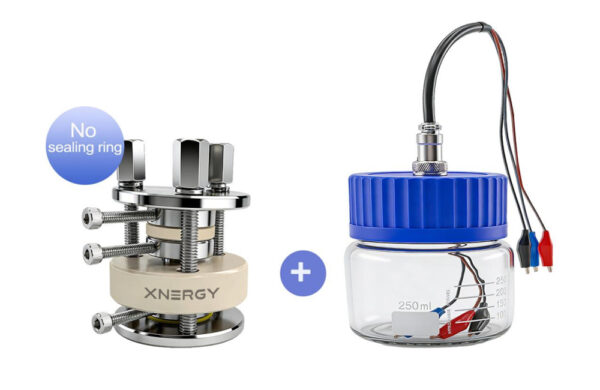

Three-Electrode Solid-State Battery Assembly Mold (XN-GT04) — adds a reference electrode so the anode and cathode electrochemical processes can be resolved individually, beyond what a two-electrode cell reveals. 40 mm PEEK sleeve, 65 mm assembly height, Φ4 mm adjustable minimum inner diameter, ≤800 MPa working pressure, no sealing ring. Built from stainless steel, PEEK and Grade 4 steel; supplied with an electrode post and a 250 mL airtight bottle.
Need a bulk order? Request a competitive quote today!
Three-Electrode Solid-State Battery Assembly Mold – XN-GT04
Mold Type: Solid-State Three-Electrode Mold
Product Code: XN-GT04
Brand: Xnergy
Product Introduction

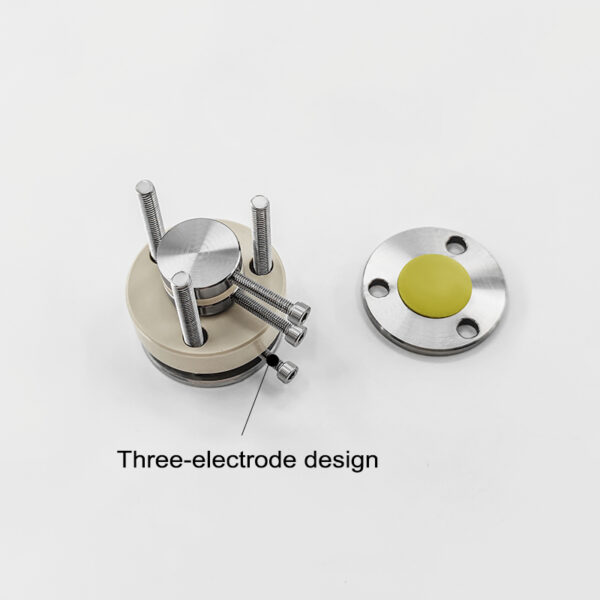

In solid-state batteries (SSBs), the commonly used two-electrode (2E) configuration is often not enough to resolve the electrochemical behavior of the anode and cathode separately. A conventional two-electrode test (cathode vs. anode) measures only the combined performance of the whole cell, while a three-electrode setup adds a reference electrode that lets researchers look into the internal behavior of the cell and isolate the individual electrode processes. The XN-GT04 three-electrode solid-state battery assembly mold is built for this kind of electrochemical testing.
Selected Materials
Stainless steel · PEEK · Grade 4 steel
Specification
| Parameter | Specification |
|---|---|
| Model | XN-GT04 |
| PEEK Sleeve Diameter | 40 mm |
| Assembly Height | 65 mm |
| Minimum Inner Diameter | Φ4 mm (adjustable) |
| Material | Stainless Steel, PEEK, Grade 4 Steel |
| Maximum Working Pressure | ≤800 MPa |

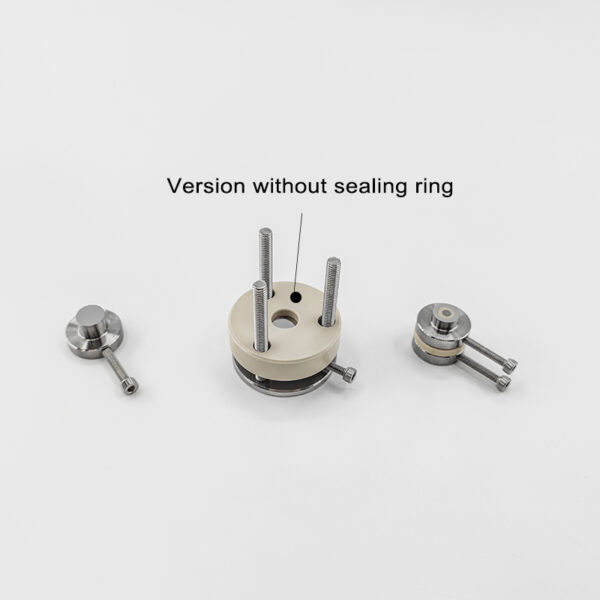

| Sealing Ring | None |

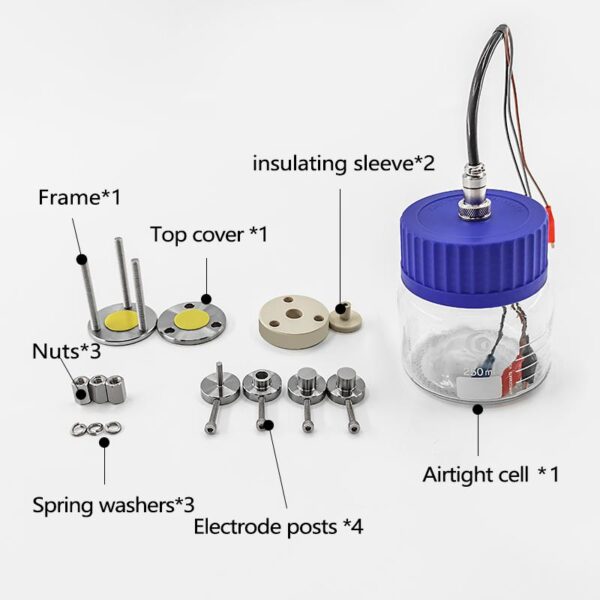

Package Contents
• Solid-state three-electrode mold (full set)
– Electrode post

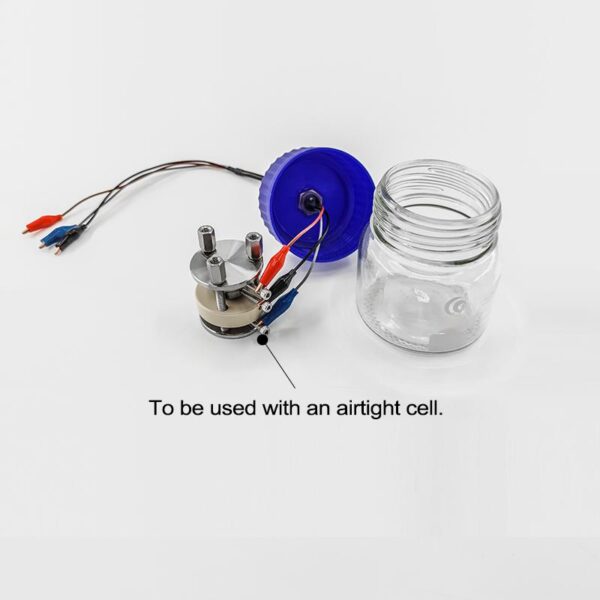

– Airtight bottle (250 mL)
Customization
Customizable and modifiable as required; the frame can be raised at no extra cost.
Note: For solid-state cell assembly, see the XN-GT01 and XN-GT02 assembly molds. For the high-pressure version, see the XN-GT03. For a Swagelok-type three-electrode cell, see the XN-YT02. Browse the full range under Battery Molds.
| Weight | 0.5 kg |
|---|
