Swagelok Metal-Air Battery Test Cell XN-YT07

Swagelok Metal-Air Battery Test Cell XN-YT07

Mold Type: Swagelok Metal-Air Battery Test Cell
Product Code: XN-YT07
Brand: Xnergy

Product Introduction

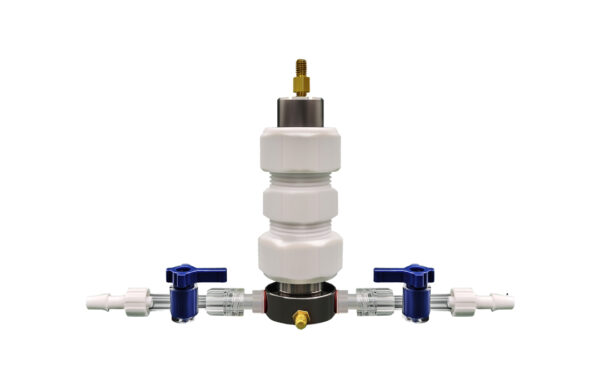

The XN-YT07 is a Swagelok-type metal-air battery test cell. A Φ2 mm pore together with an available gas inlet/outlet gives the electrode controlled access to air or a specified gas, making the cell well suited to metal-air battery research.

Key Features

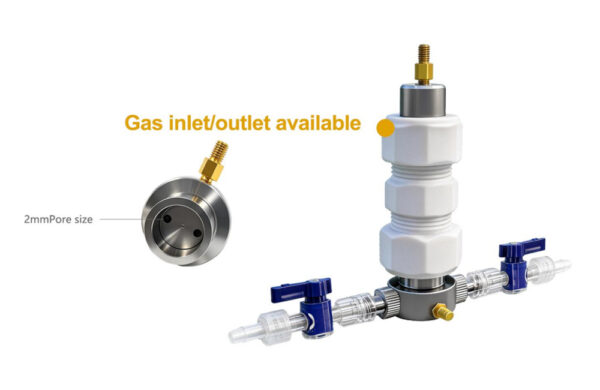

• Gas inlet/outlet available — for supplying air or a specified gas to the cell.
– Φ2 mm pore giving the electrode access to the gas phase.
– Φ20 mm electrode, customizable.
– PTFE and titanium-alloy construction for operation up to ≤200 °C and ≤10 MPa.

Selected Materials

PTFE · Titanium alloy

Specification

Package Contents

• Two-way valve ×2
– Luer male joint ×2
– Round nut ×2
– Sealing ring ×2
– Adapter sleeve ×1
– Electrode column ×2

Application Areas

• New Energy
– Lithium Battery Research
– Research Projects
– Electrochemistry
– Mold Customization
– Solid-State Battery

Customization

Customizable on request — the outer diameter, height and hole-position diameters can all be customized, with inner diameter adjustable from 10 to 20 mm. Contact us for customization.

Note: For a standard Swagelok-type test cell, see the XN-YT08; for a Swagelok three-electrode cell, the XN-YT02; and for in-situ dendrite observation, the XN-YT09. Browse the full range under Swagelok-Type Cells.
