Dual-Electrolyte Swagelok Battery Mold XN-YT05

Dual-Electrolyte Swagelok Battery Mold XN-YT05

Mold Type: Dual-Electrolyte Swagelok Battery Mold
Product Code: XN-YT05
Brand: Xnergy

Product Introduction

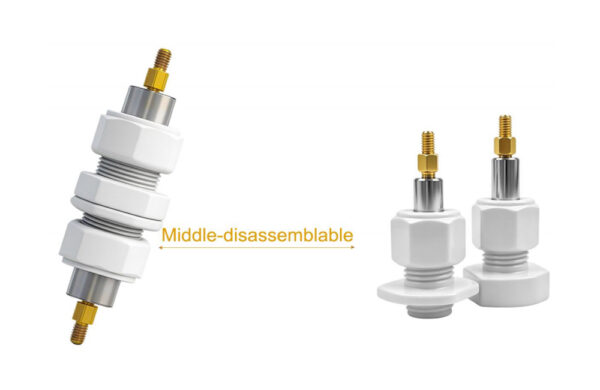

The XN-YT05 is a Swagelok-type dual-electrolyte battery mold with a middle-disassemblable design, allowing the cell to be separated in the middle for two-electrolyte (dual-chamber) experiments. It accepts a range of electrode diameters and electrode materials for flexible electrochemical research.

Key Features

• Middle-disassemblable design — the mold separates in the middle, supporting dual-electrolyte experiments.
– Multiple electrode diameters — Φ10, 12, 14, 16, 18 and 20 mm.
– Electrode material options — titanium alloy, pure titanium and high-purity molybdenum.
– PTFE and copper construction for operation up to ≤200 °C and ≤10 MPa.

Selected Materials

PTFE · Copper (body) · Electrode options: titanium alloy, pure titanium, high-purity molybdenum

Specification

Application Areas

• New Energy
– Lithium Battery Research
– Research Projects
– Electrochemistry
– Mold Customization
– Solid-State Battery

Customization

Customizable upon request — electrode diameter and electrode material can be selected to suit your experiment.

Note: For a standard Swagelok-type test cell, see the XN-YT08; for a metal-air test cell, the XN-YT07; and for a liquid battery mold, the XN-YT06. Browse the full range under Swagelok-Type Cells.
