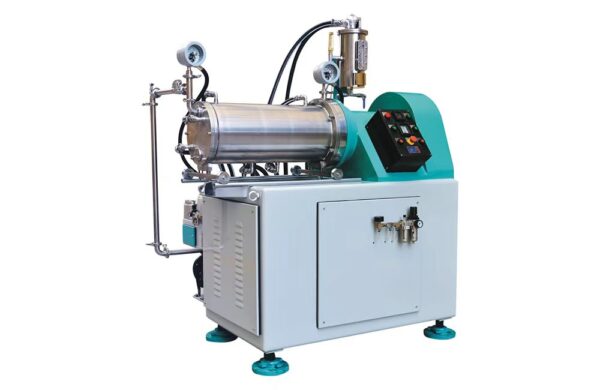

Pilot-Scale Sand Mill XN-PSM Series
SKU: XN-PSM
Pilot-Scale Sand Mill XN-PSM Series is a 6–30 L wet-grinding system for pilot production and process scale-up. It uses small grinding media and high energy input to generate strong impact and shear forces for fine particle processing.
The series supports 0.1–0.8 mm grinding media and contamination-sensitive material configurations for battery materials and other inorganic nanopowder applications.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Pilot-Scale Sand Mill
Equipment Type: Pilot-Scale Wet Nano-Grinding Sand Mill
Product Code: XN-PSM Series
Brand: Xnergy
Product Introduction:
The XN-PSM Series Pilot-Scale Sand Mill is designed for 6–30 L wet-grinding applications during pilot production and process scale-up. Small grinding media combined with high energy input generates strong impact and shear forces for fine and uniform particle processing.

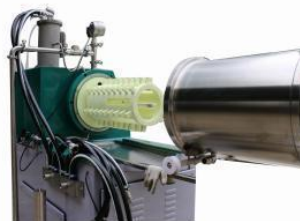

An optimized pin-type grinding structure supports high-speed operation, while the centrifugal separation system is designed for stable processing with small zirconia media. The system is intended to bridge laboratory process development and larger production grinding.
Key Features:
6–30 L pilot-scale wet-grinding range
Supports 0.1–0.8 mm grinding media
High-energy impact and shear grinding
Optimized pin-type grinding structure
Centrifugal media-separation system
Stable operation with small zirconia grinding media
Adjustable grinding-chamber and internal configuration options
Contamination-sensitive wetted-part material options
Suitable for battery materials and inorganic nanopowders
Confirmed Specifications:
| Parameter | Specification |
|---|---|
| Series Capacity | 6–30 L |
| Grinding Method | Wet grinding |
| Grinding Media Size | 0.1–0.8 mm |
| Grinding Structure | Pin-type rotor system |
| Media Separation | Centrifugal separation |
| Typical Grinding Target | Fine particle processing toward the 50 nm range, depending on material and process conditions |
Material Configuration Options:

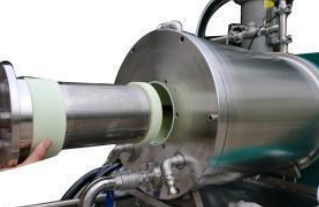

For contamination-sensitive processing, grinding pins can be configured in zirconia or tungsten carbide. Grinding-chamber options include silicon carbide and polyurethane, while the discharge separator can use a specialized ceramic configuration. Final wetted-part selection should be confirmed for the intended chemistry and abrasion requirements.
Typical Applications:
Lithium battery materials
Inorganic nanopowders
Pilot-scale formulation development
Wet-grinding process scale-up
Electronic and ceramic materials
Contamination-sensitive fine-particle processing
Note: Final particle size and throughput depend on feed properties, concentration, viscosity, initial particle size, grinding-media selection, rotor configuration, processing time, and operating conditions. Confirm the appropriate model and wetted-part materials before ordering. Related equipment includes the XN-LSM-P Laboratory Nano Sand Mill, XN-LSM Laboratory Nano Sand Mill, XN-MS Nano Sand Mill, XN-VSM Ultrafine Vertical Sand Mill, and XN-50EP Ceramic Three Roll Mill.
