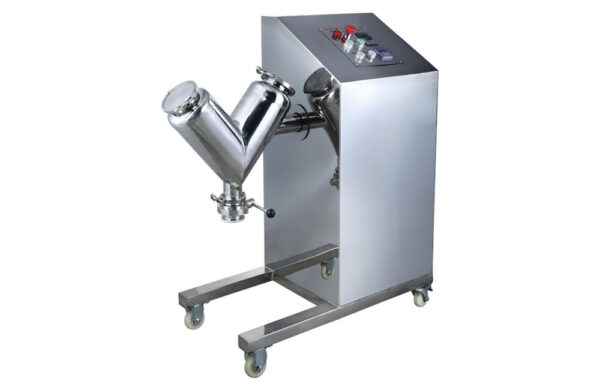

V-Type Mixer XN-V Series
SKU: XN-V
V-Type Mixer XN-V Series blends dry powders and granules in a rotating V-shaped stainless steel barrel. As the barrel turns, material is repeatedly split and recombined for uniform mixing, reaching a homogeneity rate of up to 98%.
It runs quietly and stably, supports vacuum feeding and disc-valve discharging for dust-free operation, and offers forward/reverse rotation via panel control. The series ranges from 5 L to 1000 L total volume.
Need a bulk order or custom specification? Request a competitive quote today!
Name: V-Type Mixer XN-V Series
Equipment Type: V-Type Mixer
Product Code: XN-V
Brand: Xnergy
Product Introduction:
The XN-V V-Type Mixer blends dry powders and granules in a rotating V-shaped stainless steel barrel. As the barrel turns, the material is repeatedly split and recombined for uniform mixing, reaching a homogeneity rate of up to 98%. The mixer has a compact structure and runs quietly and stably, supports vacuum feeding and disc-valve discharging for dust-free operation, and offers forward and reverse rotation through panel control. The barrel is precision-polished with no dead corners, so there is no material retention and discharging and cleaning are easy. The series ranges from 5 L to 1000 L total volume.
Key Features:
Compact structure, simple and quiet operation, stable running
Suitable for mixing a wide range of materials, with a homogeneity rate up to 98%
Stainless steel construction — attractive, washable, and easy to clean for mass production
Supports vacuum feeding and disc-valve discharging for dust-free operation
Forward and reverse rotation, adjustable via panel control
Precision-polished mixing barrel with no dead corners — no material retention, easy discharging and cleaning
Tumbling action keeps material largely free from centrifugal force — no gravity segregation, stratification, or accumulation
Technical Specifications:
| Parameter | XN-V-5L | XN-V-10L | XN-V-20L | XN-V-50L | XN-V-100L | XN-V-200L | XN-V-300L | XN-V-500L | XN-V-1000L |
|---|---|---|---|---|---|---|---|---|---|
| Total Volume (L) | 5 | 10 | 20 | 50 | 100 | 200 | 300 | 500 | 1000 |
| Effective Volume | ≤ 50% | ≤ 50% | ≤ 50% | ≤ 50% | ≤ 50% | ≤ 50% | ≤ 50% | ≤ 50% | ≤ 50% |
| Load Capacity Limit | Within 20 kg | Within 20 kg | Within 30 kg | Within 30 kg | Within 30 kg | Within 60 kg | Within 90 kg | Within 150 kg | Within 300 kg |
| Spindle Speed (rpm) | 13 | 13 | 13 | 13 | 15 | 15 | 15 | 13 | 10 |
| Power (kW) | 0.75 | 0.75 | 0.75 | 0.75 | 1.1 | 1.5 | 1.5 | 1.5 | 3 |
| Voltage | Configurable according to local electrical standards. | Configurable according to local electrical standards. | Configurable according to local electrical standards. | Configurable according to local electrical standards. | Configurable according to local electrical standards. | Configurable according to local electrical standards. | Configurable according to local electrical standards. | Configurable according to local electrical standards. | Configurable according to local electrical standards. |
| Weight (kg) | 120 | 120 | 120 | 120 | 180 | 260 | 320 | 550 | 950 |
Application Areas:
Uniform dry blending of powders and granules
Mixing of active materials, conductive additives, and other powder formulations
Pharmaceutical, chemical, food, and similar powder mixing
Dust-free mixing with vacuum feeding and disc-valve discharging
Battery R&D and production — homogeneous blending of cathode and anode powder formulations
Maintenance:
Clean the barrel and disc valve thoroughly after each use
Inspect the seals, valve, and drive before operation
Confirm the load is within the rated capacity and the lid is secured
Keep the machine clean and dry when not in use
Safety Notes:
Keep the barrel securely closed during operation
Do not exceed the rated load capacity or effective volume
Lock the casters before running
Follow lockout procedures during loading, discharging, and cleaning
Specifications are provided for reference and may be adjusted to suit specific process requirements. Model and configuration are specified at order time.
Note: Specifications listed above are typical and for reference only. Actual performance depends on the material and load. The XN-V V-Type Mixer gently and uniformly blends dry powders and granules in a rotating V-shaped barrel, reaching up to 98% homogeneity without grinding the material — ideal for combining active materials, conductive additives, and binders before further processing. It complements Xnergy’s grinding equipment: powders prepared on mills such as the planetary XN-YXQM Series can be blended here into uniform formulations. In battery R&D it is widely used to mix Cathode Materials and Anode Materials with additives. Xnergy also offers 3D mixers for applications that need multi-directional, three-dimensional blending.
