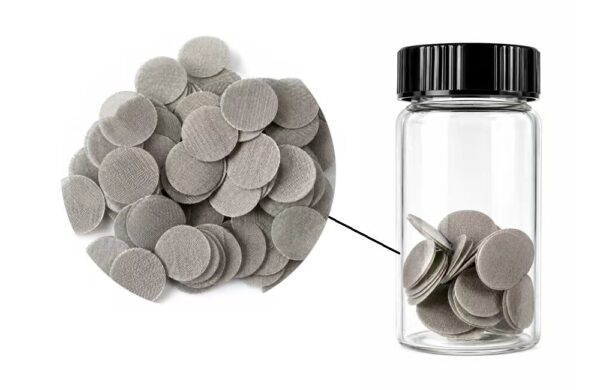

316 Stainless Steel Mesh Current Collector Discs XN-316MD
SKU: XN-316MD
316 Stainless Steel Mesh Current Collector Discs XN-316MD is a degreased 316 stainless steel mesh disc designed as a current collector for coin-type zinc-ion battery research. The documented standard specification is 20 μm thickness, 250 mesh and Ø12 mm diameter. The material is suitable for acidic and alkaline aqueous systems, and other disc sizes can be customized.
Need a custom disc diameter? Request a competitive quote today! Please specify the required diameter and experimental system.
316 Stainless Steel Mesh Current Collector Discs XN-316MD
Product Type: 316 Stainless Steel Mesh Current Collector Discs
Product Code: XN-316MD
Brand: Xnergy
Product Introduction
XN-316MD mesh discs are cut from 316 stainless steel mesh for use as current collectors in coin-type zinc-ion battery experiments. The discs are degreased and cleaned for convenient laboratory use. The documented standard configuration is 20 μm thickness, 250 mesh and Ø12 mm diameter, with other diameters available on request.
Core Features
- 316 stainless steel construction
- 20 μm mesh thickness
- Documented standard specification of 250 mesh
- Standard Ø12 mm circular-disc format
- Suitable for acidic and alkaline aqueous systems
- Degreased and cleaned for convenient experimental use
- Custom diameters available upon request
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Code | XN-316MD |
| Product Form | Circular metal mesh current collector discs |
| Material | 316 stainless steel |
| Mesh Count | 250 mesh |
| Thickness | 20 μm |
| Standard Diameter | Ø12 mm |
| Custom Sizes | Available upon request |
| Surface Preparation | Degreased and cleaned |
| Corrosion Resistance | Suitable for acidic and alkaline systems |
| Documented Application | Current collector for coin-type zinc-ion batteries |
Applications
- Coin-type zinc-ion battery current collectors
- Aqueous acidic and alkaline battery research
- Electrochemical materials evaluation
- Laboratory current-collector sample preparation
Note: 20 μm thickness, Ø12 mm diameter and 250 mesh are the documented standard specification. Other diameters can be customized; please confirm the required size and experimental system when requesting a quotation. Browse Metal Foams & Meshes or compare the XN-MMS Custom Metal Mesh Sheets and Discs and XN-CMD Copper Mesh Electrode Discs.
