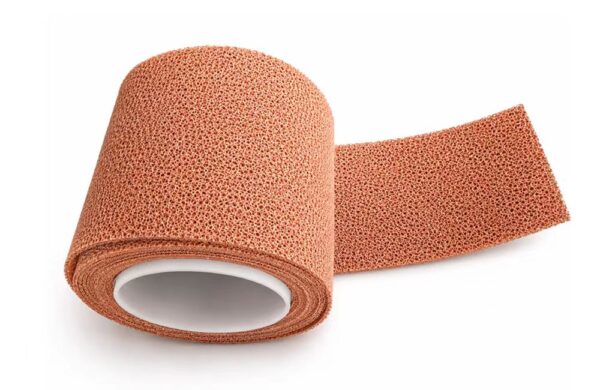

Open-Cell Copper Foam Roll XN-CFR
SKU: XN-CFR
Open-Cell Copper Foam Roll XN-CFR is a porous copper roll with 30–140 PPI, 95%–98% porosity, ≥98% through-porosity, 0.8–10 mm thickness, and a maximum width of 450 mm.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Open-Cell Copper Foam Roll XN-CFR
Material Type: Open-Cell Copper Foam
Product Code: XN-CFR
Brand: Xnergy
Product Introduction:
XN-CFR is an open-cell copper foam supplied in roll or sheet form. Its interconnected porous structure combines high porosity, fluid permeability, electrical conductivity, thermal conductivity, and a large surface area. The material can be cut, bent, stamped, and formed for research and industrial component designs.
Core Features:
- Interconnected open-cell porous copper structure
- 30–140 PPI pore-density range
- 95%–98% porosity and ≥98% through-porosity
- Roll or sheet supply form with widths up to 450 mm
- Conductive and thermally conductive porous scaffold
- Cutting, stamping, bending, and forming capability
Technical Specifications:
| Parameter | Specification |
|---|---|
| Product Type | Open-cell copper foam roll or sheet |
| Product Code | XN-CFR |
| Brand | Xnergy |
| Thickness Range | 0.8–10 mm |
| Pore Density | 30–140 PPI |
| Porosity | 95%–98% |
| Through-Porosity | ≥98% |
| Pore Diameter | 0.3–7 mm (10–140 PPI) |
| Areal Density | 100–2000 g/m² |
| Bulk Density | 0.1–2.0 g/cm³ |
| Supply Form | Roll or sheet |
| Maximum Width | 450 mm |
| Listed Cut Sizes | 120 × 120 × 0.2 mm; 120 × 240 × 1 mm; 240 × 240 × 1.5 mm |
| Custom Dimensions | Available upon request |
Applications:
- Battery electrode scaffolds, including zinc-air batteries and electric-double-layer capacitors
- Catalyst carriers and chemical-reaction supports
- Heat dissipation for motors, appliances, and flame-isolation components
- Medical filtration and water purification
- Sound absorption and vibration damping
- Pressure-reduction and buffering components
Note: Select thickness, PPI, density, width, and cut dimensions according to the intended application. Custom sizes are available upon request. See the Copper Foam category, the related XN-CuF Copper Foam Sheet, and XN-GCFR Graphene-Coated Copper Foam Roll.
