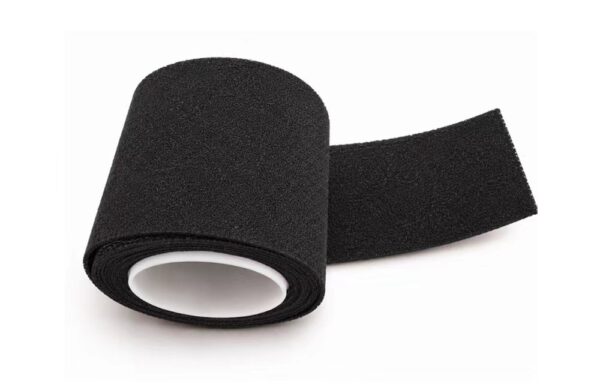

Graphene-Coated Copper Foam Roll XN-GCFR
SKU: XN-GCFR
Graphene-Coated Copper Foam Roll XN-GCFR combines a CVD-grown graphene network with a three-dimensional copper-foam scaffold in a flexible roll format. The listed samples have a 1.7 mm thickness and multiple cut sizes.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Graphene-Coated Copper Foam Roll XN-GCFR
Material Type: Graphene-Coated Copper Foam Roll
Product Code: XN-GCFR
Brand: Xnergy
Product Introduction:
XN-GCFR is produced by growing a graphene coating on a porous copper-foam substrate by chemical vapor deposition. The foam scaffold supports an interconnected three-dimensional graphene network. The material is supplied in a flexible roll form and can be cut into the listed research sample sizes.
Core Features:
- CVD-grown graphene coating on copper foam
- Three-dimensional interconnected porous network
- Flexible roll form for convenient cutting
- Large accessible surface architecture
- Conductive and lightweight porous scaffold
- Standard and custom sample dimensions available
Technical Specifications:
| Parameter | Specification |
|---|---|
| Product Type | Graphene-coated three-dimensional copper foam roll |
| Product Code | XN-GCFR |
| Brand | Xnergy |
| Preparation Method | Chemical vapor deposition (CVD) |
| Substrate | Copper foam |
| Structure | Three-dimensional interconnected porous graphene network |
| Thickness | 1.7 mm |
| Available Dimensions | 1.7 × 10 × 20 mm; 1.7 × 20 × 20 mm; 1.7 × 30 × 20 mm; 1.7 × 50 × 50 mm; 1.7 × 100 × 50 mm; 1.7 × 100 × 100 mm |
| Custom Dimensions | Available upon request |
Applications:
- Supercapacitor research
- Lithium-ion battery research
- Aluminum-ion battery research
- Sodium-ion battery research
- Electrochemical energy-storage components
- Chemical sensors and gas sensors
Note: Dimensions are presented in the same order as the source selection list. Confirm the required cut dimensions when requesting a quotation. Material performance depends on sample geometry, coating condition, electrode design, and test configuration. See the Copper Foam category, the related XN-GCF Graphene-Coated Copper Foam, and the XN-CuF Copper Foam Sheet.
