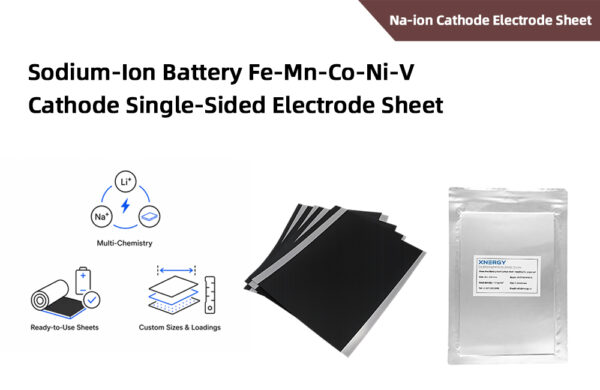

Sodium-Ion Battery Fe-Mn-Co-Ni-V Cathode Single-Sided Electrode Sheet

Sodium-Ion Battery Fe-Mn-Co-Ni-V Cathode Single-Sided Electrode Sheet

SKU: XN-FMCNV-ES

Sodium-Ion Battery Fe-Mn-Co-Ni-V Cathode Single-Sided Electrode Sheet — layered oxide Na-ion cathode on 16 μm Al foil, 241 × 200 mm; coating 14.5 ± 0.2 mg/cm², compacted density 2.6 ± 0.1 g/cm³; AM content 95.5%; 5 sheets/pack.

Reference capacity 120 mAh/g at 0.1C (2.0–4.0 V). Moisture-sensitive — store in drying oven at 45°C or vacuum.

Need a bulk order? Request a competitive quote today!

Name: Sodium-Ion Battery Fe-Mn-Co-Ni-V Cathode Single-Sided Electrode Sheet

Material Type: Layered Oxide Sodium-Ion Cathode (Fe-Mn-Co-Ni-V) on 16 μm Aluminum Foil, Single-Sided Coating

Product Code: XN-FMCNV-ES

Product Introduction:

This sodium-ion battery cathode electrode sheet is based on a layered oxide active material with Fe, Mn, Co, Ni, and V composition, coated on 16 μm aluminum foil. The single-sided, calendered electrode features a coating areal density of 14.5 ± 0.2 mg/cm² and a compaction density of 2.6 ± 0.1 g/cm³. Reference specific capacity is 120 mAh/g at 0.1C (2.0–4.0 V). Active material mass ratio is 95.5%. Sheet size is 241 mm × 200 mm with 12.5 mm uncoated edges on each side. Supplied 5 sheets/pack. This material is moisture-sensitive — proper dry storage is required.

Key Features:

Layered oxide Na-ion cathode — Fe-Mn-Co-Ni-V multi-element composition
Reference specific capacity 120 mAh/g at 0.1C (2.0–4.0 V)
Single-sided calendered coating — areal density 14.5 ± 0.2 mg/cm²
Compaction density 2.6 ± 0.1 g/cm³
Current collector: 16 μm aluminum foil, 4.22 mg/cm²
Active material mass ratio 95.5%
Electrode size: 241 × 200 mm (coating area 241 × 175 mm, 12.5 mm uncoated edges on each side)
Moisture-sensitive — requires drying oven at 45°C or vacuum environment
Packaging: 5 sheets/pack

Specifications:

Parameter Specification
Electrode Sheet Size 241 mm (L) × 200 mm (W)
Coating Area Size 241 mm (L) × 175 mm (W) (12.5 mm uncoated edge on each side)
Coating Type Single-sided coating (calendered)
Current Collector Thickness (μm) 16
Coating Areal Density (mg/cm²) 14.5 ± 0.2
Compaction Density (g/cm³) 2.6 ± 0.1
Collector Areal Density (mg/cm²) 4.22
Active Material Mass Ratio 95.5%
Voltage Range 2.0–4.0 V
Reference Specific Capacity 120 mAh/g (0.1C)
Packaging 5 sheets/pack

Notes:

  1. The active material mass ratio is based on actual measurement; the above parameters are for reference only.
  2. Once opened, please store the electrode sheet in a sealed condition.
  3. The electrode sheet is moisture-sensitive. It is recommended to store it in a drying oven at 45°C or in a vacuum environment.

Storage & Handling:

Store in a drying oven at 45°C or in a vacuum-sealed environment. The electrode sheet is moisture-sensitive — minimize exposure to ambient humidity. Keep sealed until immediately before use. Handle by the edges to avoid contaminating the active coating.

Note: Specifications are for reference only. Actual electrochemical performance depends on counter electrode, electrolyte, separator, cell assembly, formation protocol, and testing conditions. For sodium-ion cathode active material powders, see Xnergy’s Cathode Material Powder category. For sodium-ion anode materials, see the Anode Materials category. For coin cell assembly components, see Coin Cells & Hardware.
