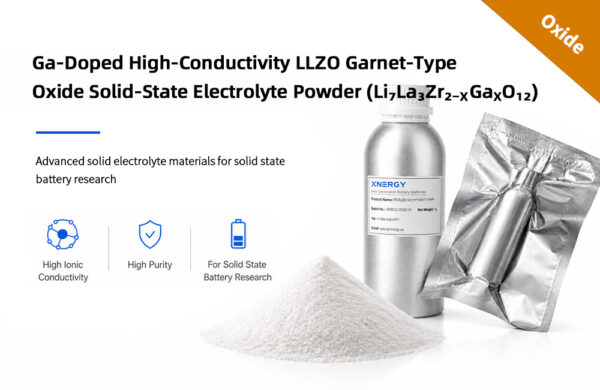

Xnergy Ga-doped high-conductivity LLZO garnet-type oxide solid-state electrolyte powder, Li₇La₃Zr₂₋ₓGaₓO₁₂

Ga-Doped High-Conductivity LLZO Garnet-Type Oxide Solid-State Electrolyte Powder (Li₇La₃Zr₂₋ₓGaₓO₁₂)

SKU: XN-LLZO-GA

Ga-Doped High-Conductivity LLZO Garnet-Type Oxide Solid-State Electrolyte Powder (Li₇La₃Zr₂₋ₓGaₓO₁₂) is a white garnet-type oxide solid electrolyte powder doped with gallium (Ga). Confirmed inquiry grades: 300 nm / 0.3 µm, 10 µm.

Need a bulk order or custom specification? Request a competitive quote today!

Name: Ga-Doped High-Conductivity LLZO Garnet-Type Oxide Solid-State Electrolyte Powder (Li₇La₃Zr₂₋ₓGaₓO₁₂)
Material Type: Garnet-Type Oxide Solid-State Electrolyte Powder
Product Code: XN-LLZO-GA
Dopant System: gallium (Ga)
Chemical Formula: Li₇La₃Zr₂₋ₓGaₓO₁₂
Brand: Xnergy

Product Introduction:

This LLZO family is a garnet-type oxide solid electrolyte doped with gallium (Ga) for all-solid-state lithium battery, lithium-metal battery, ceramic electrolyte, and composite electrolyte research. The confirmed Ga-doped grades specify pellet ionic conductivity ≥1.50 mS/cm with a typical value of 1.60 mS/cm.

Core Features:

  • White homogeneous garnet-type LLZO powder
  • Main phase referenced to PDF#80-0457
  • Multiple particle-size grades supplied as inquiry options, not variations
  • Per-grade D50, pH, moisture and pellet conductivity values preserved
  • Pellet conductivity tested by EIS at 25 ± 2 °C
  • Quote-only supply with custom specification discussion

Particle-Size and Test Matrix:

Inquiry Grade D50 Basis D50 Specification Typical D50 Secondary-Particle D50 pH Limit / Typical Moisture Limit / Typical Pellet Ionic Conductivity Spec / Typical Evidence
300 nm / 0.3 µm Primary particles 0.30 ± 0.06 µm 0.31 µm approximately 7 µm ≤12.5 / 11.9 ≤0.50 wt% / 0.20 wt% ≥1.50 mS/cm / 1.60 mS/cm Dedicated family/size file
10 µm Bulk powder 10.0 ± 2.0 µm 10.6 µm Not stated ≤12.5 / 12.0 ≤0.20 wt% / 0.10 wt% ≥1.50 mS/cm / 1.60 mS/cm Dedicated family/size file

Grade scope: Only 300 nm and 10 µm are confirmed standard Ga-doped grades. Other sizes may be discussed on request but are not presented as confirmed standard specifications.

Applications:

  • All-solid-state lithium battery electrolyte research
  • Lithium-metal battery and garnet-electrolyte studies
  • Ceramic pellet preparation and sintering development
  • Polymer-ceramic composite electrolyte formulation
  • Cathode-composite and interfacial engineering research

Note: Ionic conductivity values refer to ceramic pellets measured by EIS at 25 ± 2 °C; they are not direct powder measurements. The powder is moisture-sensitive. Keep sealed and dry, and vacuum-dry before use when required by the process. Actual performance depends on dispersion, pellet formation, sintering, density, electrode interfaces, and test method. Explore the Oxide category and Solid-State Electrolytes.
