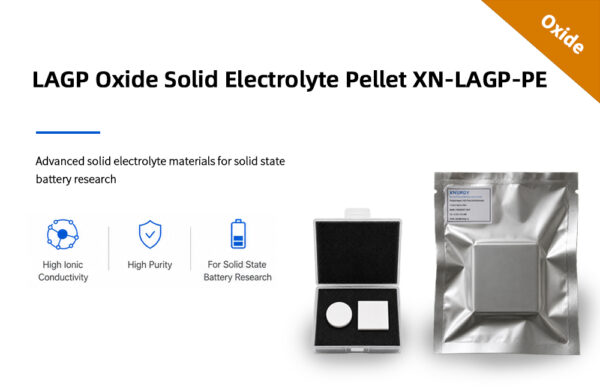

LAGP Oxide Solid Electrolyte Pellet XN-LAGP-PE
SKU: XN-LAGP-PE
LAGP Oxide Solid Electrolyte Pellet XN-LAGP-PE is a customizable LAGP oxide solid electrolyte pellet with a 12–76 mm diameter or side-length range, 100–500 μm thickness, ≥95% relative density, and ≥0.30 mS/cm ionic conductivity.
Standard configuration: Round pellet. For other shapes, please contact us or leave a note with your requirements.
Need a bulk order or custom specification? Request a competitive quote today!
Name: LAGP Oxide Solid Electrolyte Pellet XN-LAGP-PE
Material Type: LAGP Oxide Solid Electrolyte Pellet
Product Code: XN-LAGP-PE
Material: LAGP
Brand: Xnergy
Product Introduction:
XN-LAGP-PE is a customizable LAGP oxide solid-state electrolyte ceramic pellet for solid-state battery, ceramic electrolyte, and materials-characterization research. The supplied specification lists a 12–76 mm diameter or side-length range and 100–500 μm thickness.
Core Features:
- Customizable LAGP oxide electrolyte pellet
- Uniform color with no visible cracks
- 12–76 mm diameter or side-length range
- 100–500 μm thickness range
- ≥3.258 g/cm³ density and ≥95% relative density
- ≥0.30 mS/cm ionic conductivity by EIS at 25 ± 2 °C
- 90 ± 10 MPa flexural strength by three-point bending
- XRD and EIS characterization figures supplied
Technical Specifications:
| Parameter | Specification |
|---|---|
| Product Type | LAGP oxide solid electrolyte pellet |
| Product Code | XN-LAGP-PE |
| Brand | Xnergy |
| Material | LAGP |
| Customization | Available |
| Appearance | Uniform color; no visible cracks |
| Diameter / Side Length | 12–76 mm |
| Thickness | 100–500 μm |
| Density | ≥3.258 g/cm³ |
| Density Test Method | Archimedes drainage method |
| Relative Density | ≥95% |
| Main Crystal Phase | PDF#80-1924 |
| Phase Test Method | XRD |
| Ionic Conductivity | ≥0.30 mS/cm |
| Conductivity Test Condition | EIS; ceramic pellet; 25 ± 2 °C |
| Flexural Strength | 90 ± 10 MPa |
| Strength Test Method | Three-point bending |

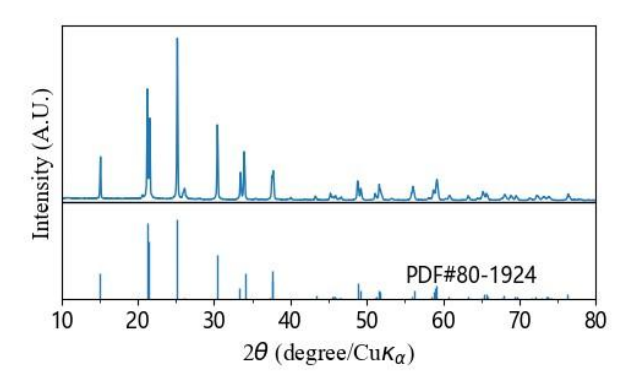

X-Ray Diffraction:
The supplied XRD pattern is shown with the PDF#80-1924 reference pattern for phase comparison.

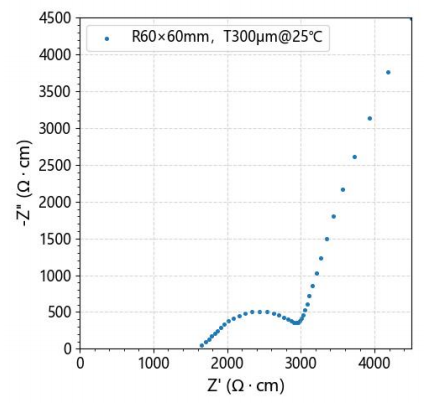

Electrochemical Impedance Spectroscopy:
The supplied EIS plot is labeled for an R60 × 60 mm, T300 μm sample measured at 25 °C.
Applications:
- All-solid-state battery electrolyte-pellet research
- Ceramic electrolyte separator evaluation
- Electrode–electrolyte interface studies
- Electrochemical impedance and materials characterization
- Custom-format laboratory cell development
Note: The standard specification for this product is a round pellet. For other shapes, please contact us or leave a note with your requirements. Reported values are based on the supplied product specification. Confirm final dimensions, thickness, and acceptance criteria when requesting a custom pellet. Actual performance depends on component geometry, surface preparation, electrode contact, cell design, temperature, and test method. Explore the Oxide category, Solid-State Electrolytes, and the related LAGP electrolyte powder.
