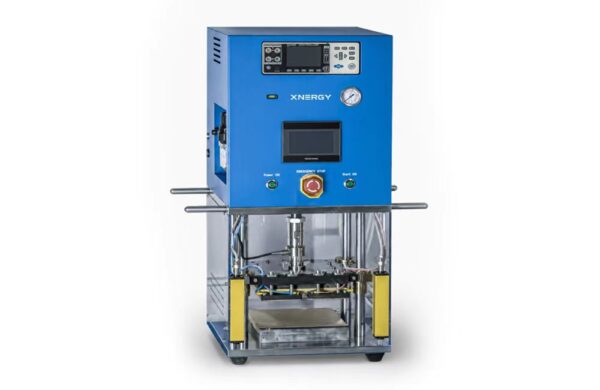

Battery Hot-Press Micro-Short-Circuit Tester XN-HATE-200
SKU: XN-HATE-200
Battery Hot-Press Micro-Short-Circuit Tester XN-HATE-200 combines controlled hot pressing with insulation-resistance and leakage-current testing to screen pouch cells for micro-short circuits while stabilizing cell shape under adjustable temperature and pressure.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Battery Hot-Press Micro-Short-Circuit Tester XN-HATE-200
Equipment Type: Battery Hot-Press Micro-Short-Circuit Testing Machine
Product Code: XN-HATE-200
Brand: Xnergy
Product Introduction:
The XN-HATE-200 integrates hot pressing, pressure control and precision electrical insulation testing for pouch-cell and battery production or research. Based on leakage current and insulation resistance, it identifies micro-short-circuit conditions while the cell is tested under controlled pressure and temperature.
Key Features:
- Integrated hot pressing and micro-short-circuit screening
- Adjustable DC test voltage from 0 to 500 V
- Precision insulation-resistance and leakage-current measurement with automatic alarm
- Proportional-valve pressure control with sensor feedback
- Adjustable test pressure, temperature and hot-press time
- Manual and automatic operating modes
- Digital display of set and actual temperature
- Light-curtain protection for safer operation
Technical Specifications:
| Parameter | Specification |
|---|---|
| Test Principle | High-voltage insulation-resistance and leakage-current testing |
| Output Voltage | DC 0–500 V, adjustable |
| Maximum Measurable Leakage Current | 50 μA |
| Maximum Measurable Resistance | 199 MΩ |
| Maximum Test Pressure | 900 ± 5 kg |
| Maximum Heating Temperature | 120 ± 2.5 °C |
| Test Stroke | 0–70 mm; battery thickness must be below 65 mm |
| Hot-Press Area | 200 × 200 mm |
| Platen Material | H62 brass |
| Platen Parallelism | ≤40 μm |
| Applicable Product Size | ≤200 × 200 × 65 mm |
| Compressed-Air Supply | 0.5–0.8 MPa |
| Power | 1.5 kW |
| Electrical Standard | Configured to local electrical standards |
| Machine Dimensions | 450 × 450 × 900 mm |
| Net Weight | 119 kg |
Applications:
Pouch-cell micro-short-circuit screening
Battery insulation-resistance testing
Cell hot pressing and shape stabilization
Battery production and laboratory quality control
Note: Test fixtures and process settings can be adapted to the required cell format and local electrical standards. Related equipment: Battery Cell Hot Press Forming Machine XN-HA-200, Secondary Vacuum Sealing Machine XN-FVHS-400, Secondary Vacuum Sealing Machine XN-FVHS-300, Secondary Vacuum Sealing Machine XN-FVHS-200.
