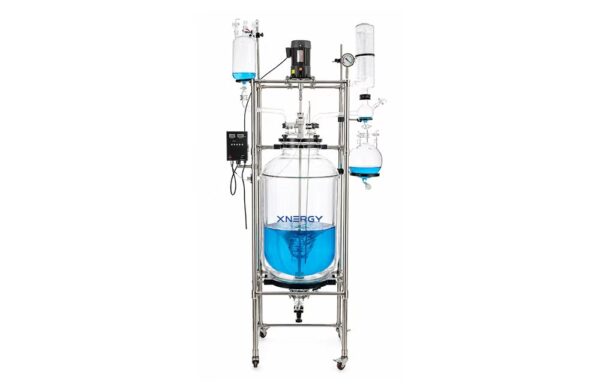

Xnergy XN-GR Series Jacket Glass Reactor 5–200L
Xnergy XN-GR Laboratory Jacket Glass Reactor

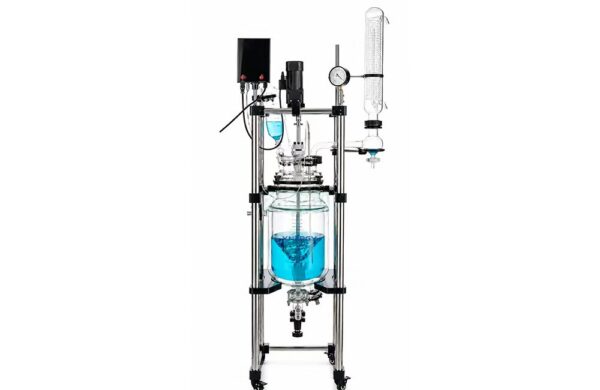

Xnergy XN-GR Pilot Jacket Glass Reactor

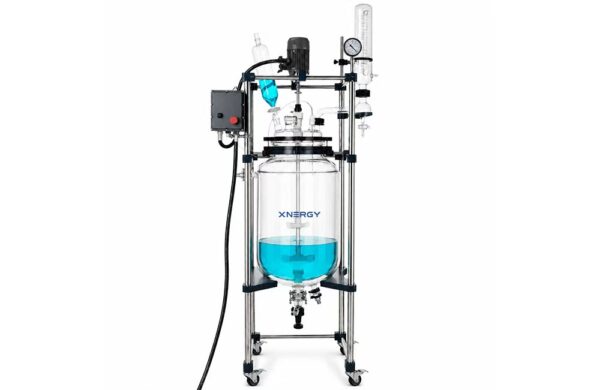

Xnergy XN-GR Production Jacket Glass Reactor
  1. Xnergy XN-GR Series Jacket Glass Reactor 5–200L
  2. Xnergy XN-GR Laboratory Jacket Glass Reactor
  3. Xnergy XN-GR Pilot Jacket Glass Reactor
  4. Xnergy XN-GR Production Jacket Glass Reactor

XN-GR Series Jacket Glass Reactor 5–200L

SKU: XN-GR

XN-GR Series Jacket Glass Reactor 5–200L combines a double-layer G3.3 borosilicate glass vessel with vacuum-capable stirring, reflux, distillation, and jacketed heating or cooling. Nine capacities support laboratory, pilot, and small-scale production workflows.

Need a bulk order or custom specification? Request a competitive quote today!

Name: XN-GR Series Jacket Glass Reactor 5–200L
Equipment Type: Jacketed Glass Reactor
Product Code: XN-GR
Brand: Xnergy

Product Introduction:

The XN-GR Series is a double-layer jacketed glass reactor platform available in nine capacities from 5 to 200 L. The inner vessel holds and agitates the reaction medium, while the jacket circulates compatible refrigerant, hot water, or hot oil for controlled cooling or heating.

The sealed vessel supports operation at normal pressure or under vacuum for synthesis, mixing, reflux, and distillation. Its modular configuration serves laboratory development, pilot trials, and small-scale production in fine chemicals, biopharmaceuticals, and advanced materials.

Key Features:

5–200 L capacity range
Double-layer G3.3 borosilicate glass vessel
Vacuum-capable stirring, reflux, and distillation
Jacket circulation for heating or cooling
Stainless-steel mobile support frame
Alloy-steel mechanical seal with PTFE joint
PT100 temperature sensor
AC gear motor with 50–600 rpm speed range
Double PTFE stirring paddle
PTFE bottom-discharge valve
Configurable ports and turnkey auxiliary equipment

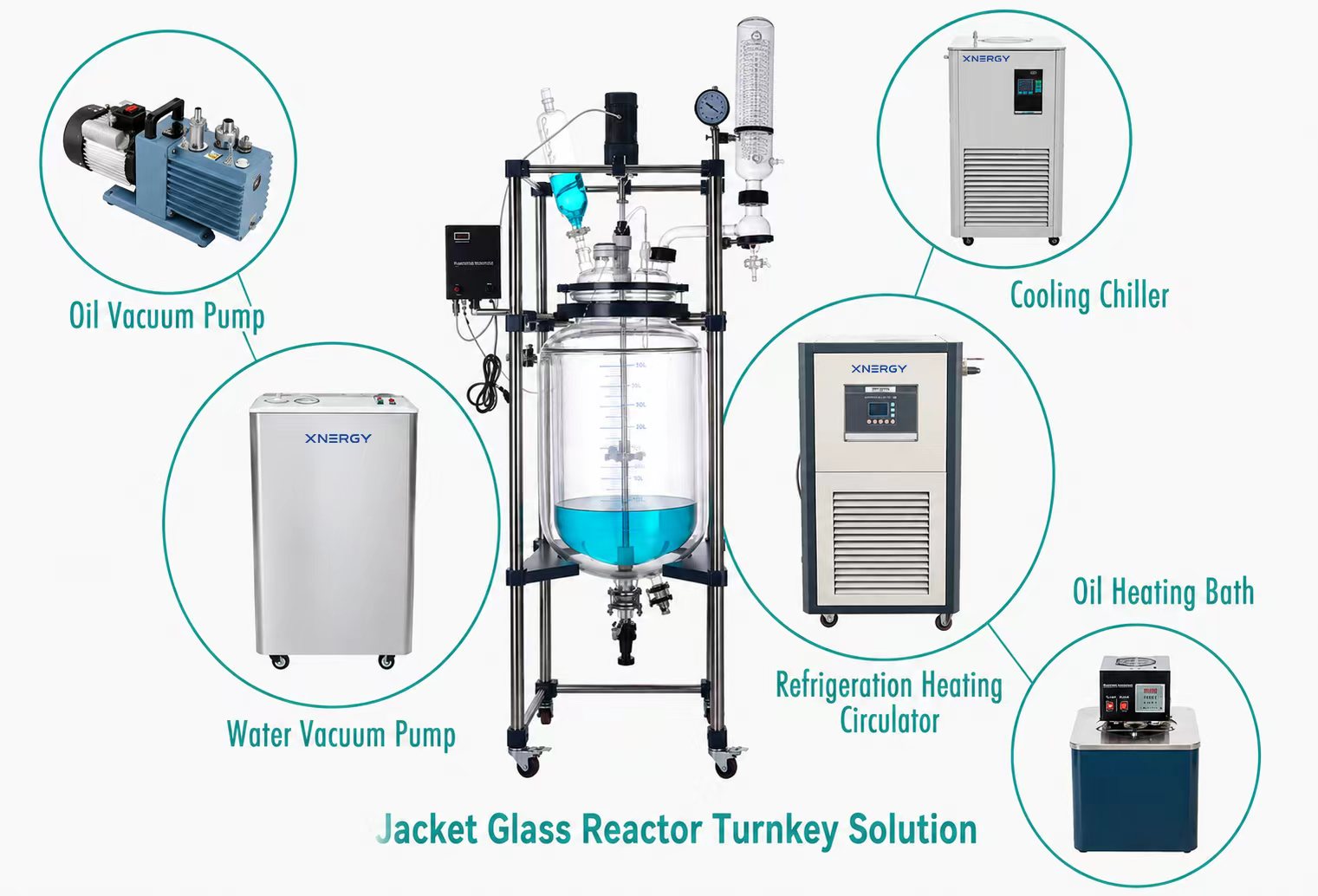

XN-GR Jacket Glass Reactor Turnkey Solution
Jacket glass reactor turnkey solution and compatible auxiliary equipment

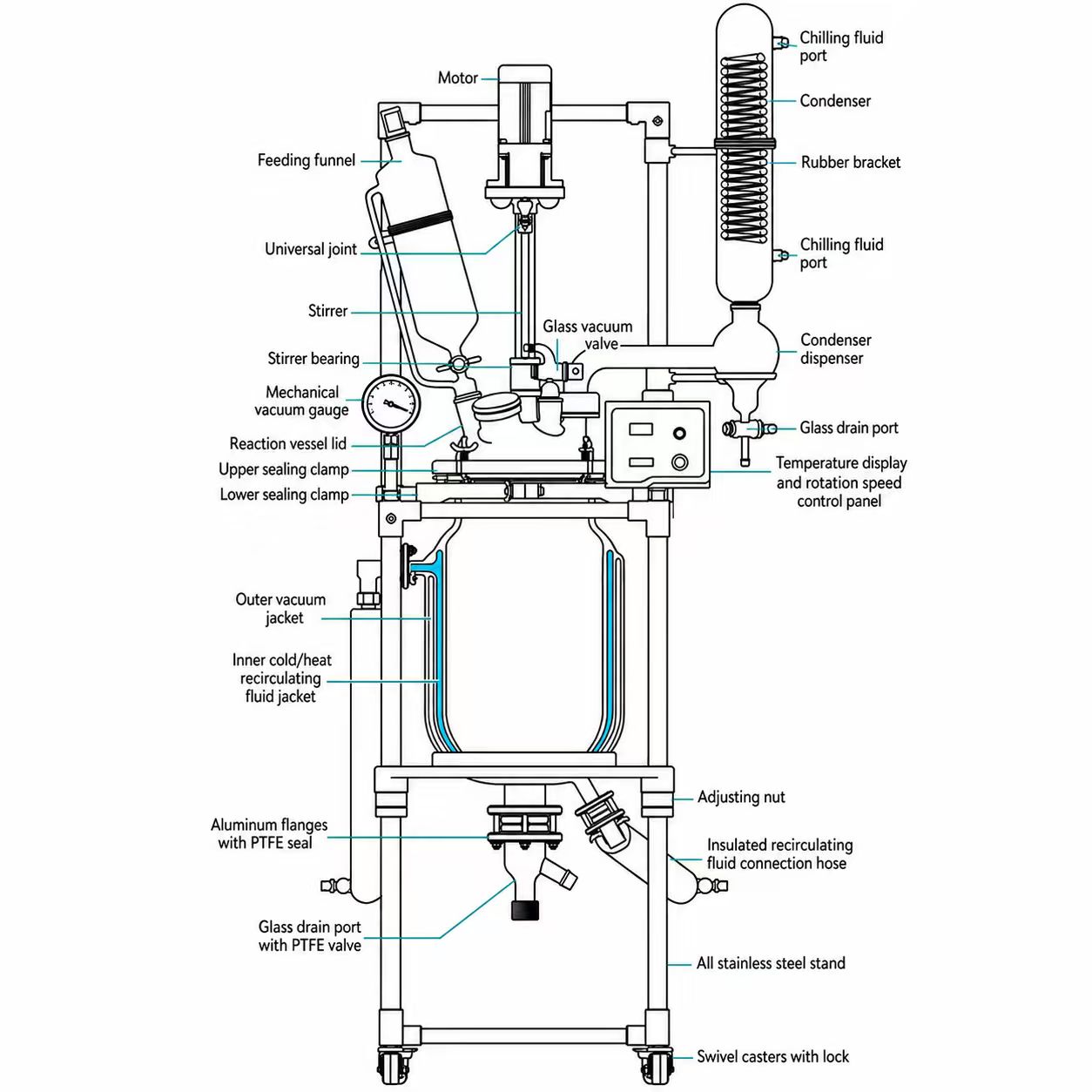

XN-GR Jacket Glass Reactor Structure Diagram
XN-GR jacketed glass reactor structure

Technical Specifications:

Swipe left or right to compare models.

Parameter XN-GR-5 XN-GR-10 XN-GR-20 XN-GR-30 XN-GR-50 XN-GR-80 XN-GR-100 XN-GR-150 XN-GR-200
Capacity (L) 5 10 20 30 50 80 100 150 200
Necks on Cover 5 6 6 6 6 6 6 6 6
Inner Vessel External Diameter (mm) 180 230 290 330 365 410 460 550 600
Outer Vessel External Diameter (mm) 230 290 330 365 410 460 500 600 650
Cover Diameter (mm) 180 265 265 265 265 340 340 340 340
Vessel Height (mm) 400 450 550 730 850 950 950 980 1200
Motor Power (W) 60 140 140 140 140 250 250 400 750
Vacuum Degree (MPa) 0.098 0.098 0.098 0.098 0.098 0.098 0.098 0.098 0.098
Rotation Speed (rpm) 50–600 50–600 50–600 50–600 50–600 50–600 50–600 50–600 50–600
Torque (N·m) 0.95 2.23 2.23 2.23 2.23 3.98 3.98 6.37 6.37
Dimensions (cm) 45×45×120 65×65×190 70×50×200 70×50×210 80×60×230 100×70×250 100×70×270 120×90×300 120×90×320

Power Supply: Configured according to applicable local electrical standards.

Applications:

Battery-material and precursor synthesis
Fine-chemical reaction and process development
Biopharmaceutical synthesis
Mixing, reflux, distillation, and crystallization
Laboratory scale-up and pilot production
New-material research and small-batch manufacturing

Note: Vessel capacity, port layout, agitation, sealing, temperature-control range, vacuum system, and auxiliary equipment can be configured for the process. Related reactor and process equipment includes the Custom Precipitation Reactor XN-SPR, XN-RK NMC Precursor Co-Precipitation Reactor, Laboratory Vacuum Mixer, Compact Filtration System, and the Closed-Loop Organic Solvent Spray Dryer.
