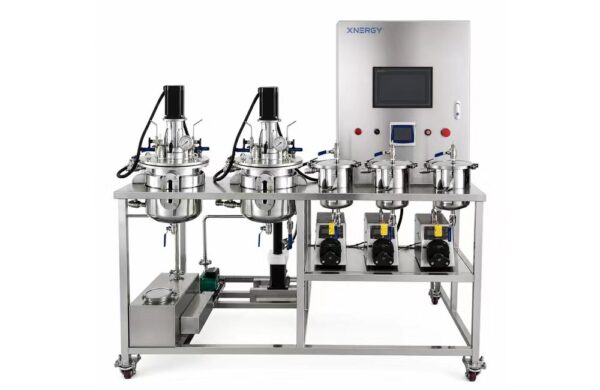

Three-Way NMC Precursor Co-Precipitation Reactor XN-RK
SKU: XN-RK
XN-RK 10 L NMC Precursor Co-Precipitation Reactor integrates three-way reagent feeding, main and aging reaction vessels, online pH detection, controlled heating, 0–1000 rpm agitation, and PLC automation for continuous or intermittent precursor synthesis.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Three-Way NMC Precursor Co-Precipitation Reactor
Equipment Type: 10 L Multi-Vessel NMC Precursor Co-Precipitation Reactor System
Product Code: XN-RK
Brand: Xnergy
Product Introduction:
The XN-RK is a stainless-steel multi-vessel reactor system developed for controlled NMC precursor co-precipitation. It integrates reagent storage and three-way metered feeding, a main reaction vessel, an aging reaction vessel, online pH detection, temperature control, agitation, and centralized PLC operation.
The system supports both continuous and intermittent reaction workflows. Its dedicated feed–reaction–aging layout separates XN-RK from the general-purpose XN-GR jacket glass reactor and the highly customized XN-SPR slurry precipitation platform.
Key Features:
Purpose-built for NMC precursor co-precipitation
Three-way reagent metering and feeding
Integrated main reaction and aging process
Online pH monitoring with 0.01 detection accuracy
Thermocouple temperature measurement with ±0.5 °C accuracy
0–1000 rpm variable-frequency agitation
Water-bath heating control with ±1 °C accuracy
316 and 304 stainless-steel valves and supporting fittings
316 stainless-steel quick-opening solvent buffer tank
PLC-based automatic operation
Supports continuous and intermittent reactions
Technical Specifications:
| Parameter | Specification |
|---|---|
| Reactor Type | Multi-vessel NMC precursor co-precipitation reactor |
| Main / Aging Reaction Kettle | 10 L |
| Agitation | High-speed stepper motor; 0–1000 rpm; variable-frequency speed regulation |
| pH Detection | Online probe; detection accuracy 0.01 |
| Temperature Measurement | Thermocouple; ±0.5 °C |
| Water-Bath Heating Box | ±1 °C accuracy; 3 kW |
| Solvent Buffer Tank | 5 L; 316 stainless steel; quick-opening structure |
| Valves and Supporting Fittings | 316 and 304 stainless steel |
| Control System | Automatic PLC control |
| Rated System Power | 4500 W |
| Reference Supply | 220 V, 50/60 Hz; configured according to applicable local electrical standards |
| Overall Dimensions | 1700 × 800 × 1500 mm |
| Net Weight | 120 kg |
Applications:
NMC cathode precursor co-precipitation
Controlled multicomponent reagent feeding
Precursor nucleation, growth, and aging studies
Laboratory and pilot-scale battery-material process development
Continuous and intermittent precipitation experiments
Note: Reagent pathways, vessel arrangement, heating, agitation, pH control, and automation can be configured according to the synthesis process. Related equipment includes the Customized Slurry Precipitation Reactor XN-SPR, XN-GR Jacket Glass Reactor Series, Laboratory Vacuum Mixer, Compact Filtration System, and the Closed-Loop Spray Dryer XN-OSD-2L.
