LZCO (Li₂ZrOCl₄) Solid-State Electrolyte for All-Solid-State Batteries
LZCO Halide-Oxide Solid-State Electrolyte (Li₂ZrOCl₄) — highest-conductivity halide electrolyte with 1.2–1.6 mS/cm at 28 °C (typical 1.55 mS/cm). Stable against 4 V-class cathodes (LCO, Ni83) without coatings. Validated in full all-solid-state cells delivering ~160 mAh/g (LCO) and ~195 mAh/g (Ni83).
Need a bulk order? Request a competitive quote today!
Name: LZCO Halide-Oxide Solid-State Electrolyte (Li₂ZrOCl₄)
Material Form: Powder
Product Code: XN-LZCO
Description:
LZCO (Li₂ZrOCl₄) is a halide-oxide hybrid solid-state electrolyte engineered for next-generation all-solid-state lithium batteries (ASSLBs). The incorporation of oxygen into the Li₂ZrCl₆ framework dramatically enhances room-temperature ionic conductivity to 1.2–1.6 mS/cm — approaching sulfide-class performance while preserving halide chemistry’s intrinsic stability against high-voltage cathodes. LZCO represents the highest-conductivity option in Xnergy’s LZC product family, ideal for high-power and high-loading ASSLB applications.
Application:
High-conductivity catholyte for all-solid-state lithium batteries. Suitable for sulfide-halide composite electrolyte architectures (paired with LPSC or LGPS as anode-side separator), high-voltage cathodes (LCO, NCM/Ni83), high-power solid-state cells, pouch cell prototyping, and pilot-scale ASSLB manufacturing.
Specifications:
| Property | Value |
|---|---|
| Composition | Li₂ZrOCl₄ |
| Ionic Conductivity | 1.2–1.6 mS/cm (typical 1.55 mS/cm @ 28 °C) |
| Test Condition | EIS, 1.16 mm pellet, 28 °C |
| Crystal Structure | Halide-oxide hybrid framework, partially amorphous |
| Electrochemical Window | Stable vs 4 V-class cathodes |
| Form | Powder |
| Storage | Inert atmosphere (Ar / N₂), sealed, moisture-excluded |
Values measured by Xnergy. Typical values for reference; not guaranteed unless otherwise specified.
Characteristics:
Highest conductivity in the LZC family
1.2–1.6 mS/cm at 28 °C — roughly 5× higher than pure Li₂ZrCl₆ (0.3 mS/cm) and 2× higher than Al-doped LZC (0.7 mS/cm). Approaches sulfide electrolyte performance while retaining halide-class oxidative stability.
High-voltage cathode compatibility
Halide-oxide chemistry is intrinsically stable against 4 V-class cathodes (LCO, Ni83). No LiNbO₃ or other interface coatings required, simplifying cell architecture and reducing cathode interface resistance.
Validated in full ASSLB cells
LCO|LZCO|LPSC|Li-In: ~160 mAh/g, 97.07% coulombic efficiency. Ni83|LZCO|LPSC|Li-In: ~195 mAh/g, 87.45% coulombic efficiency. Both at 7 mg/cm² loading, 28 °C.
Hybrid halide-oxide architecture
Oxygen substitution in the Li₂ZrCl₆ framework optimizes the lithium migration pathway, delivering practical ionic conductivity for high-power and high-loading solid-state applications.
Performance Data:

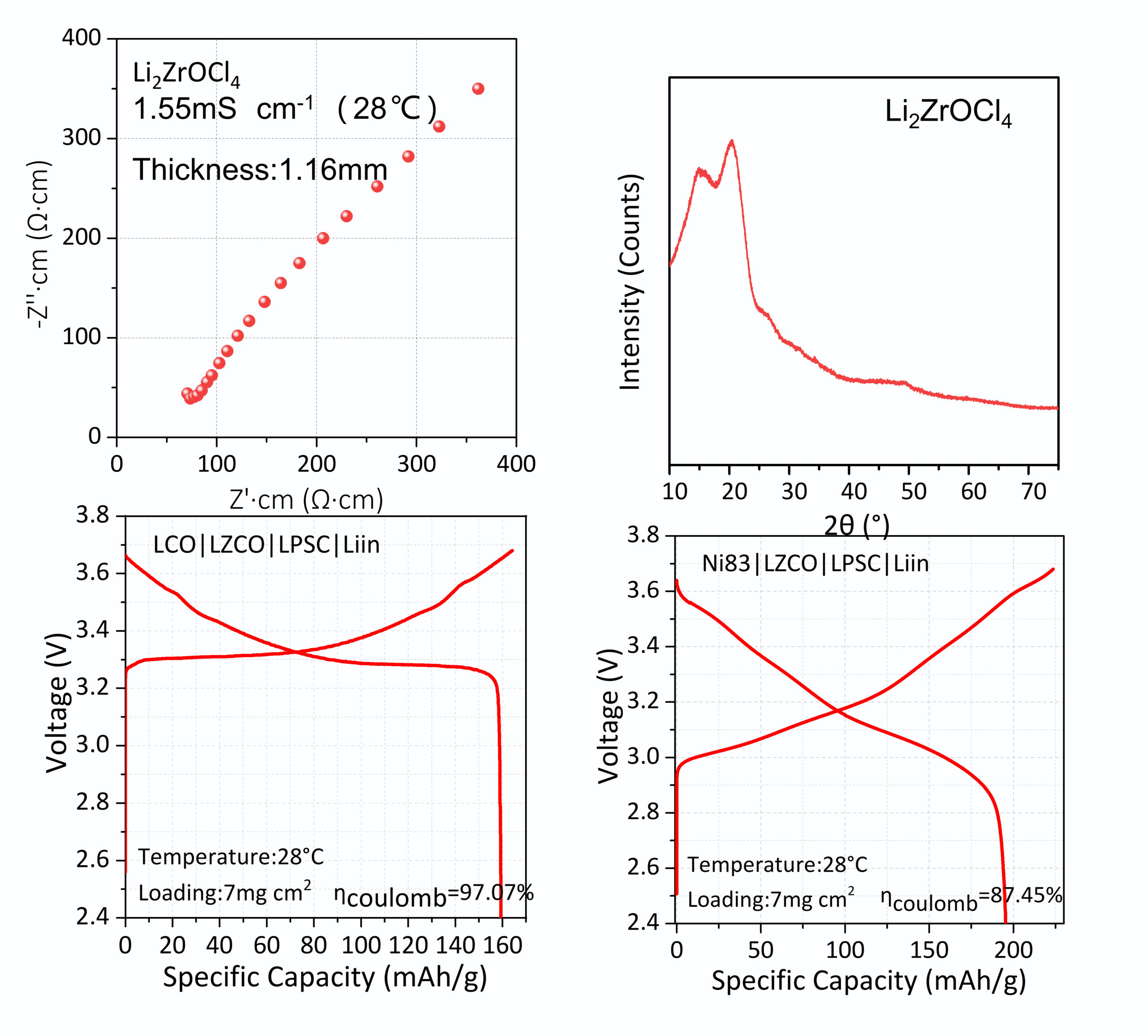

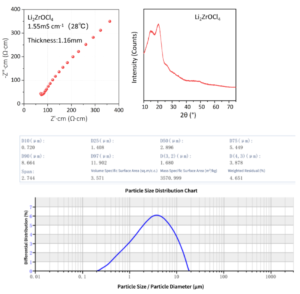

(Top left) EIS Nyquist plot of LZCO pellet (1.16 mm) at 28 °C, showing 1.55 mS/cm ionic conductivity. (Top right) XRD pattern of Li₂ZrOCl₄ showing partially amorphous structure. (Bottom left) LCO|LZCO|LPSC|Li-In cell, ~160 mAh/g, 97.07% coulombic efficiency. (Bottom right) Ni83|LZCO|LPSC|Li-In cell, ~195 mAh/g, 87.45% coulombic efficiency.
Packaging & Storage:
Vacuum-sealed under inert atmosphere in moisture-barrier aluminum-laminated bags. Store sealed in Ar or N₂ glovebox. LZCO is moisture-sensitive — handle in dry environment with dew point < –40 °C. Reseal promptly after opening.
Safety:
For research and industrial use only. Wear PPE (gloves, masks, safety goggles). Refer to SDS for complete safety information.
Note: Values listed above are typical and for reference only. Performance may vary depending on cell architecture, cathode selection, electrolyte separator, and test protocol. Compare with our other LZC-family electrolytes: LZC (Li₂ZrCl₆) at 0.3 mS/cm and Al-Doped LZC (Li₂Zr₁₋ₓCl₆-Alₓ) at 0.7 mS/cm.
