O-Doped LZC (Li₂ZrCl₆-Oₓ) Solid-State Electrolyte
O-Doped LZC Solid-State Electrolyte (Li₂ZrCl₆-Oₓ) — oxygen-doped halide electrolyte with 1.2–1.6 mS/cm ionic conductivity at 28 °C (typical 1.55 mS/cm), roughly 5× higher than pure LZC. Stable against 4 V-class cathodes (LCO, Ni83) without coatings. Validated in full all-solid-state cells delivering ~160 mAh/g (LCO) and ~195 mAh/g (Ni83).
Need a bulk order? Request a competitive quote today!
Name: O-Doped LZC Solid-State Electrolyte (Li₂ZrCl₆-Oₓ)
Material Form: Powder
Product Code: XN-O-LZC
Description:
O-Doped LZC (Li₂ZrCl₆-Oₓ) is an oxygen-doped chloride halide solid-state electrolyte engineered for high-performance all-solid-state lithium batteries (ASSLBs). Oxygen substitution into the Li₂ZrCl₆ lattice optimizes the lithium migration pathway, boosting room-temperature ionic conductivity to 1.2–1.6 mS/cm — roughly 5× higher than pure Li₂ZrCl₆. Furthermore, the material retains halide chemistry’s intrinsic stability against high-voltage cathodes, making it a strong choice for high-power ASSLB applications.
Application:
This material serves as a high-conductivity catholyte for all-solid-state lithium batteries. It is suitable for sulfide-halide composite electrolyte architectures (paired with LPSC or LGPS as anode-side separator), high-voltage cathodes (LCO, NCM/Ni83), high-power solid-state cells, and pouch cell prototyping.
Specifications:
| Property | Value |
|---|---|
| Composition | Li₂ZrCl₆-Oₓ (oxygen-doped LZC) |
| Ionic Conductivity | 1.2–1.6 mS/cm (typical 1.55 mS/cm @ 28 °C) |
| Test Condition | EIS, 1.16 mm pellet, 28 °C |
| Crystal Structure | Oxygen-doped chloride framework, partially amorphous |
| Electrochemical Window | Stable vs 4 V-class cathodes |
| Form | Powder |
| Storage | Inert atmosphere (Ar / N₂), sealed, moisture-excluded |
Values measured by Xnergy. Typical values for reference; not guaranteed unless otherwise specified.
Characteristics:
Significantly enhanced conductivity vs pure LZC
At 1.55 mS/cm at 28 °C, oxygen doping delivers approximately 5× the ionic conductivity of pure Li₂ZrCl₆ (~0.3 mS/cm). Moreover, this also exceeds Al-doped LZC (~0.7 mS/cm), reaching the practical range for high-power solid-state battery applications.
High-voltage cathode compatibility
The chloride-based halide chemistry remains intrinsically stable against 4 V-class cathodes (LCO, Ni83). Therefore, no LiNbO₃ or other interface coatings are required, simplifying cell architecture and reducing cathode interface resistance.
Validated in full ASSLB cells
In LCO|LZCO|LPSC|Li-In configuration, the cell delivers ~160 mAh/g at 97.07% coulombic efficiency. Similarly, Ni83|LZCO|LPSC|Li-In achieves ~195 mAh/g at 87.45% coulombic efficiency. Both tested at 7 mg/cm² loading, 28 °C.
Optimized for solid-state composite architectures
Because of its high conductivity and oxidative stability, the material is well-suited for use as a catholyte in bilayer ASSLB cells where sulfide LPSC serves as the anode-side separator.
Performance Data:

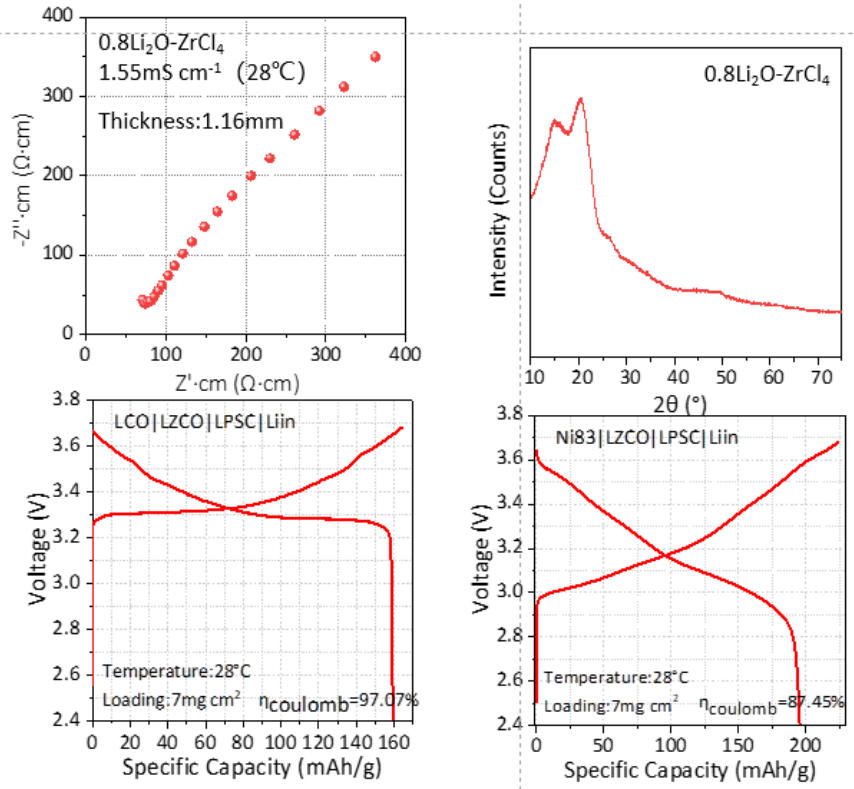

(Top left) EIS Nyquist plot of 0.8Li₂O-ZrCl₄ pellet (1.16 mm) at 28 °C, showing 1.55 mS/cm ionic conductivity. (Top right) XRD pattern of 0.8Li₂O-ZrCl₄ showing partially amorphous structure. (Bottom left) LCO|LZCO|LPSC|Li-In cell, ~160 mAh/g, 97.07% coulombic efficiency. (Bottom right) Ni83|LZCO|LPSC|Li-In cell, ~195 mAh/g, 87.45% coulombic efficiency.
Packaging & Storage:
The material ships vacuum-sealed under inert atmosphere in moisture-barrier aluminum-laminated bags. Therefore, customers should store it sealed in Ar or N₂ glovebox, protected from moisture. Because O-doped LZC is moisture-sensitive, handle exclusively in a dry environment with dew point < –40 °C. Reseal promptly after opening.
Safety:
For research and industrial use only. Wear PPE (gloves, masks, safety goggles). Refer to SDS for complete safety information.
Note: Values listed above are typical and for reference only. Performance may vary depending on cell architecture, cathode selection, and test protocol. Compare with our other halide electrolytes: LNOC (LiNbOCl₄) at ~7 mS/cm, LZCO (Li₂ZrOCl₄) at 1.55 mS/cm, Al-Doped LZC at 0.7 mS/cm, LZC (Li₂ZrCl₆) at 0.3 mS/cm, and LYC (Li₃YCl₆) at 0.3–0.4 mS/cm.
