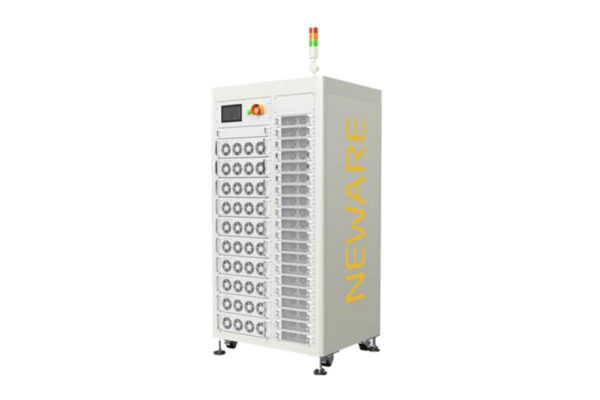

Neware CE-6005n-120V300A-H Battery Module Testing System, ENCE6005n120V300AH

SKU: ENCE6005n120V300AH

Neware CE-6005n-120V300A-H Battery Module Testing System, ENCE6005n120V300AH — Neware CE-6005n-120V300A-H regenerative module tester rated for 120 V / 300 A operation across 5 channels, with 24-bit acquisition and programmable high-power cycling functions.

Need help selecting a configuration? Request a competitive quote today!

Neware CE-6005n-120V300A-H Battery Module Testing System, ENCE6005n120V300AH

Product Type: Regenerative Battery Module Testing System
Brand: Neware
Part Number: ENCE6005n120V300AH

Product Introduction

The Neware CE-6005n-120V300A-H is an industrial battery module tester configured for 120 V / 300 A operation across 5 channels. It is designed for programmable, high-power charge/discharge testing in pilot-line, validation, and production environments.

Key Features

• 120 V / 300 A configuration — rated voltage and current for this system
• 5 channels — parallel test capacity specified for this model
• 24-bit measurement architecture — supports detailed voltage and current acquisition
• Fast dynamic control — specified current response of ≤3 ms and conversion time of ≤6 ms
• Regenerative test platform — supports CCC/CCD, CVC/CVD, CPC/CPD, CCCV, DCIR, pulse simulation, and GITT

Specification

Parameter	Specification
Part Number	ENCE6005n120V300AH
Power	AC380V±10%, three phase, 50/60Hz, 211.8 kW
Channel Numbers	5 channels
Voltage Features	Charge Voltage: 0-120 V Discharge Voltage: 5 V ~ 120 V Minimal discharge voltage: 5 V Accuracy: ± 0.02% of F.S. Resolution: 24 bit
Current Features	Output Range: 1.5A – 300A Accuracy: ± 0.05% of F.S. CV Cut-Off Current: 300 mA Resolution: 24 bit
Output Power	36 kW/Channel Whole machine output power: 180 kW
Time	Current Response Time: ≤3 ms Current Conversion Time: ≤6 ms Min. Step Time: 0.1s
Main Test Functions	Constant current charging/discharging (CCC/CCD) Constant voltage charging/discharging (CVC/CVD) Constant power charging/discharging (CPC/CPD) Constant current constant voltage charging/discharging (CCCVC/CCCVD) DCIR Pulse Simulation Test GITT
Data Record/Report	Recording Conditions: (a) minimum time interval: 10 ms; (b) minimum voltage interval: 0.24 V; (c) Minimum current interval: 0.6 A. Export File Types: Excel, TXT
Dimension	L950 mm * W800 * H1950 mm
Weight	~560 kg
