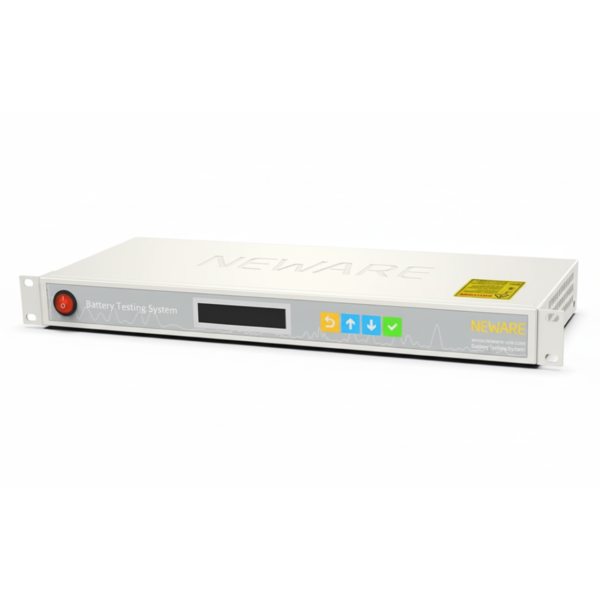

Neware CT-ZWJ-4'S-T-1U Control Unit, ENCTZWJ4ST1U

Neware CT-ZWJ-4’S-T-1U Control Unit, ENCTZWJ4ST1U

SKU: ENCTZWJ4ST1U

Neware CT-ZWJ-4'S-T-1U Control Unit, ENCTZWJ4ST1U — Neware CT-ZWJ-4’S-T-1U control gateway for coordinating up to 256 battery-test channels, with RJ45 TCP/IP communication, 1 GB cache, and 100 Hz maximum sampling.

Need help selecting a configuration? Request a competitive quote today!

Neware CT-ZWJ-4'S-T-1U Control Unit, ENCTZWJ4ST1U

Product Type: Battery Tester Control Unit
Brand: Neware
Part Number: ENCTZWJ4ST1U

Product Introduction

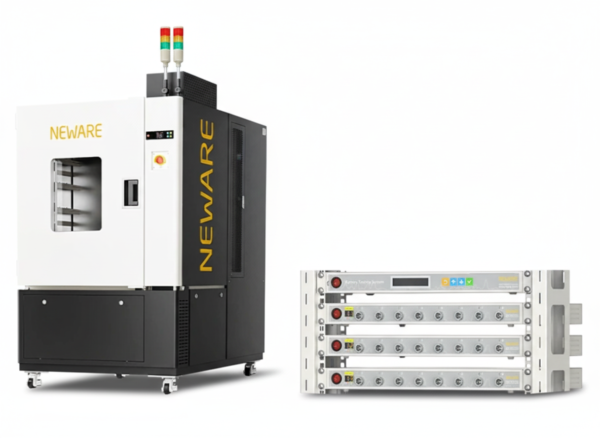

The Neware CT-ZWJ-4’S-T-1U is a rack-level communication and control gateway for Neware battery testing modules. It manages test data, maintains communication between the host computer and connected testers, and supports coordinated operation with auxiliary equipment.

Key Features

• Up to 256 channels — centralized communication for multi-channel battery testing systems
• 100 Hz maximum sampling frequency — 10 ms communication interval
• 1 GB data cache — supports test continuity and local data handling
• RJ45 TCP/IP communication — 100 M network communication interface
• Linux-based ARM9 controller — integrated LCD interface

Specification

Parameter	Specification
Part Number	ENCTZWJ4ST1U
Power	AC110V or AC220V±10%, single phase, 50/60Hz, ~20W
Current	Max. 60 A
Data Cache	1 GB
Sampling Frequency	Max. 100 Hz (10 ms)
Communication Features	Communication Interface: RJ45 Communication Mode: TCP/IP Communication Rate: 100 M Maximum Numbers of Channels: 256
Controller Components	CPU: ARM9 System Kernel: Linux Screen: LCD
