Neware WHW-200L-0C-220V-5V100mA-160CH Coin Cell All-in-One Battery Testing System, ENWHW200L0C5V100mA160CH

SKU: ENWHW200L0C5V100mA160CH

Neware WHW-200L-0C-220V-5V100mA-160CH Coin Cell All-in-One Battery Testing System, ENWHW200L0C5V100mA160CH — Large-capacity Neware all-in-one system combining a 200 L, 0–60°C chamber with 160 integrated 5 V / 100 mA battery-test channels.

Need help selecting a configuration? Request a competitive quote today!

Neware WHW-200L-0C-220V-5V100mA-160CH Coin Cell All-in-One Battery Testing System, ENWHW200L0C5V100mA160CH

Product Type: Large-Capacity All-in-One Battery Testing Chamber
Brand: Neware
Part Number: ENWHW200L0C5V100mA160CH

Product Introduction

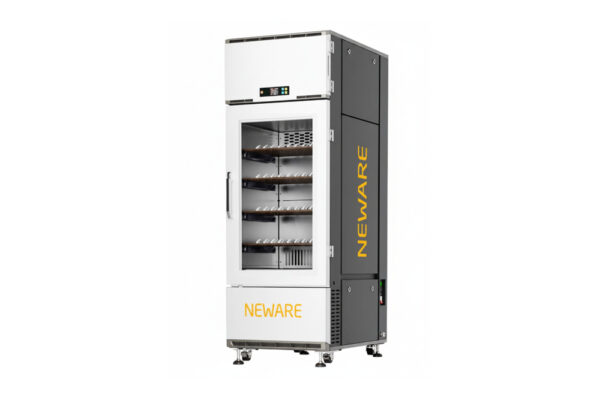

The Neware WHW-200L-0C-220V-5V100mA-160CH combines a 200 L constant-temperature chamber with 160 integrated 5 V / 100 mA test channels. It is designed for high-throughput coin-cell testing where electrical and thermal conditions must be managed in one system.

Key Features

• 160 integrated channels — large parallel test capacity
• 5 V / 100 mA channel configuration — intended for coin-cell and other low-current tests
• 0°C to 60°C temperature range — supports controlled thermal cycling studies

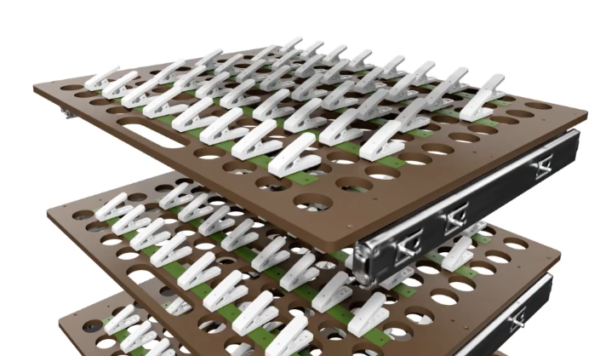

• 200 L chamber volume — accommodates high-density test fixtures

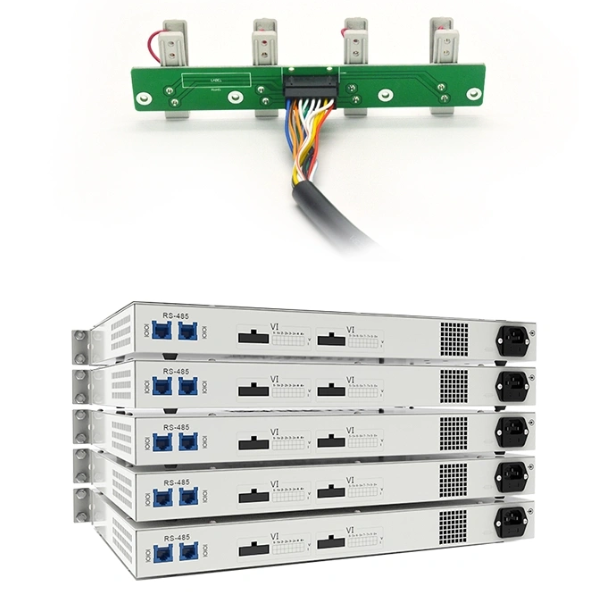

• Integrated test architecture — combines chamber control and battery cycling in one cabinet

Specification

ParameterSpecification
Part Number
  • ENWHW200L0C5V100mA160CH
Power
  • AC220V±10%, single phase, 50/60Hz, 3000W
Channel Numbers
  • 160 channels in total



Voltage/Current

  • Voltage: 5V
  • Current:100 mA
Temperature Range
  • 0℃ ~ 60℃
Heating Time
  • 25℃ ~ 60℃≤30min (No Loading)
Cooling Time
  • 25 ℃ ~ 0 ℃≤50min (No Loading)
Temperature Fluctuation
  • ≤1℃ (no loading, temperature stability)
Temperature Deviation
  • ±2℃ (no loading, temperature stability)
Nominal Chamber Volume
  • 200 L (Inner Size: W500mm×D500mm×H800mm)
Dimension
  • W600mm × D920mm × H1800mm
Weight
  • ~200 kg

Applications

High-throughput coin-cell cycling, production validation, temperature-dependent aging studies, and multi-channel laboratory testing.

References:

A. Dubois, et al., Coin Cell Battery Chamber Design for Low-temperature Operando Experiments, JOVE, DOI: 10.3791/68972

B. Kwon, et al., In Situ Gas Analysis and Fire Characterization of Lithium-Ion Cells During Thermal Runaway Using an Environmental Chamber, JOVE, DOI: 10.3791/65051.
