Sodium (Na) Chips, 8–18 mm Diameter × 0.06–0.8 mm Thickness, 400 pcs/Can – XN-SIB-NaC06
SKU: XN-SIB-NaC06
Sodium (Na) chips for sodium-ion battery counter and reference electrodes are available in 8–18 mm diameters and 0.06–0.8 mm thicknesses, with aluminum-foil, copper-foil, or no-current-collector configurations.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Sodium (Na) Chips, Multiple Diameters and Thicknesses, 400 pcs/Can
Material: Sodium Metal Disc with Optional Aluminum-Foil or Copper-Foil Current Collector
Product Code: XN-SIB-NaC06
Brand: Xnergy
Product Introduction:
XN-SIB-NaC06 sodium metal chips are pre-cut circular discs intended for use as counter and reference electrodes in sodium-ion battery testing. Standard diameters include 8, 10, 12, 14, 15.6, and 18 mm. The regular sodium-layer thickness is 0.45 mm, while custom thicknesses from 0.06 to 0.8 mm are available.
Three configurations are available: aluminum-foil current collector, copper-foil current collector, or no current collector. For foil-supported versions, the stated sodium-layer thickness excludes the 0.02 mm current collector.
Key Features:
Multiple standard disc diameters
Regular 0.45 mm sodium-layer thickness
Custom thicknesses from 0.06 to 0.8 mm
Aluminum-foil, copper-foil, or unsupported configurations
400 pieces per can
Custom non-standard dimensions available
Specifications:
| Parameter | Specification |
|---|---|
| Product Form | Circular sodium metal chips |
| Standard Diameters | Φ8, Φ10, Φ12, Φ14, Φ15.6, and Φ18 mm |
| Regular Sodium-Layer Thickness | 0.45 mm |
| Custom Thickness Range | 0.06–0.8 mm |
| Current-Collector Options | Aluminum foil, copper foil, or no current collector |
| Current-Collector Thickness | 0.02 mm; excluded from the stated sodium-layer thickness |
| Packaging | 400 pieces per can |
| Customization | Non-standard diameters and thicknesses available |

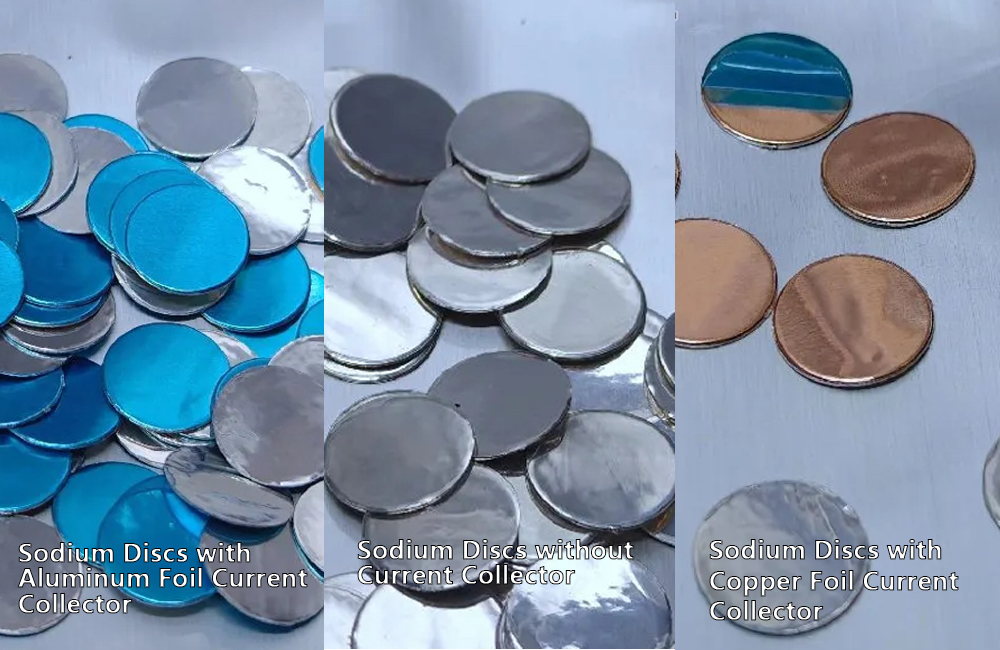

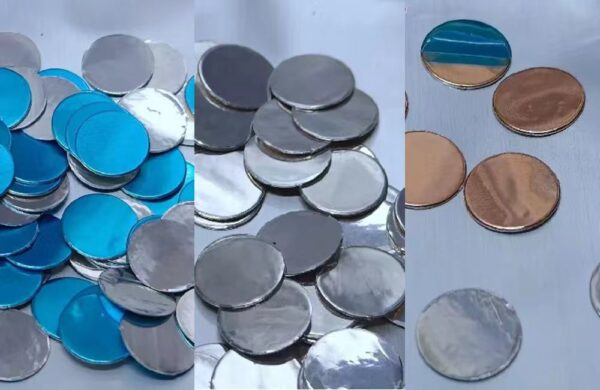

Current-Collector Configurations:
The product is available with an aluminum-foil current collector, without a current collector, or with a copper-foil current collector.
Typical Applications:
Sodium-ion battery half-cell testing
Counter-electrode preparation
Reference-electrode preparation
Coin-cell battery research
Electrode and electrolyte evaluation
Handling and Use Precautions:
1. Sodium chips with a thickness of ≤0.2 mm are soft and can deform easily. For these thin specifications, sodium chips with a current collector are recommended. Aluminum-foil current collectors are the most commonly selected option.
2. Sodium chips without a current collector are soft. Before removing the protective film, warm the chip surface to at least 50 °C using a heating plate or heat gun to facilitate film removal.
3. Products supplied in aluminum-plastic bag packaging are vacuum-packed in an aluminum-foil bag under argon and placed inside a sealed can. Transfer the sealed package into a glove box before opening. Do not cut open the aluminum-foil bag in air, as the sodium chips will oxidize. Oxidation caused by opening in air is not eligible for return or replacement. If the aluminum-foil bag appears to have leaked on arrival, do not open it; take photographs and contact after-sales service for replacement.
4. Small white bottles are sealed inside a glove box. When not in use, tighten the bottle cap promptly to prevent oxidation of the sodium chips.
Note: Confirm the required diameter, sodium-layer thickness, and current-collector configuration before ordering. Related materials include the Sodium (Na) Chip XN-SIB-NaC05, Sodium Metal Foil, K₂Fe[Fe(CN)₆] Potassium Iron Hexacyanoferrate Cathode Material, and K₂MnFe(CN)₆ Potassium Manganese Hexacyanoferrate Cathode Material. Explore more products in Sodium Metal Materials.
