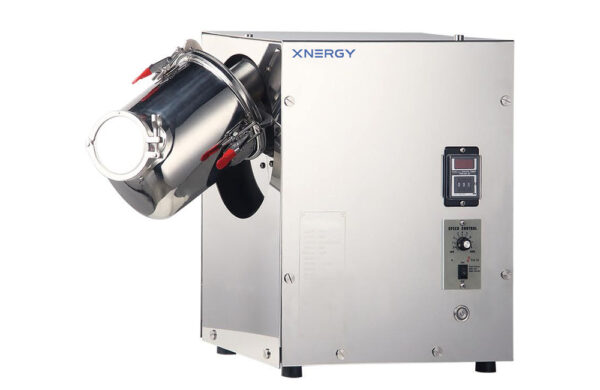

Dual Motion Mixer XN-JHT Series
SKU: XN-JHT
Dual Motion Mixer XN-JHT Series is a bench-top laboratory mixer developed for small-batch mixing that demands high uniformity, such as new-formula research. A rotating drum works together with a cross-rotating internal ribbon blade — a dual-motion action that mixes efficiently and evenly.
It is compatible with various mixing-drum sizes, has a compact structure with stable, simple operation, and the drum and blades are detachable for thorough cleaning that avoids cross-contamination between batches.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Dual Motion Mixer XN-JHT Series
Equipment Type: Bench-Top Dual Motion Mixer (Laboratory)
Product Code: XN-JHT
Brand: Xnergy
Product Introduction:
The XN-JHT Dual Motion Mixer is a bench-top laboratory mixer developed for small-batch mixing that requires high uniformity, such as new-formula research. It has a compact structure, is easy to operate, and runs stably. It is compatible with various sizes of mixing drums for diverse small-batch experiments, maximizing equipment performance. Its dual-motion superposition mixing — a rotating drum combined with a cross-rotating internal blade — offers high efficiency, speed, capacity, and energy saving. The mixing drum and blades are detachable for thorough internal cleaning, avoiding cross-contamination between batches.
Key Features:
Compatible with various sizes of mixing drums for diverse small-batch experiments
Dual-motion superposition mixing (cross-rotating shaft, double motion) for high efficiency, speed, capacity, and energy saving
Detachable mixing drum and blades for thorough internal cleaning, avoiding cross-contamination between batches
Compact structure, simple operation, and stable running
304 stainless steel mixing drum and spiral blade
0–999 minute timer with automatic shutdown
Adjustable barrel and blade speeds
General Specifications:
| Parameter | Specification |
|---|---|
| Working Mode | Cross-rotating shaft, double motion mixing |
| Mixing Drum Material | 304 stainless steel |
| Barrel Thickness | 2.0 mm |
| Spiral Blade & Bracket Material | 304 stainless steel |
| Timer | 0–999 min setting, automatic shutdown |
| Loading Coefficient | 80% |
| Inlet / Outlet Size | 76 mm |
| Voltage | Configurable according to local electrical standards. |
Model Specifications:
| Model | Barrel Volume (L) | Max Loading Weight (kg) | Barrel Speed (rpm) | Blade Speed (rpm) | Motor Power (kW) | Dimensions (mm) |
|---|---|---|---|---|---|---|
| XN-JHT5 | 2–5 | 5 | 0–30 | 0–75 | 0.25 | 645 × 296 × 480 |
| XN-JHT10 | 6–10 | 10 | 0–23 | 0–58 | 0.55 | 807 × 395 × 602 |
| XN-JHT20 | 10–20 | 20 | 0–25 | 0–63 | 0.55 | 890 × 450 × 650 |
Application Areas:
Small-batch mixing with high uniformity requirements
New-formula research and development
Laboratory powder and granule mixing
Cross-contamination-free batch mixing with detachable drums
Battery R&D — small-batch blending of electrode powder formulations
Maintenance:
Detach and clean the mixing drum and blades thoroughly after each use
Inspect the drum, blades, and bracket before operation
Confirm the drum is correctly installed and within the rated load before starting
Keep the machine and control panel clean and dry
Safety Notes:
Ensure the mixing drum and blades are correctly installed and secured before starting
Keep hands and tools clear of the moving drum and blades
Do not exceed the rated loading weight or loading coefficient
Follow lockout procedures during drum removal and cleaning
Specifications are provided for reference and may be adjusted to suit specific process requirements. Model, drum size, and blade are specified at order time.
Note: Specifications listed above are typical and for reference only. Actual performance depends on the material and load. The XN-JHT Dual Motion Mixer combines a rotating drum with a cross-rotating internal ribbon blade — a dual-motion action that gives high mixing uniformity for demanding small-batch and new-formula work, with detachable drums and blades for easy, cross-contamination-free cleaning. Where gentle tumbling is sufficient, Xnergy’s passive mixers are alternatives: the XN-V V-Type Mixer and the high-speed XN-SM-10 Laboratory 3D Mixer. Powders prepared on mills such as the planetary XN-YXQM Series can be blended here, and in battery R&D it is used to mix Cathode Materials with additives and binders.
