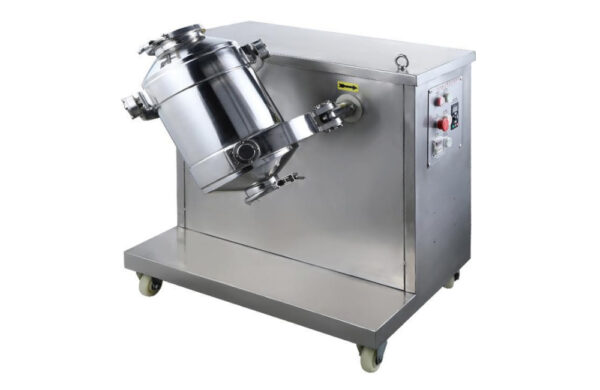

3D Mixer XN-S Series
SKU: XN-S
3D Mixer XN-S Series blends dry powders and granules by moving the mixing barrel in three dimensions. This multi-directional motion keeps material free from centrifugal force, avoiding gravity segregation and stratification for uniform mixing with a homogeneity rate of up to 98%.
It runs quietly and stably in washable stainless steel, supports vacuum feeding and disc-valve discharging for dust-free operation, and offers forward/reverse rotation via panel control. The series ranges from 5 L to 1000 L.
Need a bulk order or custom specification? Request a competitive quote today!
Name: 3D Mixer XN-S Series
Equipment Type: Three-Dimensional (3D) Mixer
Product Code: XN-S
Brand: Xnergy
Product Introduction:
The XN-S 3D Mixer blends dry powders and granules by moving the mixing barrel in three dimensions — multiple directions at once. This multi-directional motion keeps the material largely free from centrifugal force, so there is no gravity segregation, stratification, or accumulation, giving uniform mixing with a homogeneity rate of up to 98%. The mixer has a compact structure and runs quietly and stably, is made of washable stainless steel, supports vacuum feeding and disc-valve discharging for dust-free operation, and offers forward and reverse rotation through panel control. The barrel is precision-polished with no dead corners for easy discharging and cleaning. The series ranges from 5 L to 1000 L total volume.
Key Features:
Three-dimensional, multi-directional barrel motion — material stays largely free from centrifugal force, with no gravity segregation, stratification, or accumulation
Suitable for mixing a wide range of materials, with a homogeneity rate up to 98%
Compact structure, simple and quiet operation, stable running
Stainless steel construction — attractive, washable, and easy to clean for mass production
Supports vacuum feeding and disc-valve discharging for dust-free operation
Forward and reverse rotation, adjustable via panel control
Precision-polished mixing barrel with no dead corners — no material retention, easy discharging and cleaning
Technical Specifications:
| Model | Total Volume (L) | Effective Volume | Load Capacity Limit | Spindle Speed (rpm) | Power (kW) | Voltage | Weight (kg) |
|---|---|---|---|---|---|---|---|
| XN-S-5L | 5 | ≤ 70% | Within 10 kg | 13 | 0.55 | Configurable according to local electrical standards. | 120 |
| XN-S-10L | 10 | ≤ 70% | Within 20 kg | 13 | 0.55 | Configurable according to local electrical standards. | 130 |
| XN-S-20L | 20 | ≤ 70% | Within 20 kg | 13 | 0.75 | Configurable according to local electrical standards. | 145 |
| XN-S-50L | 50 | ≤ 70% | Within 25 kg | 13 | 1.5 | Configurable according to local electrical standards. | 300 |
| XN-S-100L | 100 | ≤ 70% | Within 50 kg | 13 | 1.5 | Configurable according to local electrical standards. | 400 |
| XN-S-200L | 200 | ≤ 70% | Within 100 kg | 13 | 2.2 | Configurable according to local electrical standards. | 500 |
| XN-S-400L | 400 | ≤ 70% | Within 200 kg | 13 | 4 | Configurable according to local electrical standards. | 700 |
| XN-S-600L | 600 | ≤ 70% | Within 300 kg | 13 | 5.5 | Configurable according to local electrical standards. | 950 |
| XN-S-800L | 800 | ≤ 70% | Within 400 kg | 13 | 7.5 | Configurable according to local electrical standards. | 1200 |
| XN-S-1000L | 1000 | ≤ 70% | Within 500 kg | 13 | 7.5 | Configurable according to local electrical standards. | 1350 |
Application Areas:
Thorough, uniform dry blending of powders and granules
Mixing of active materials, conductive additives, and other powder formulations
Pharmaceutical, chemical, food, and similar powder mixing
Dust-free mixing with vacuum feeding and disc-valve discharging
Battery R&D and production — homogeneous blending of cathode and anode powder formulations
Maintenance:
Clean the barrel and disc valve thoroughly after each use
Inspect the seals, valve, and drive before operation
Confirm the load is within the rated capacity and the barrel is secured
Keep the machine clean and dry when not in use
Safety Notes:
Keep the barrel securely closed during operation
Do not exceed the rated load capacity or effective volume
Keep clear of the moving barrel while running
Follow lockout procedures during loading, discharging, and cleaning
Specifications are provided for reference and may be adjusted to suit specific process requirements. Model and configuration are specified at order time.
Note: Specifications listed above are typical and for reference only. Actual performance depends on the material and load. The XN-S 3D Mixer blends dry powders by moving the barrel in three dimensions, which avoids gravity segregation and stratification for thorough, uniform mixing (up to 98% homogeneity) without grinding the material. Where a simpler tumbling blend is sufficient, the XN-V V-Type Mixer is an alternative. Powders prepared on grinding equipment such as the planetary XN-YXQM Series can be blended here into uniform formulations, and in battery R&D it is used to mix Cathode Materials and Anode Materials with conductive additives and binders.
