Guide · Electrolyte Engineering
Electrolyte Additives for Lithium-Ion Batteries: What They Fix and When to Use Them
Use electrolyte additives when the base salt-and-solvent system is not enough to control a specific interface problem inside a lithium-ion cell. In practice, additives are small-dose tools for stabilizing the SEI, protecting the CEI, reducing gas growth, supporting low-temperature or fast-charge behavior, and extending cycle life. The right package solves a named failure mode. The wrong package can trade one problem for another.
That distinction matters to Xnergy customers because additive selection is usually discussed too loosely. Teams often ask which additive is “best” when the more useful question is what the cell is actually failing to do. A graphite half-cell with weak first-cycle efficiency, a nickel-rich pouch cell swelling at high state of charge, and a silicon blend struggling under cold fast charge are three different electrolyte problems even if they all use the word additive.
This guide keeps the article at the engineering-selection layer that the broader battery electrolyte guide does not own. The goal is not to re-explain what electrolyte is. It is to show how battery R&D teams, materials buyers, labs, and pilot programs should choose additive families by job to be done and validate them before the chemistry gets locked into a build.
What electrolyte additives actually do
Electrolyte additives are normally introduced at low concentration, often around a few percent or less, but their role is not minor. A recent open review of functional electrolyte additives for lithium-ion and lithium-metal systems groups them around specific electrochemical jobs: stable electrode-electrolyte interphases, high-voltage control, gas suppression, wide-temperature operation, contaminant control, and lithium-metal compatibility. That framing is more useful than memorizing molecule names because the performance target comes first and the chemistry follows from it.
For a conventional lithium-ion cell, the base electrolyte still does the heavy lifting. The salt sets ionic charge carriers, the solvent blend controls conductivity and wetting, and the additive package shapes the first few nanometers of interphase where cycle life, resistance growth, and gas generation are decided. If you need a refresher on that base system, start with how battery electrolyte works. If your team already knows the base composition, the question becomes narrower: which interfacial problem is costing performance right now?
That is also why additive decisions should not be separated from the anode, cathode, and duty cycle. The same additive can support one graphite system, weaken another, and become the wrong answer entirely in a lithium-metal or quasi-solid platform. A useful additive program is never a shopping list. It is a cell-design hypothesis.
Choose the additive package by failure mode first
The fastest way to waste electrolyte-development time is to screen additives before the team agrees on the problem statement. If the cell is fading, ask how it is fading. If swelling is rising, ask when. If charging fails, ask whether the root cause is transport, plating, or an unstable interphase. That moves the program from additive folklore to additive engineering.

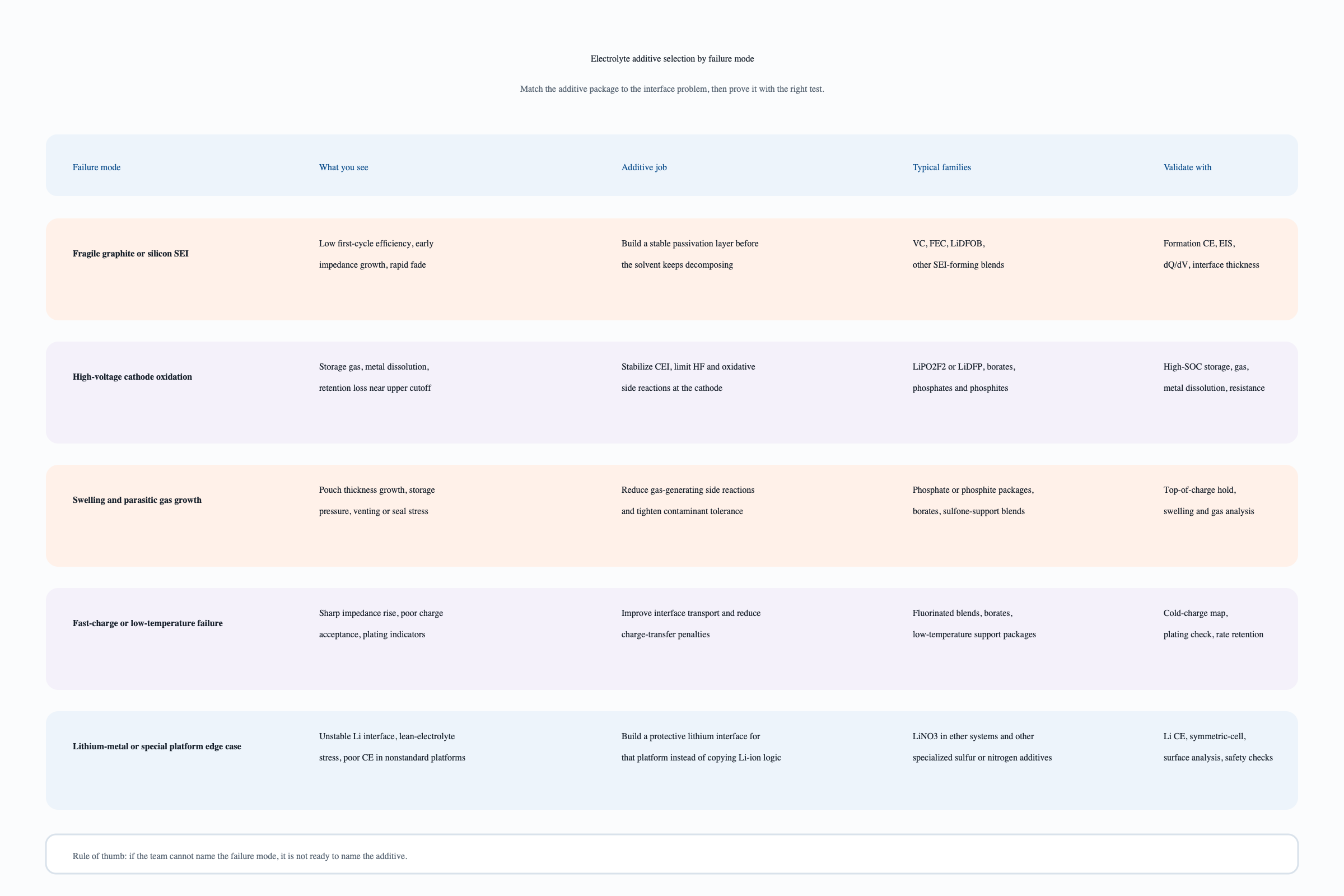

| Failure mode | What you usually see | Main additive job | What to validate |
|---|---|---|---|
| Fragile graphite or silicon SEI | Low first-cycle efficiency, rising impedance, early cycle fade | Build a stable passivation layer before solvent keeps decomposing | Formation CE, EIS, dQ/dV, post-formation interface condition |
| High-voltage cathode oxidation | Storage gas, metal dissolution, poor retention near upper cutoff | Stabilize CEI and reduce oxidative side reactions | High-SOC storage, gas growth, transition-metal analysis, resistance drift |
| Pouch swelling or parasitic gas | Thickness growth, storage pressure, venting risk | Reduce gas-generating side reactions and contaminant sensitivity | Top-of-charge hold, swelling, gas analysis, moisture sensitivity |
| Cold-charge or fast-charge failure | Sharp impedance rise, lithium inventory loss, plating signs | Improve interface transport and reduce charge-transfer penalties | Sub-zero charge map, high-rate charge retention, plating checks |
| Lithium-metal edge case | Unstable Li interface, poor CE, short life under lean electrolyte | Create a protective lithium-metal interface for that platform | Li CE, symmetric-cell testing, surface analysis, special safety checks |
Where the common additive families fit, and where they do not
SEI-forming additives for graphite and silicon blends
The most common additive conversation starts at the anode. When a graphite or silicon-containing electrode loses too much lithium during formation, builds resistance too quickly, or struggles to keep an intact interphase during cycling, the additive package usually needs to help form a stronger SEI. This is why names like VC, FEC, and LiDFOB appear so often. Their job is to influence the way reduction products build on the anode surface before the solvent keeps consuming lithium and impedance budget.
The main mistake is treating those additives as interchangeable. They are not. A graphite-only cell, a silicon-oxide blend, and a higher-silicon anode do not ask the interface to behave in the same way. Silicon systems in particular need an SEI that survives repeated expansion and contraction rather than only looking good after the first few cycles. That is why additive screening should follow the same logic as the broader silicon anode design problem, not sit outside it.
High-voltage and nickel-rich cells need CEI control, not just more conductivity
Once the cathode voltage rises, the additive problem changes. The main risk is no longer only graphite-side reduction. You also need the electrolyte to resist oxidation at the cathode surface, limit transition-metal dissolution, reduce acid attack, and control storage gas. This is where fluorophosphate, phosphate, phosphite, and borate-containing packages are usually discussed. Their real job is to keep the cathode-electrolyte interface from turning the top of charge into gas, heat, corrosion, and resistance growth.
That matters for both engineering and purchasing decisions. A formulation that looks fine in room-temperature cycling can still fail a hold at high state of charge. If the target cell is nickel-rich, high-voltage, or expected to store hot and full, ask whether the additive package was validated for that exact window. If not, the safer route is often a matched formulation rather than assembling a recipe from isolated components.
Gas suppression is a chemistry problem that becomes a packaging problem fast
Gas generation sounds academic until a pouch cell changes thickness, a formation lot gets flagged, or a storage test starts pushing the pack team into mechanical redesign. At that point the additive package is no longer only a chemistry line item. It becomes part of enclosure design, shipping safety, lot stability, and pilot-line scrap rate. Additives can help because they reduce the side reactions that create gas during formation, high-voltage storage, or contaminant exposure, but only if the rest of the electrolyte system is clean enough to let them work.
That is why gas-suppression claims should be proven in the same format and storage window that matter to the program. Coin-cell retention is not enough. If swelling matters, test top-of-charge storage, thickness growth, gas evolution where possible, and raw-material purity. Xnergy’s high-purity electrolyte component supply is relevant here because additive quality only matters if the contaminant burden is under control too.
Fast charge and low temperature often expose the same interface weakness
Fast charging and cold charging are often treated as different development tracks, but at the interface they overlap. Both punish slow de-solvation, high charge-transfer resistance, and weak lithium acceptance at the anode surface. That is why some additive packages can improve both, and why a cell that is marginal in winter often becomes a poor fast-charge candidate as well.
Still, additives do not rescue a weak cell architecture by themselves. They can support interface kinetics, but they cannot erase the effects of overloaded electrodes, the wrong graphite, poor porosity, or inadequate thermal control. Additive decisions should therefore stay connected to the larger fast-charging battery design and cold-weather validation framework. If those upstream choices are wrong, the additive package becomes a bandage rather than a solution.
Do not copy lithium-metal additive logic into ordinary carbonate Li-ion cells
Some additive names travel from lithium-ion papers into lithium-metal or sulfur literature, but the platform logic is different. Lithium-metal, gel, quasi-solid, and other high-specific-energy edge cases operate with different interfacial stresses, different solvents, and often different salt systems. A nitrate-based or lithium-metal-focused additive that makes sense in that environment should not be treated as a universal answer for a standard carbonate lithium-ion cell.
If your roadmap is moving into gel or quasi-solid systems or toward lithium-metal batteries, keep that additive work on its own track. The same is true for sulfur systems. A platform change is not a minor additive tweak. It is a different electrolyte problem.
How to validate an additive package before locking the BOM
A good additive program is narrower than most teams expect. It does not start by mixing every famous additive together. It starts by freezing the cell context and screening the smallest number of variables needed to test a real mechanism.
- Name the failure mode clearly. Is the problem first-cycle loss, gas growth, high-voltage retention, cold-charge resistance, or plating risk?
- Freeze the cell context. Hold cathode loading, anode type, N/P ratio, solvent base, formation protocol, voltage window, and temperature range constant during the screen.
- Screen one additive job at a time. Test SEI-forming, CEI-forming, or gas-suppression packages in small structured sets instead of building an unreadable recipe matrix.
- Use the right diagnostics. Coulombic efficiency, EIS, dQ/dV, storage gas, swelling, and charge maps often tell you more than cycle count alone.
- Check the tradeoff, not only the win. An additive that helps room-temperature retention can still hurt low-temperature power, increase impedance, or complicate safety handling.
- Promote only proven packages. Once the chemistry survives the intended use window, move it into custom electrodes, prototype cells, or pilot lots before calling it the solution.
This is where procurement needs to stay close to engineering. Buying a bottle labeled VC, FEC, or LiPO2F2 is not the same thing as locking a manufacturable electrolyte package. Purity, packaging, traceability, moisture control, compatibility with the rest of the electrolyte, and handoff into custom electrodes or prototypes all matter. That is why the additive decision fits naturally inside Xnergy’s one-stop materials and cell-development model rather than as a standalone raw-material purchase.
When to buy a matched formulation instead of isolated additives
If the team is still exploring first-pass mechanisms, in-house blending can be useful. It helps isolate which interface lever matters. But once the project moves toward customer-facing samples, custom electrodes, full cells, or pilot manufacturing, a matched formulation is usually the more defensible choice.
Ask for a matched formulation when most of these statements are true:
- you need the additive package to work across a full bill of materials rather than one half-cell experiment;
- the cell must balance SEI control, high-voltage stability, gas suppression, and charge acceptance at the same time;
- traceability, packaging, purity, and shipping support matter as much as the additive identity itself;
- the work is already moving toward prototype cells, custom electrodes, or pilot-scale validation.
Build the whole electrolyte system
Need a matched additive and electrolyte package?
Send Xnergy your cathode and anode chemistry, voltage window, charge-rate target, temperature range, gas or swelling limit, and prototype timeline. We can support additive selection, matched formulations, custom electrodes, prototypes, and pilot manufacturing from one US-based battery materials partner.
Frequently asked questions
What is an electrolyte additive in a lithium-ion battery?
An electrolyte additive is a low-dose chemical added to the base salt-and-solvent electrolyte to control a specific failure mode such as unstable SEI, gas growth, high-voltage oxidation, low-temperature resistance, or fast-charge plating risk.
Which electrolyte additives are most common?
Common names include VC, FEC, LiDFOB, LiPO2F2 or LiDFP, borates, and phosphate or phosphite packages. The right one depends on the anode, cathode voltage, solvent system, and validation target.
Are FEC and VC interchangeable?
No. Both are often used as SEI-forming additives, but they do not behave the same way across graphite-only, silicon-containing, and high-voltage systems. Treat them as different tools, not as universal substitutes.
Can additives fix lithium plating by themselves?
Usually not. Additives can support interface transport and reduce side reactions, but plating also depends on electrode design, porosity, graphite properties, temperature, current, and thermal management.
When does a high-voltage cathode need a different additive package?
As soon as cathode voltage, nickel content, or storage state of charge push the electrolyte harder than a standard room-temperature graphite cell would. High-voltage cells usually need stronger CEI control and gas management.
When should I buy a matched formulation instead of separate additives?
When the project is moving past early screening and into custom electrodes, prototype cells, customer samples, or pilot manufacturing. At that point the additive package should be validated as part of the full electrolyte system, not as an isolated ingredient.
