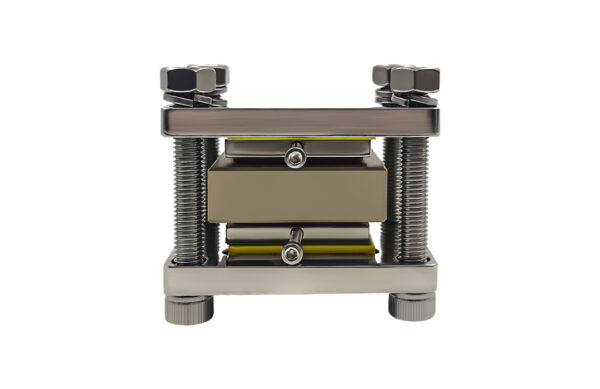

GT05 square solid-state battery test cell with PEEK structure for laboratory research
Square Battery Test Mold XN-GT05
Square Battery Test Mold XN-GT05
Square Battery Test Mold XN-GT05
Square Battery Test Mold XN-GT05
Square Battery Test Mold XN-GT05
Square Battery Test Mold XN-GT05
  1. GT05 square solid-state battery test cell with PEEK structure for laboratory research
  2. Square Battery Test Mold XN-GT05
  3. Square Battery Test Mold XN-GT05
  4. Square Battery Test Mold XN-GT05
  5. Square Battery Test Mold XN-GT05
  6. Square Battery Test Mold XN-GT05
  7. Square Battery Test Mold XN-GT05

Square Battery Test Mold XN-GT05

SKU: XN-GT05

$471.00

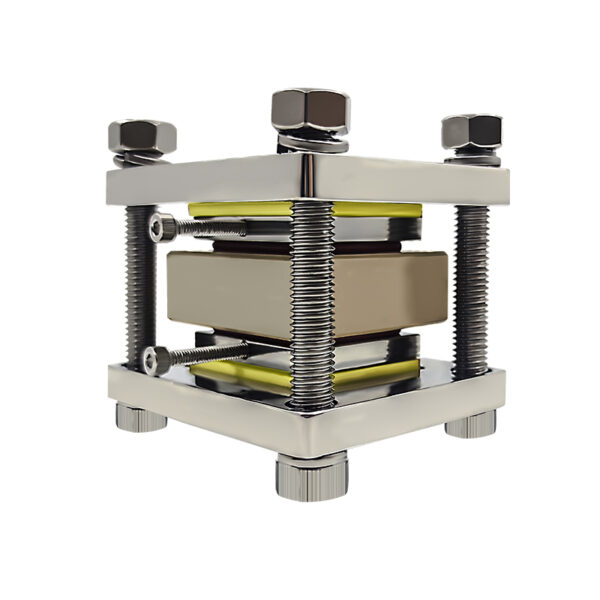

Square Battery Test Mold (XN-GT05) — a square-form battery test mold with a defined 30 × 40 mm pressing area for square (prismatic) battery samples. ≤250 °C operating temperature, 65 mm assembly height, ≤800 MPa working pressure. Built from a stainless steel frame and a PEEK insulating structure, with polished electrode posts. The pressing area can be modified and the frame raised on request.

Need a bulk order? Request a competitive quote today!

Square Battery Test Mold – XN-GT05

Mold Type: Square Battery Test Mold
Product Code: XN-GT05
Brand: Xnergy

Product Introduction

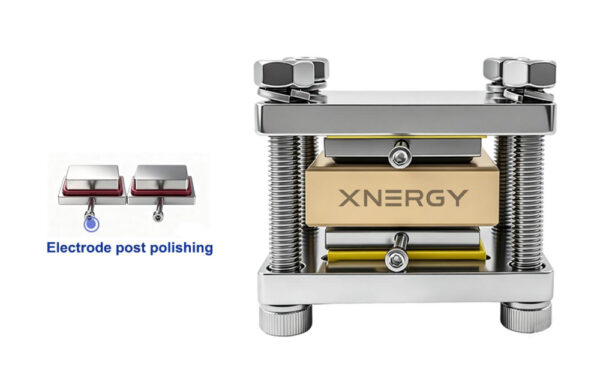

The XN-GT05 is a square battery test mold built for square (prismatic) battery samples, with a defined 30 × 40 mm pressing area. It uses a stainless steel frame and a PEEK insulating structure, operates at up to ≤250 °C, and is rated to ≤800 MPa maximum working pressure. The electrode posts are polished.

Selected Materials

Stainless steel · PEEK

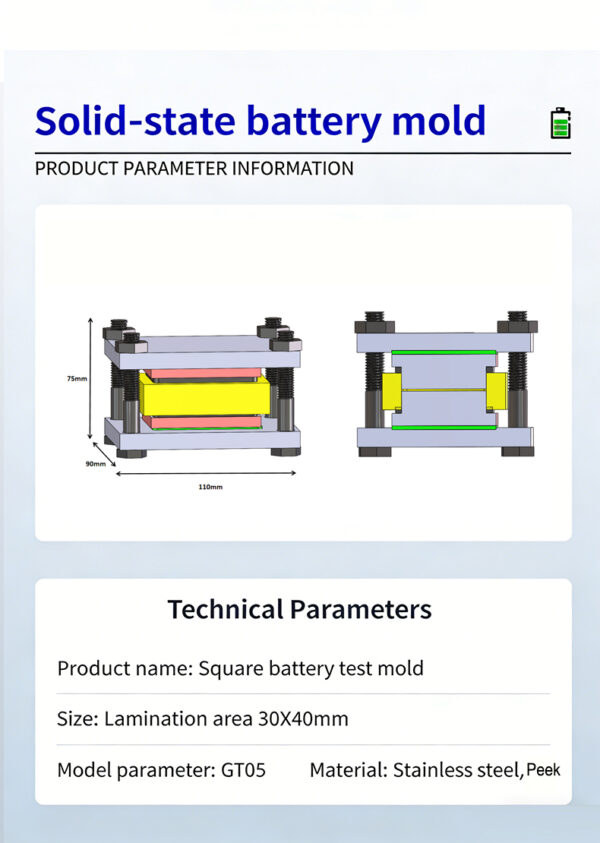

Specification

Parameter Specification
Model XN-GT05
Operating Temperature ≤250 °C
Assembly Height 65 mm
Pressing Area 30 × 40 mm
Material Stainless Steel, PEEK
Maximum Working Pressure ≤800 MPa

Application Areas

• New Energy
– Lithium Battery Research
– Research Projects
– Electrochemistry
– Mold Customization
– Solid-State Battery

Customization

Customizable as required — the pressing area can be modified and the frame can be raised at no extra cost.

Note: For solid-state cell assembly, see the XN-GT01 and XN-GT02 assembly molds. For the high-pressure version, see XN-GT03, and for three-electrode testing, the XN-GT04. Browse the full range under Battery Molds.
