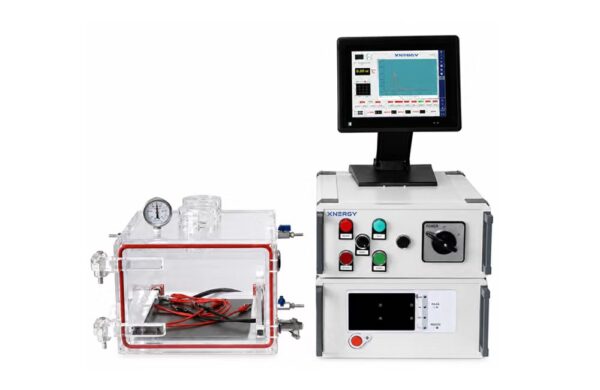

Acrylic-Chamber Joule Ultrafast Heating System XN-HTS-D Series
SKU: XN-HTS-D
XN-HTS-D Series Acrylic-Chamber Joule Ultrafast Heating System pairs a transparent 20 × 30 × 30 cm acrylic chamber with millisecond pulse heating up to 20,000 °C/s. Select the 1532D, 7026D, or 3018D model according to the required temperature range.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Acrylic-Chamber Joule Ultrafast Heating System
Equipment Type: Transparent Acrylic-Chamber Joule Ultrafast Heating System
Product Code: XN-HTS-D
Brand: Xnergy
Product Introduction:
The XN-HTS-D Series is designed around a transparent 20 × 30 × 30 cm acrylic operating chamber. This construction gives the operator direct visual access to the sample position, electrodes, and internal connections during experimental setup and observation.
The system applies controlled current directly through the sample for millisecond-scale heating. Depending on the selected D-Series model, infrared temperature measurement covers up to 3200 °C, while programmable pulse modes, vacuum or compatible protective gas, and synchronized data acquisition support repeatable laboratory studies.
Why Choose the D Series:
Transparent acrylic chamber for direct observation
Compact 20 × 30 × 30 cm operating chamber
Three temperature-range configurations
Heating rate up to 20,000 °C/s
Minimum pulse width of 1 ms
Infrared temperature measurement
Vacuum or compatible protective-gas processing
Temperature, time, segmented, and manual control
Live temperature, current, and voltage display
Configurable one-to-four-channel operation
Emergency-stop and overcurrent protection
Choose Your XN-HTS-D Model:
XN-HTS-1532D — 150–3200 °C Measurement Range
The broadest D-Series measurement range, with a maximum specified temperature of 3000 °C.
XN-HTS-7026D — 700–2600 °C Measurement Range
A transparent-chamber configuration with a maximum specified temperature of 2600 °C.
XN-HTS-3018D — 300–1800 °C Measurement Range
A transparent-chamber configuration with a maximum specified temperature of 1800 °C.
D-Series Model Comparison:
| Parameter | XN-HTS-1532D | XN-HTS-7026D | XN-HTS-3018D |
|---|---|---|---|
| Temperature Measurement Range | 150–3200 °C | 700–2600 °C | 300–1800 °C |
| Maximum Temperature | 3000 °C | 2600 °C | 1800 °C |
| Temperature Accuracy | ±5% | ±5% | ±5% |
| Temperature Repeatability | ±3% | ±3% | ±3% |
| Chamber | Transparent acrylic, 20 × 30 × 30 cm | ||
System Specifications:
| Parameter | Specification |
|---|---|
| DC Power Supply | 32 V / 150 A |
| Rated Power | 4800 W |
| Maximum Heating Rate | 20,000 °C/s |
| Pulse Programming | Minimum pulse width 1 ms; pulse count 1–100 |
| Control Modes | Temperature-time pulse, time pulse, temperature pulse, temperature control, time control, segmented control, and manual control |
| Monitoring and Storage | Real-time temperature, current, and voltage; remote control; data reading and storage |
| Communication | RS485 and USB |
| Vacuum Gauge | −0.1 to 0.1 MPa |
| Vacuum Pump | Dual-stage rotary-vane pump; ultimate pressure 6 × 10⁻² Pa; speed 1400 r/min |
| Atmosphere Connections | One vent port, one vacuum port, and one protective-gas port |
| Working Atmosphere | Vacuum, argon, nitrogen, and other compatible protective gases |
| Heating Stage | Carbon cloth or graphite; adjustable distance 1–5 cm |
| Channel Quantity | Configurable from 1 to 4 |
| Cooling Method | Air cooling |
| Overall Size | 100 × 60 × 60 cm |
| Net Weight | 60 kg |
| Power Supply | Configured according to applicable local electrical standards |
Sample Compatibility:
Thin films and sheet materials
Powders and compacted samples
Blocks and solid specimens
Carbon, battery, catalyst, semiconductor, metal, and composite materials
Note: Select the appropriate D-Series temperature range and process configuration for the sample. For a larger stainless-steel operating chamber, see the XN-HTS-E Stainless-Steel Joule Heating System. Related equipment includes the Flash Joule Heating Device XN-FJH-400V, High-Throughput Joule Heating Device XN-HTG, and Plasma Heating Device XN-PLA.
