Ronbay S760 Polycrystalline NCM613 Cathode Material 1kg

Name: Ronbay S760 Polycrystalline NCM613 Cathode

Material Type: Polycrystalline Lithium Nickel Cobalt Manganese Oxide NCM613

Product Code: S760

Brand: Ronbay

Product Introduction:

The Ronbay S760 is a polycrystalline NCM613 cathode material with Ni / Co / Mn 38.56 / 6.55 / 18.25 wt%. The material is supplied as a black powder with D50 12.80 μm, tap density 2.42 g/cm³, and specific surface area 0.25 m²/g. SEM confirms spherical-type / quasi-spherical secondary-particle morphology, and XRD shows no impurity peaks. The S760 is broadly applicable to a wide range of steel-can, aluminum-can, and polymer lithium-ion battery products.

Key Features:

Polycrystalline NCM613 chemistry — Ni/Co/Mn 38.56/6.55/18.25 wt%
Half-cell capacity ≥ 170 mAh/g at 0.1C, 4.3–3.0 V, 25°C
High tap density 2.42 g/cm³ supports high electrode loading
Particle size distribution — D10 7.41 μm / D50 12.80 μm / D90 21.11 μm
Low specific surface area 0.2503 m²/g
Low moisture content 0.0134 wt%
Low impurity content — Fe 18 ppm, Cu 2 ppm, Na 225 ppm, Ca 19 ppm, Mg 35 ppm
Low magnetic impurities 0.015 ppm
Spherical-type / quasi-spherical secondary-particle morphology (by SEM)
XRD confirms phase purity with no impurity phase peaks
RoHS compliant (EU standards)

Chemical Composition:

Impurities & pH:

Particle Size Distribution (PSD):

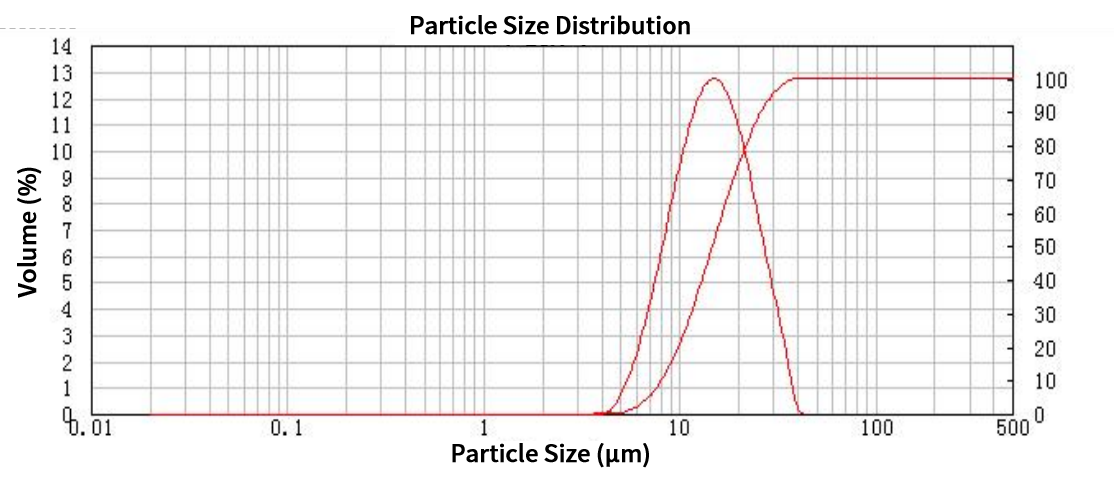

Particle size distribution curve:

Physical Properties:

SEM Morphology:

SEM imaging confirms spherical-type / quasi-spherical secondary-particle morphology composed of densely packed primary particles, characteristic of polycrystalline NCM613.

SEM at low magnification (50 μm scale bar):

SEM at high magnification (10 μm scale bar):

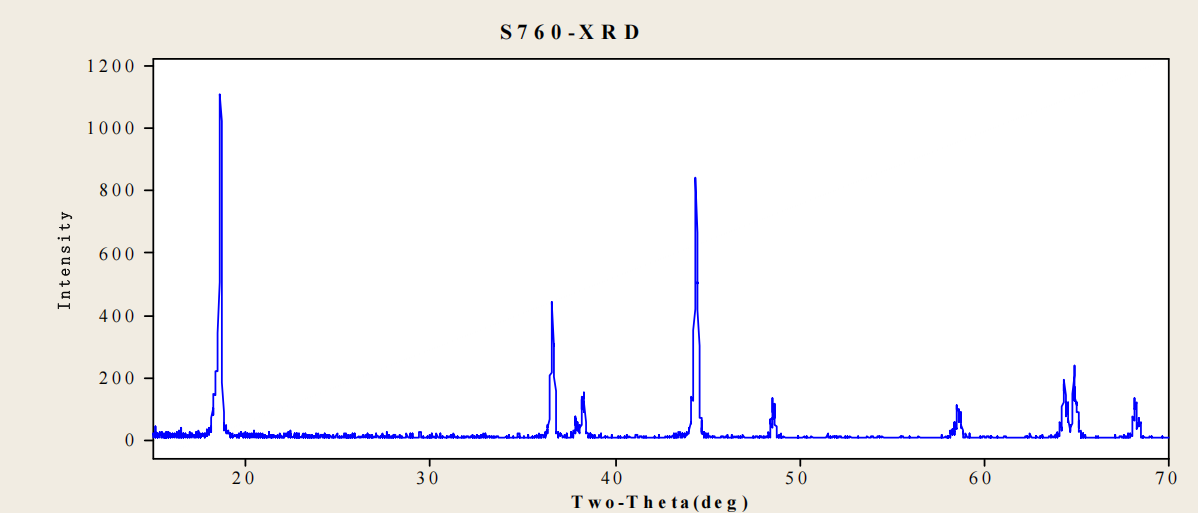

XRD Pattern:

Electrochemical Performance (Half-Cell, 0.1C, 4.3–3.0 V, 25°C):

Values measured by Xnergy. Typical values for reference; not guaranteed unless otherwise specified.

Application Areas:

The Ronbay S760 is broadly applicable to a wide range of steel-can, aluminum-can, and polymer lithium-ion battery products.

Packaging:

Vacuum-sealed in aluminum-laminated film bag, placed in plastic drums. Each drum contains 25.00 kg ± 0.02 kg net weight of material.

Shelf Life:

Under vacuum-sealed packaging, store in a cool, dry place. Shelf life: 1 year.

Handling, Storage & Protection:

Avoid impact and inversion during handling. Store in a clean environment at room temperature, cool and dry. Avoid sunlight, heat, and rain during transportation. Use the material immediately after opening the packaging bag; if not used immediately, reseal and store to prevent moisture absorption.
