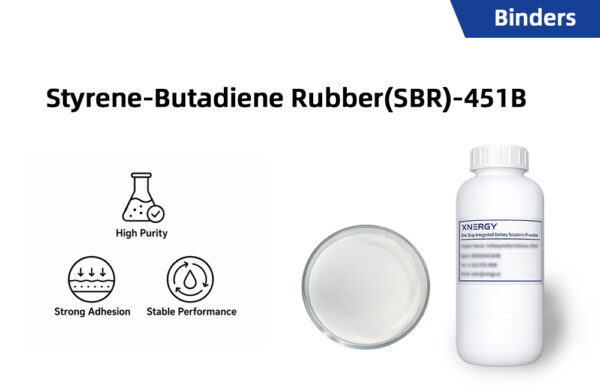

Styrene-Butadiene Rubber(SBR)-451B

Name: ZEON SBR BM-451B Aqueous Anode Binder for High-Performance Lithium-Ion Batteries

Manufacturer: ZEON Corporation (Japan)

Model: ZEON BM-451B

Product Code: XN-BD-SBR451B

Description:

ZEON BM-451B is a premium next-generation aqueous anode binder for lithium-ion batteries — a water-based styrene-butadiene rubber (SBR) latex specifically engineered to address the volumetric-expansion challenge of silicon-containing anode chemistries (Si-C composites, SiOₓ, and Si-rich graphite blends). As a result, BM-451B is the preferred binder choice for high-energy-density lithium-ion cells where conventional SBR binders cannot adequately accommodate the substantial volume change that silicon-based anodes experience during lithiation and delithiation. The defining performance characteristics of BM-451B include high peel strength (ensuring durable electrode-current-collector adhesion under volumetric stress), enhanced cycle performance (maintaining capacity retention through extended cycling of high-silicon anodes), high suppression of electrode expansion (the signature performance feature — actively constraining anode swelling to maintain structural integrity), and excellent process stability (delivering consistent slurry rheology and coating quality across production batches). BM-451B is supplied with tightly controlled specifications: 39.0–41.0 wt% solid content, ≤ 50 mPa·s viscosity, pH 7.0–9.0, and coagulum content ≤ 0.0500 wt% (200-mesh). Furthermore, the 15-month shelf life (longer than the 12-month standard of ZEON BM-430B) supports flexible inventory management for both R&D laboratories and production facilities.

Application:

ZEON BM-451B is designed for high-performance lithium-ion battery anode slurry preparation, including silicon-carbon (Si-C) composite anode formulations where suppression of volumetric expansion is critical, silicon-oxide (SiOₓ) anode formulations for high-energy-density lithium-ion cells, high-silicon-content graphite anodes (5–20 wt% Si blended with graphite), advanced graphite anode formulations requiring tight slurry-quality control, hard-carbon anode formulations for sodium-ion batteries with elevated cycling stability requirements, and academic research into binder-driven volume-suppression mechanisms in next-generation high-energy anodes.

Physical Properties:

Values measured by ZEON Corporation. Typical values for reference; not guaranteed unless otherwise specified.

BM-451B vs BM-430B: Which Should You Choose?

Choose BM-451B for high-energy-density anodes containing silicon, or for production lines requiring tight slurry-quality specifications. Choose BM-430B for standard graphite anodes or for low-temperature coating environments where slurry performance below room temperature is the priority.

Characteristics:

Exceptional suppression of electrode expansion

BM-451B’s defining performance characteristic is its ability to suppress electrode volumetric expansion during lithium intercalation. As a result, this binder is uniquely well-suited to silicon-containing anodes (Si-C composites, SiOₓ, high-silicon graphite blends) where active material volume changes by hundreds of percent during lithiation. The expansion-suppression behavior is achieved through engineered crosslinking and elastomeric chain dynamics that constrain electrode swelling without sacrificing electrode flexibility — a signature ZEON technology not present in standard SBR formulations.

High peel strength for durable electrode adhesion

BM-451B delivers exceptional peel strength between the anode coating and the copper current collector — particularly important for silicon-containing anodes where volumetric stress during cycling drives delamination in poorly bonded electrodes. Therefore, electrodes formulated with BM-451B resist delamination and edge cracking even after extended cycling of high-silicon anode chemistries.

Enhanced cycle performance for next-generation anodes

The BM-451B SBR chemistry is engineered to maintain mechanical integrity under repeated lithium intercalation/deintercalation stress at silicon-anode-relevant strain levels. Consequently, anodes formulated with BM-451B deliver superior capacity retention through extended cycling — making this binder particularly valuable for high-energy-density anode formulations (5–20 wt% Si blends and beyond).

Excellent process stability and tight specifications

BM-451B specifications are tightly controlled — viscosity is constrained to ≤ 50 mPa·s, and coagulum content (200-mesh) is held below 0.0500 wt%. Furthermore, this tighter control enables more consistent batch-to-batch slurry behavior, supporting reproducible coating quality and reduced process-driven variability in production environments.

Aqueous (water-based) chemistry for environmental compliance

BM-451B is supplied as an aqueous latex (water-based formulation), eliminating the need for organic solvents (NMP, DMF) in anode slurry preparation. As a result, this binder supports environmentally compliant manufacturing operations, reduces solvent recovery costs, lowers VOC emissions, and aligns with the industry-wide transition toward water-based electrode coating processes.

Compatible with standard CMC co-binder systems

BM-451B is engineered to work seamlessly with carboxymethyl cellulose (CMC) co-binders in the industry-standard SBR + CMC formulation system. Furthermore, the SBR : CMC ratio can be tuned (typically 1:1 to 2:1 by weight) to match specific anode formulation requirements for peel strength, slurry viscosity, and electrode flexibility — particularly relevant for high-silicon anodes where binder system optimization directly impacts cycle life.

Long 15-month shelf life

BM-451B maintains stable solid content, viscosity, and pH characteristics throughout its 15-month shelf life when stored properly (5–40 °C, dark cool place, away from heat sources). Therefore, this extended shelf life supports flexible R&D and production scheduling without batch-to-batch performance drift, simplifying inventory management compared to shorter-shelf-life binder products.

Industry-standard ZEON quality and consistency

ZEON Corporation is the global market leader in SBR battery binders, supplying major lithium-ion cell manufacturers worldwide. Consequently, BM-451B delivers consistent batch-to-batch performance backed by ZEON’s quality control systems — supporting reliable scale-up from R&D laboratory experiments to industrial production of high-silicon anode lithium-ion cells.

Recommended Use Procedure:

1. Stir the BM-451B latex thoroughly before use to ensure homogeneous distribution of solid content (a stable latex may show minor settling after extended storage). 2. Filter the binder through a fine-mesh filter to remove any aggregates or contamination before adding to slurry. 3. Prepare anode slurry following standard SBR + CMC co-binder protocol — typical formulation for high-silicon anodes: anode active material (94–96 wt%, including Si-C or SiOₓ component), conductive additive (1–2 wt%), CMC (1 wt%), SBR BM-451B (1.5–2.5 wt% on dry basis; higher SBR loading often beneficial for Si-rich anodes due to volumetric stress). 4. Mix the slurry using standard planetary or high-shear mixers, observing recommended mixing time and viscosity targets for the specific anode chemistry. 5. Coat the slurry onto copper current collector foil using standard slot-die or comma-bar coaters. 6. Dry the coated electrode at recommended temperatures (typically 80–120 °C) and roll-press to target porosity, paying particular attention to consistent calendering pressure across the coated area to maximize electrode uniformity. 7. After use, reseal the BM-451B container tightly to maintain shelf life and prevent moisture loss or contamination.

Packaging & Storage:

ZEON BM-451B is supplied in standard packaging, sealed for shipment and storage. Therefore, store in a dark, cool place at 5 – 40 °C, away from all heat sources including direct sunlight. Shelf life is 15 months from the date of production when the container remains sealed. After opening, reseal tightly between uses and consume within a reasonable time window to maintain performance characteristics. Stir and filter the binder before each use to ensure homogeneous distribution and remove any potential aggregates.

Safety:

For research and industrial laboratory use only. Always wear appropriate PPE (safety glasses, gloves, lab coat) when handling SBR binder, slurry, or coated electrodes. Although BM-451B is a water-based aqueous latex (low hazard compared to organic-solvent binders), avoid prolonged skin contact and inhalation of dried binder dust. Use in a well-ventilated area when mixing slurries or drying coated electrodes. Do not store near oxidizers, strong acids, or strong bases. Refer to the ZEON Material Safety Data Sheet (MSDS) for complete safety and handling information.

Note: Specifications listed above are typical values provided by ZEON Corporation and are for reference only. Actual performance depends on the specific anode active material, slurry formulation, coating process parameters, and downstream cell manufacturing conditions — consult published literature for guidance on optimal binder-formulation protocols for specific anode chemistries (particularly silicon-containing systems where volumetric expansion management is critical). For researchers exploring complete lithium-ion battery binder workflows, see also Xnergy’s related products: ZEON SBR BM-430B (standard-grade SBR for graphite anodes), Carboxymethyl Cellulose (CMC) BM-500HC (high-grade CMC co-binder for SBR systems), Carboxymethyl Cellulose (CMC) BM-350HC, Polyvinylidene Fluoride (PVDF) 5130 (cathode binder for NMP-based formulations), Polyvinylidene Fluoride (PVDF) 900, PTFE Binder Powder, and the full Binders category. For complete electrode formulation systems, see also Anode Materials (including silicon-carbon and silicon-oxide anodes), Cathode Materials, Conductive Additives, and Current Collectors.
