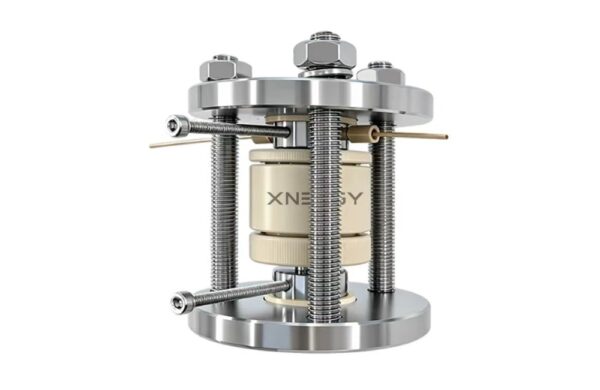

Ventilated ceramic solid-state battery mold XN-GT02-TQTC

Ventilated Ceramic Solid-State Battery Mold XN-GT02-TQTC

SKU: XN-GT02-TQTC

Free Shipping$509.00

Ventilated Ceramic Solid-State Battery Mold XN-GT02-TQTC combines a ventilated gas-path design with a ceramic insulating structure for solid-state battery and in-situ electrochemical research. Documented specifications include a 40 mm sleeve, 100 mm assembly height, Φ10 mm inner diameter and maximum working pressure of ≤800 MPa. Materials include stainless steel, PA, ceramic and Grade 4 steel.

Need a custom inner diameter or bulk order? Request a competitive quote today!

Ventilated Ceramic Solid-State Battery Mold XN-GT02-TQTC

Mold Type: Ventilated Ceramic Solid-State Battery Mold
Product Code: XN-GT02-TQTC
Brand: Xnergy

Product Introduction

The XN-GT02-TQTC is the ceramic version of Xnergy’s ventilated GT02 solid-state battery mold. Its integrated gas-path structure supports controlled gas introduction and post-reaction gas exhaust and collection during in-situ electrochemical studies. The ceramic insulating structure is combined with stainless steel, PA and Grade 4 steel components.

Key Features

  • Integrated ventilation and gas-path design
  • Supports controlled gas injection, exhaust and collection
  • Ceramic insulating structure for solid-state battery research
  • High-pressure design with a documented limit of ≤800 MPa
  • 40 mm sleeve diameter and 100 mm assembly height
  • Default Φ10 mm inner diameter with bulk customization available

Selected Materials

Stainless steel · PA · Ceramic · Grade 4 steel

Technical Specifications

Parameter Specification
Model XN-GT02-TQTC
Sleeve Diameter 40 mm
Assembly Height 100 mm
Inner Diameter Φ10 mm; other sizes customizable for bulk orders
Material Stainless steel, PA, ceramic, Grade 4 steel
Maximum Working Pressure ≤800 MPa

Applications

  • Solid-state battery mold testing
  • In-situ electrochemical research
  • Controlled-atmosphere material studies
  • Gas-evolution collection and analysis setups
  • Oxide and polymer electrolyte research

Customization

The documented inner diameter is Φ10 mm. Other inner diameters are available for bulk orders; contact Xnergy to confirm the required dimensions.

Note: For the standard ventilated version, see XN-GT02-TQ. Browse the Solid-State Battery Molds category for related research molds.
