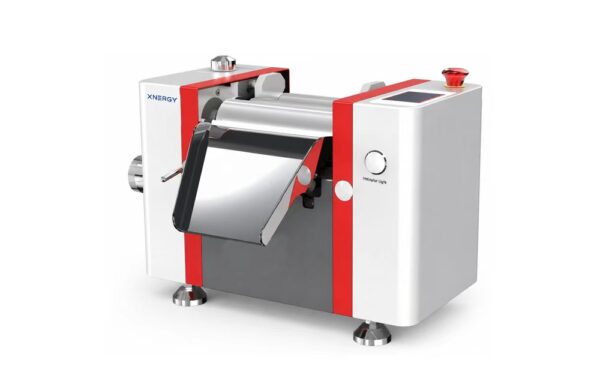

Ceramic Three Roll Mill XN-50
SKU: XN-50
Ceramic Three Roll Mill XN-50 is a desktop laboratory mill with an interactive control interface for precise grinding, refining, and dispersion of viscous slurries and pastes.
It features 50 × 150 mm alumina ceramic rollers, a 1:2:4 roller-speed ratio, a 1–140 μm adjustable gap, real-time speed and gap display, and a processing capacity of 0.02–5 L/h.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Ceramic Three Roll Mill
Equipment Type: Desktop Laboratory Ceramic Three Roll Mill
Product Code: XN-50
Brand: Xnergy
Product Introduction:
The XN-50 Ceramic Three Roll Mill is a desktop laboratory system for grinding, refining, and dispersion of viscous materials. Material passes between three horizontal alumina ceramic rollers operating at a 1:2:4 speed ratio. Differential roller speeds generate squeezing and shear forces that break down agglomerates and improve dispersion uniformity.
The interactive control interface displays the current roller speed and gap in real time and provides abnormal-condition prompts. The roller gap is adjusted in 1 μm increments, while an external speed-control knob supports stepless operation from 0 to 500 rpm.
Key Features:
Interactive control interface with speed and gap display
Abnormal-condition prompts
50 × 150 mm alumina ceramic rollers
1:2:4 differential roller-speed ratio
1–140 μm adjustable roller gap with 1 μm adjustment increments
0–500 rpm stepless speed control
External speed-adjustment knob
Emergency-stop, overload, and controller-alarm protection
400 W drive system
Compact desktop configuration
Technical Specifications:
| Parameter | Specification |
|---|---|
| Model | XN-50 |
| Configuration | Desktop type with knob-controlled adjustment |
| Processing Capacity | 0.02–5 L/h |
| Roller Dimensions | 50 × 150 mm |
| Roller Material | Alumina ceramic |
| Roller Speed Ratio | 1:2:4 |
| Speed Range | 0–500 rpm, stepless adjustment |
| Speed Control | External adjustment knob |
| Gap Range | 1–140 μm |
| Gap Adjustment Increment | 1 μm |
| Control Interface | Real-time speed and gap display with abnormal-condition prompts |
| Safety Protection | Emergency stop, overload protection, and controller alarm |
| Power | 400 W |
| Net Weight | Approx. 20 kg |
| Dimensions | 385 × 263 × 276 mm |
| Power Supply | Adaptable to local electrical standards |
Working Principle:
Material enters the inlet gap between the first and second rollers. Squeezing and shear forces generated by the differential roller speeds reduce agglomerates and distribute the material. It then passes through the outlet gap between the second and third rollers for further refining before discharge.
Standard Accessories:
POM baffles × 2
PVC feeding paddles × 2
Material collection tray × 1
Splash guard × 1
Cleaning knob × 1
Alloy-steel blades × 2
Resin blades × 2
Discharge scraper holder × 1
User manual × 1
Operating procedure document × 1
Typical Applications:
Battery slurry and electrode-material research
Ceramic pastes and functional materials
Conductive pastes and electronic materials
Pigments, inks, and coatings
Adhesives and polymer formulations
Other viscous materials requiring grinding and dispersion
Note: Actual grinding and dispersion results depend on feed-material properties, viscosity, initial particle size, roller-gap settings, roller-speed relationships, and the number of passes. Confirm material compatibility and process requirements before ordering. Related equipment includes the XN-50B Ceramic Three Roll Mill, XN-50EP Ceramic Three Roll Mill, XN-VSM Ultrafine Vertical Sand Mill, XN-MS Nano Sand Mill, and XN-LSM Laboratory Nano Sand Mill.
