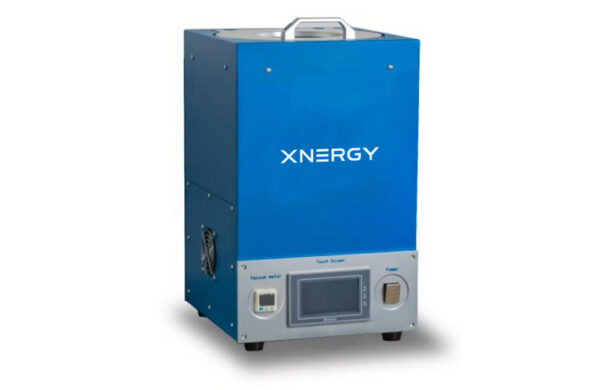

Planetary Centrifugal Vacuum Mixer XN-PVMC-150mL
SKU: XN-PVMC-150mL
Planetary Centrifugal Vacuum Mixer XN-PVMC-150mL is a compact benchtop bladeless mixing and defoaming system that uses planetary rotation and revolution under vacuum to homogenize and degas slurries, powders, and high-viscosity materials. Without contact between mixing blades and material, contamination is minimized.
The unit features dual 150 mL containers (10 / 30 / 50 / 100 mL optional), revolution speed up to 2000 rpm with infinitely variable adjustment from 1 rpm, vacuum down to −98 kPa via external pump, PLC dual-loop control with touchscreen interface, six parameter memory groups, three-segment programmable timing, and dual counterweight balancing.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Planetary Centrifugal Vacuum Mixer XN-PVMC-150mL
Equipment Type: Compact Bladeless Planetary Centrifugal Vacuum Mixer / Defoamer
Model: XN-PVMC-150mL
Brand: Xnergy
Product Introduction:
Planetary Centrifugal Vacuum Mixer XN-PVMC-150mL is a compact benchtop bladeless mixing and defoaming system that combines planetary rotation, revolution, and vacuum in a single sealed chamber. Centrifugal force from container rotation, combined with convection induced by revolution, homogenizes the material — while vacuum down to −98 kPa via external pump removes sub-micron bubbles. Because no mixing blade contacts the material, contamination is minimized. The unit is designed for small-batch mixing and degassing of battery slurries and powders, carbon nanotubes, nano-powders, conductive ceramics, oxide powders, and metal powders, and is supplied with dual 150 mL containers as standard.
Key Features:
Bladeless planetary-centrifugal mixing — no contact between mixing element and material, minimizing contamination
Compact benchtop footprint (43 kg) suitable for small-batch laboratory and R&D use
Dual-container, dual-center mixing and defoaming layout
400 W servo motor with infinitely variable revolution speed from 1 to 2000 rpm
Vacuum down to −98 kPa via external vacuum pump
Strong cooling airflow with rapid heat dissipation, low noise, high-speed operation
Smart viewing window for clear observation of the mixing chamber
Touchscreen HMI for convenient and safe operation
Suitable for liquid and powder materials including battery slurries, carbon nanotubes, nano-powders, conductive ceramics, and oxide/metal powders
Technical Specifications:
| Parameter | Specification |
|---|---|
| Power Supply | Configurable according to local electrical standards |
| Total Power | 0.5 kW |
| Drive Motor | 400 W servo motor |
| Working Principle | Planetary gravity-driven mixing/defoaming (rotation : revolution = 0.5 : 1, fixed) |
| Revolution Speed | 1 – 2000 rpm (infinitely variable, 1 rpm precision) |
| Rotation Speed | 0.5 × revolution speed |
| Maximum Speed | 2000 rpm |
| Standard Container | 150 mL × 2 (Φ60 × H75 mm) |
| Optional Container Sizes | 10 / 30 / 50 / 100 mL |
| Maximum Capacity | 150 g × 2 |
| Maximum Viscosity | 300,000 cps |
| Vacuum System | External vacuum pump |
| Vacuum Pressure | −98 kPa (0.1 kPa precision, adjustable with vacuum delay) |
| Parameter Memory | 6 groups |
| Balancing | Dual-side counterweight adjustment |
| Timing | 0 – 600 s, 3 segments (1 s precision, max 200 s/segment) |
| Control System | Dual-loop PLC, Chinese touchscreen HMI |
| Lubrication | Cup-sleeve splash-proof structure, passive lubrication |
| Transmission | Gear drive |
| Dimensions (W × D × H) | 300 × 370 × 490 mm |
| Weight | 43 kg |
Safety & Alarm Functions:
Top-lid-not-closed alarm
Overload alarm
Automatic stop on fault
Automatic lid-locking during operation
Application Areas:
XN-PVMC-150mL is suitable for:
Small-batch lithium-ion battery slurry and powder mixing and defoaming
Carbon nanotube and nano-powder dispersion
Conductive ceramic, oxide, and metal powder mixing
High-viscosity material homogenization (up to 300,000 cps)
R&D workflows requiring contamination-free, bubble-free sample preparation in small quantities
Maintenance:
Clean the equipment regularly with a soft cloth lightly moistened with alcohol
Lubricate moving parts periodically to ensure smooth operation
If the equipment is not used for an extended period, clean the moving surfaces and apply a protective anti-rust coating
Periodically inspect screws, nuts, pins, and other fasteners to prevent loosening
Safety Notes:
Do not place hands or other body parts near moving components or work-zone areas during operation
Operation should be performed by a single trained operator to avoid accidental injury
Disassembly should only be performed by qualified technicians
Specifications are provided for reference and may be adjusted to suit specific process requirements. Custom container sizes are available on request.
Note: Specifications listed above are typical and for reference only. Actual mixing and defoaming performance depend on the specific material formulation, viscosity, batch size, and process parameters. XN-PVMC-300mL handles dual 300 mL × 2 batches with built-in vacuum (no external pump required) and is well suited to high-viscosity slurries up to 300,000 cps — including pilot-scale battery electrode slurry preparation where bubble-free output is critical before coating. Slurries prepared here can feed directly into the Automatic Film Coater XN-VC-300 or the higher-precision Slot-Die Coating System XN-SDC. For smaller-batch sample work, see the compact XN-PVMC-150mL. For blade-based mixing of standard electrode slurries, see the Planetary Vacuum Mixer XN-PVM-500mL. Compatible materials: Cathode Materials, Anode Materials.
