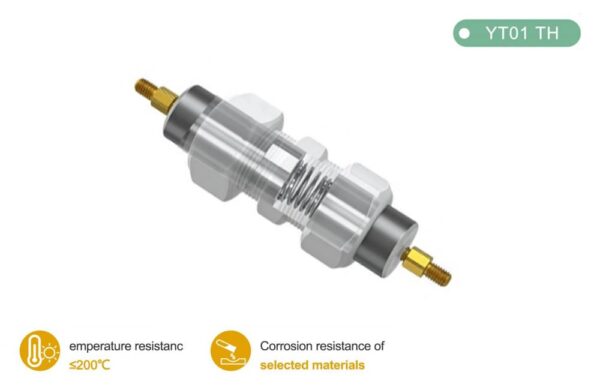

Swagelok Two-Electrode Cell XN-YT01-TH

Swagelok Two-Electrode Cell XN-YT01-TH

Cell Type: Swagelok Two-Electrode Cell, TH Version
Product Code: XN-YT01-TH
Brand: Xnergy

Product Introduction

The XN-YT01-TH is the TH version of Xnergy’s Swagelok-type two-electrode cell for electrochemical, battery-material and solid-state battery research. Its PTFE and copper construction supports selected corrosion-resistant electrode materials and a range of electrode diameters for laboratory test configurations.

Core Features

• Dedicated TH version, separated from the YT01 CG version
• Ø10 / 12 / 14 / 16 / 18 / 20 mm electrode diameters
• Operating temperature up to ≤200 °C
• Maximum working pressure up to ≤10 MPa
• PTFE and copper product materials
• Titanium alloy, pure titanium and high-purity molybdenum electrode options

Technical Specifications

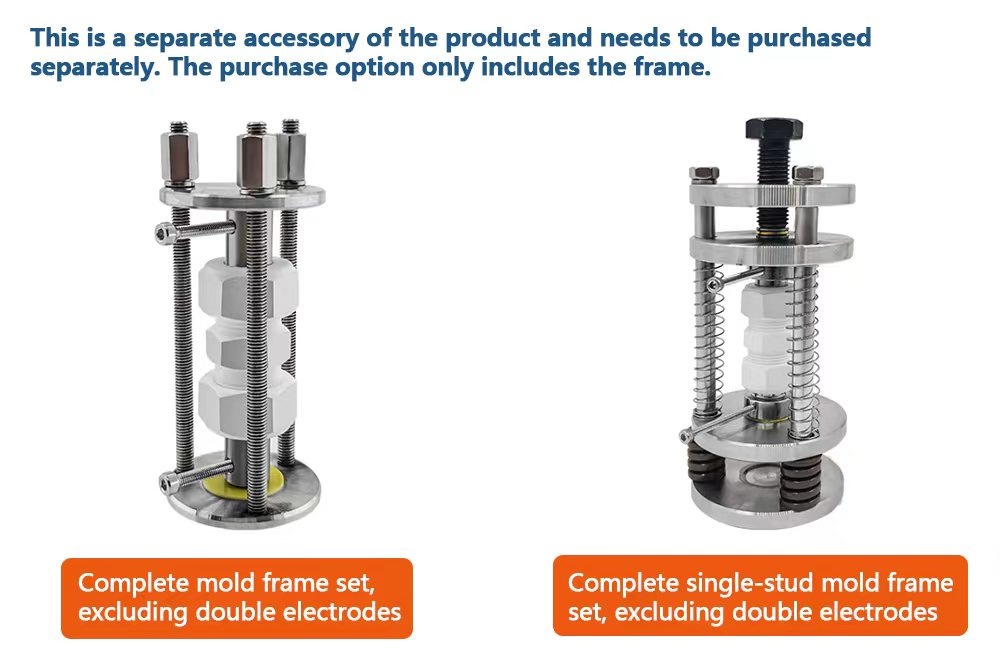

Optional Frames Sold Separately

Two optional standalone frame accessories are available separately: a complete mold frame set and a complete single-stud mold frame set. Each frame purchase option includes the frame only and excludes the double-electrode assembly.

Applications

• Electrochemical two-electrode testing
• Lithium battery and solid-state battery research
• Electrode-material evaluation
• Laboratory cell development and comparative testing

Note: Electrode diameter and electrode material should be confirmed when requesting a quotation. The two frame configurations are separate accessories; a frame purchase includes the selected frame only and does not include the double-electrode assembly. Compare the XN-YT01-CG Swagelok Two-Electrode Cell. For a three-electrode version, see the XN-YT02. Browse the Swagelok-Type Cells category.
