Ceramic High-Pressure Solid-State Battery Mold XN-GT03-TC
SKU: XN-GT03-TC
Ceramic High-Pressure Solid-State Battery Mold XN-GT03-TC is the ceramic version of the high-pressure XN-GT03 mold, adding a zirconia/ceramic inner liner. Like the XN-GT03, it uses a central-screw pressure system for even force distribution and a high-strength compression spring for constant pressure.
Sleeve diameter 40 mm, assembly height 200 mm, inner diameter Φ10 mm (customizable for large orders), materials stainless steel / PA / ceramic / Grade 4 steel, working pressure ≤800 MPa.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Ceramic High-Pressure Solid-State Battery Mold XN-GT03-TC
Mold Type: Ceramic High-Pressure Solid-State Battery Assembly Mold
Product Code: XN-GT03-TC
Brand: Xnergy
Product Introduction:
The XN-GT03-TC is the ceramic version of the high-pressure XN-GT03 solid-state battery assembly mold, adding a zirconia/ceramic inner liner. Like the XN-GT03, it is focused on accuracy and stability: it uses a central-screw pressure system instead of a three-jaw nut design, distributing force evenly across the fixture and eliminating problems from uneven torque and pressure, and it is equipped with a high-strength compression spring that maintains constant pressure throughout testing. Sleeve diameter 40 mm, assembly height 200 mm, inner diameter Φ10 mm (customizable for large orders), working pressure ≤800 MPa.
Key Features:
Higher accuracy and stability

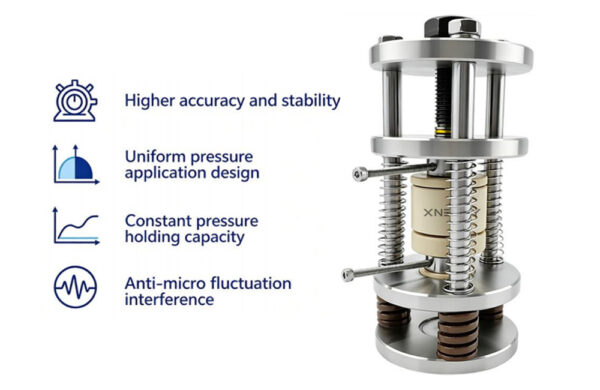

Uniform pressure application design — a central screw distributes force evenly across the fixture
Constant pressure holding capacity — a high-strength compression spring maintains constant pressure during testing
Anti-micro fluctuation interference for high-precision testing
Selected Materials:
Zirconia/ceramic inner liner — corrosion-resistant, with a smooth surface for easy demolding and reduced powder sticking
Dual sealing-ring design — dual sealing protects the experimental environment
Grade 4 special-steel electrode post — good conductivity and high material strength
PA insulating sleeve
Specification:
| Parameter | Specification |
|---|---|
| Product Model | XN-GT03-TC |
| Sleeve Diameter | 40 mm |
| Assembly Height | 200 mm |
| Inner Diameter | Φ10 mm (customizable) |
| Material | Stainless steel, PA, ceramic, Grade 4 steel |
| Working Pressure | ≤ 800 MPa |
Package Contents:
Frame × 1
Insulating sleeve × 1
Hand-wrenching part × 2
Electrode column (post) × 2
Ceramic ring × 1
Silicone sealing ring (accessory)
Assembly Steps:
1. Check the accessories — frame (× 1), insulating sleeve (× 1), hand-wrenching parts (× 2), electrode columns (× 2), ceramic ring (× 1), and silicone sealing ring
2. Assemble the mold sealing ring as shown
3. Align the electrode with the inner hole of the liner, hold the electrode post, and rotate to assemble
4. Hold the electrode post by hand and gently turn the hand-wrenching part to assemble
5. Place the assembled inner liner into the frame
6. Rotate the top screw to press the inner liner — assembly of the XN-GT03-TC mold is complete
Customization:
Default electrode post Φ10 mm; other sizes customizable on request
Inner diameter customizable for large orders
For customization, please contact customer service
