Microscopic Test Mold XN-GT08

SKU: XN-GT08

$268.00

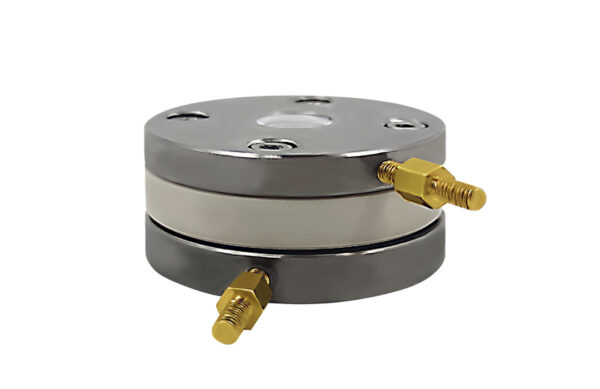

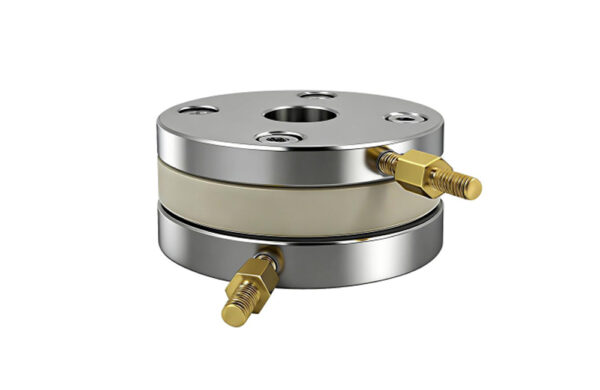

Microscopic Test Mold (XN-GT08) — a low-profile microscopic test mold (20 mm assembly height) for in-situ observation of battery samples during testing. 40 mm sleeve diameter, Φ6–20 mm inner diameter, ≤5 MPa working pressure. Built from stainless steel, PEEK and Grade 4 steel. Outer diameter, height and hole-position diameters are all customizable.

Need a bulk order? Request a competitive quote today!

Microscopic Test Mold XN-GT08

Mold Type: Microscopic Test Mold
Product Code: XN-GT08
Brand: Xnergy

Product Introduction

The XN-GT08 is a microscopic test mold with a low-profile design (20 mm assembly height) for in-situ microscopic observation of battery samples during testing. Its inner diameter is adjustable over Φ6–20 mm and it is rated to ≤5 MPa working pressure.

Selected Materials

Stainless steel · PEEK · Grade 4 steel

Specification

Parameter Specification
Model XN-GT08
Sleeve Diameter 40 mm
Assembly Height 20 mm
Inner Diameter Φ6–20 mm
Material Stainless Steel, PEEK, Grade 4 Steel
Maximum Working Pressure ≤5 MPa

Package Contents

• Insulating gasket ×1
– Electrode ×2
– Screw ×8
– Spring ×1
– Sealing ring ×2
– Spacer ×1

Application Areas

• New Energy
– Lithium Battery Research
– Research Projects
– Electrochemistry
– Mold Customization
– Solid-State Battery

Customization

Customizable upon request — the outer diameter (40 mm), the height, and the hole-position diameters can all be customized.
